Scan code: LN94094 Manufacturer code: ACFAN00125A

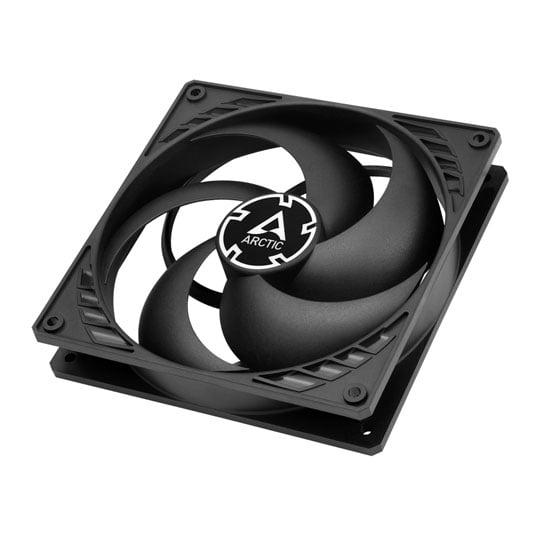

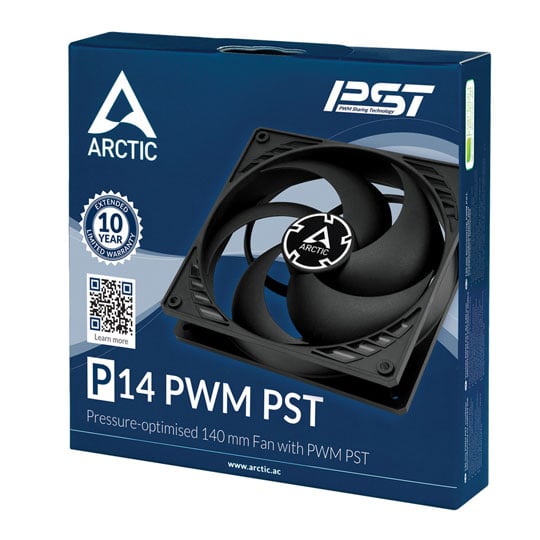

Arctic P14 Static Pressure 140mm PWM PST Fan

140mm Arctic P14 PWM PST, 5 Blade, Static Pressure Fan, 1700rpm, 72.8CFM, Fluid Dynamic Bearing, Black, 4-pin

Thumbnail 1 : Arctic P14 Static Pressure 140mm PWM PST Fan Thumbnail 2 : Arctic P14 Static Pressure 140mm PWM PST Fan Thumbnail 3 : Arctic P14 Static Pressure 140mm PWM PST Fan Thumbnail 4 : Arctic P14 Static Pressure 140mm PWM PST Fan
Scan code: LN94094 Manufacturer code: ACFAN00125A
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Feb to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview Optimised for Static Pressure
During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.

More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.

200 to 1700 RPM Regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

0 dB Mode
The P14 PWM PST is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.

High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Installation
Push warm air out of the case, Pull cool air into your case Features • Optimised for static pressure
• Ideal choice on heatsinks, radiators and (partly-) covered case vents
• PWM Sharing Technology (PST) regulates fan speed synchronously
• 0 dB mode: silent passive mode when PWM signal is below 5 %
• Static Pressure: 2.4 mm H2O
Pack Information
Edition P14 PWM PST
Pack Type Single (1) Fan Standalone Pack
Includes 1 x 140mm Fan/s
Individual Fan Specifications
Fan Diameter 140mm
Fan Depth 27 mm
Fan Speed 1700 rpm
Fan Blades 5
Fan Specialization Static Pressure
Airflow 72.8 CFM
Air Pressure 2.4 mm H²O
Sound Level (dBA)
Sound Level (Sone) 0.3 @1700 rpm Sone
Motor Type
Bearing Type Fluid Dynamic Bearing
Manual Speed Controller No
Material Plastic
Fan Colour Black
LED Colour
Fan Fixing Screw Fixing
Cable length
Connectors 1 x 4-pin
Additional Information
Scan Code LN94094
Model Number ACFAN00125A
GTIN 4895213701563

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

Questions & Answers

can i have the volts and ampage of the motor please

Asked by: Doms
Hi, below you will find the power specifications of this fan: Typical Voltage: + 12 V DC Start-up Voltage: 3.9 V DC Current: 0.12 A Unfortunately, the manufacturer do not state the 'amapge' of the item so I would recommend you contact them directly for this information. Kind regards,
Answered by: LukeW
Date published: 2019-04-03

I would like to know how loud this fan is

Could you tell me the dba?
Asked by: infring
Good Afternoon, The only information we have received from the manufacturer is that the noise level of this fan is the following: 0.3 Sone (@ 1.700 RPM) Kind Regards,
Answered by: LukeW
Date published: 2020-01-22
