Scan code: LN104317 Manufacturer code: LH13QBREBGCX/EN

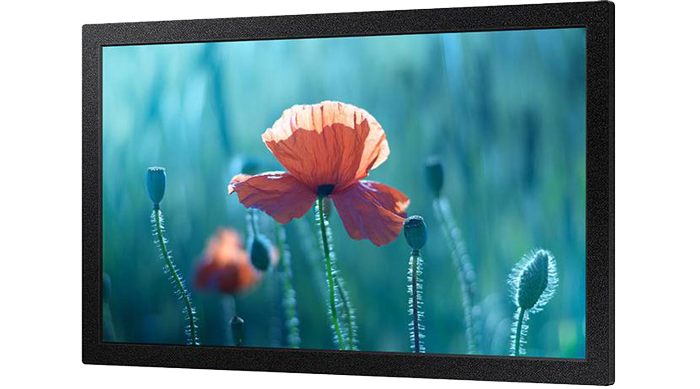

Samsung 13" QB13R Full HD SMART Signage Monitor

13" Samsung QB13R, Full HD SMART Signage Panel, Wi-Fi/HDMI/RS232/RJ45, 300nit, Embedded Media Player, Speakers, 16/7 wty

Thumbnail 1 : Samsung 13" QB13R Full HD SMART Signage Monitor Thumbnail 2 : Samsung 13" QB13R Full HD SMART Signage Monitor Thumbnail 3 : Samsung 13" QB13R Full HD SMART Signage Monitor Thumbnail 4 : Samsung 13" QB13R Full HD SMART Signage Monitor
Scan code: LN104317 Manufacturer code: LH13QBREBGCX/EN
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Businesses no longer just need large size displays, they often also need smaller displays for a variety of environments and uses. Samsung’s QB13R / QB13R-T small display enables personalized and more impactful communication through its compact and versatile design. An all-in-one solution designed for professional use, the display improves the operational efficiency of content, while also ensuring reliable performance for any business use. The QB13R-T specifically, is a touch-enabled small display which provides a unique store experience and improves customer engagement.

Introducing Samsung Small Displays

Samsung is introducing the two latest versatile, small sized displays, the QB13R and touch-enabled QB13R-T. Designed for professional use, Samsung’s QB13R Series delivers clear content using the embedded MagicINFO S media player, supported by reliable 16/7 operation and industry standard certification to ensure safe operation, reliable performance and eliminate any hassle.

QB13R : Small Display

The QB13R, FHD resolution display delivers clear and vibrant content, all in a slim and compact design. It can easily be applied to any business environment, such as a tool to display schedules, information and promotions in corporate lobbies, elevators and in front of meeting rooms and class-rooms. To engage customers more directly, the QB13R can also be used as a store shelf display to promote a specific or targeted item, in addition to showing promotions at the point of sale (POS) or counter.


• Crisp and Visible Content: The display supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.
• Slim, Smart Design: The compact and slim design of the QB13R allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.
• Powerful Content Playback: With an embedded MagicINFO S player, backed by TIZEN, the QB13R allows efficient and seamless playback without any external media player. SSSP also allows easy content development through rein-forced compatibility with multiple web formats.
• Comprehensive security Set-up: The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.
• Convenient, Clean Display Control: With centre IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn’t require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.
• Safe Operation, Reliable Performance: The QB13R is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Screen Size 13"
Edition QB13R
Panel Type E-LED
Panel Coating Non-Glare
Panel Finish
Pitch Size 0.153 x 0.153 mm
Adaptive Frame-rate Technology N/A

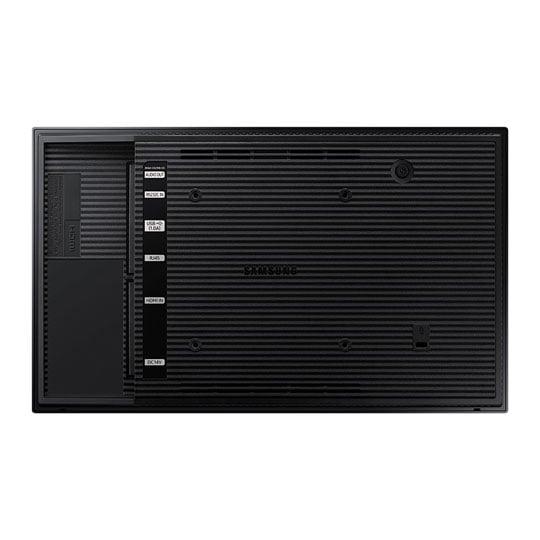

  • 1 x HDMI 1.4
  • 1 x RJ45
  • 1 x RS232C In
  • 1 x Stereo Mini Jack
  • 1 x USB 2.0 In
Position Adjustment Pivot
Resolution 1920x1080 (Full HD)
Aspect Ratio
Refresh Rate
Response Time 8 ms
Brightness 300 cd/m²
Viewing Angle 178/178 (°H/°V)
Contrast Ratio/Dynamic Contrast Ratio 800:1
Color Gamut 45%
Color Bit Depth 16.7M Colours
HDR Support No
Supported HDR Standards
Speakers Yes
Speaker Configuration 5W
Web Camera No
Power Usage (Switched on) 13 W
VESA 100 x 100
3D Support No
Anti-Theft Features
Included Accessories
  • 2 x Batteries
  • 1 x Power Cable
  • 1 x Quick Start Guide
  • 1 x Remote
  • 1 x Stand
  • 1 x Warranty Card
Monitor Colour
Dimensions (with stand)
Dimensions (without stand) 322.0 x 193.5 x 28.2 (WxHxD)
Weight (with Stand) 0.9 kg
Additional Information
Scan Code LN104317
Model Number LH13QBREBGCX/EN
GTIN 8806090110122
