Scan code: LN103082 Manufacturer code: GP-GSM2NE3128GNTD

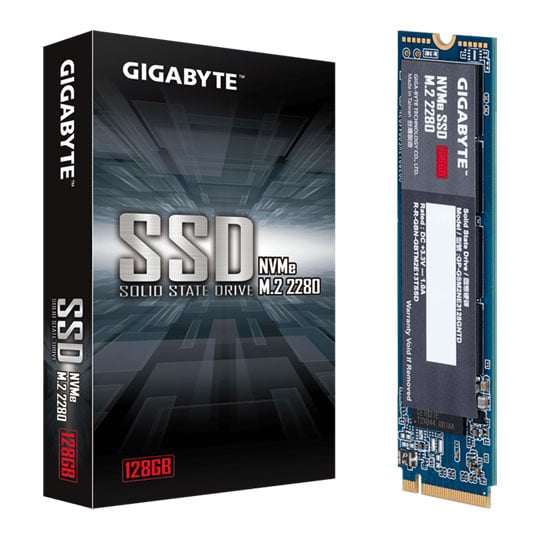

Gigabyte 128GB M.2 PCIe NVMe SSD/Solid State Drive

128GB Gigabyte, M.2 (2280) PCIe 3.0 (x4) NVMe SSD, HMB, V-NAND, 1550MB/s Read, 550MB/s Write, 130k/100k

Thumbnail 1 : Gigabyte 128GB M.2 PCIe NVMe SSD/Solid State Drive Thumbnail 2 : Gigabyte 128GB M.2 PCIe NVMe SSD/Solid State Drive Thumbnail 3 : Gigabyte 128GB M.2 PCIe NVMe SSD/Solid State Drive Thumbnail 4 : Gigabyte 128GB M.2 PCIe NVMe SSD/Solid State Drive
Scan code: LN103082 Manufacturer code: GP-GSM2NE3128GNTD
Order now and get it tomorrow, Mon 4th Jul
Get it Tomorrow, 04 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 4th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

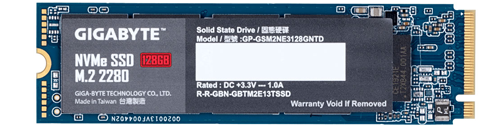

128GB Gigabyte NVMe Solid State Drive

Gigabyte NVMe SSD 128GB

performance. stability. Introducing the new GIGABYTE NVMe SSD with a total capacity of 128GB and PCI-Express 3.0 x4, NVMe 1.3 interface. Complete your daily computing tasks boasting the best controller and NAND Flash that provide incredible Sequential read and write speeds. Compared to the 2.5" SATA SSD, the GIGABYTE M.2 PCIe SSD gives you a rapid data transfer experience. Featuring HMB (Host Memory Buffer) support, plus TRIM & S.M.A.R.T supported. Included five-year warranty for peace of mind.

Other GIGABYTE M.2 2280 NVMe SSDs:

256GB 512GB 1TB

128GB M.2 PCIe 3.0NVMe 1.3 Storage 2280

1550 / 550 MBsMaximum Read / Write

100K / 130K IOPSRandom Read / Write

Breaking the Barriers of SATA Limitations


outstanding read/write performance GIGABYTE NVMe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash. GIGABYTE M.2 PCIe SSD gives you a faster data transferring experience compared to 2.5" SATA solid state drive.

Host Memory Buffer (HMB)

memory buffer

PCIE 3.0 (x4) interface The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

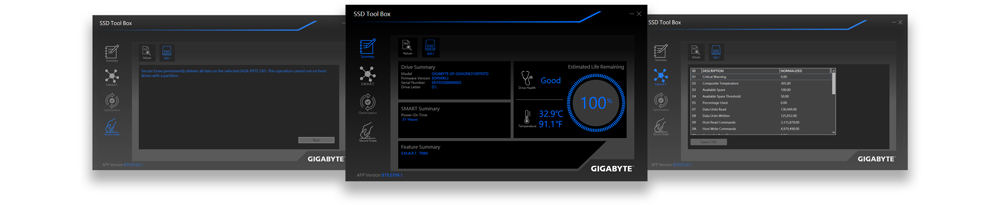

Check your SSD's Health Using the Tool Box

Tool box

monitor the ssd's status with ease The freshly restructured SSD Tool Box is an innovative application that assists users by monitoring SSD Status, providing general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Furthermore, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.

Reliability you can Trust


5 Years Limited Warranty GIGABYTE NVMe SSDs possess both high data transferring speed and enhanced endurance, providing durable MTBF of 1.5 million hours and 5 years or 1600TBW limited warranty.

Capacity 128GB
Form Factor M.2 (2280)
Height 22 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe 1.3
Flash Memory Type NAND Flash
Max. Read 1550 MB/s
Max. Write 550 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 100K IOPS
Max. Random Write 4K 130K IOPS
Latency N/A
Special Features
  • HMB (Host Memory Buffer) Supported
  • S.M.A.R.T Support
  • TRIM Support
Power Consumption (active) Avg. Read: 2.2W; Write: 1.7W
Max. Endurance Rating
MTBF 1.5M Hours
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
OS Support
Bracket N/A
Dimensions 80 x 22 x 2.3 mm (WxHxD)
Package Type
Additional Information
Scan Code LN103082
Model Number GP-GSM2NE3128GNTD
GTIN 4719331806866

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
0871 472 4747

Additional Notes:
5 Years Gigabyte Direct Warranty
