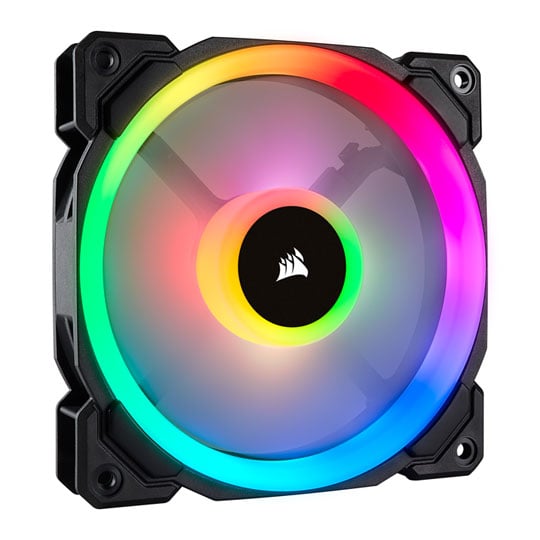

Corsair LL120 RGB 120mm Dual Light Loop 1 Fan Expansion Pack

120mm Corsair LL Series, LL120 RGB, 9 Blade, PWM, 16 LED RGB Dual Light Loop, Single Fan Expansion Pack, 4-pin

Thumbnail 1 : Corsair LL120 RGB 120mm Dual Light Loop 1 Fan Expansion Pack Thumbnail 2 : Corsair LL120 RGB 120mm Dual Light Loop 1 Fan Expansion Pack Thumbnail 3 : Corsair LL120 RGB 120mm Dual Light Loop 1 Fan Expansion Pack Thumbnail 4 : Corsair LL120 RGB 120mm Dual Light Loop 1 Fan Expansion Pack Corsair LL120 RGB 120mm Dual Light Loop 1 Fan Expansion Pack : video thumbnail 1
Scan code: LN85047 Manufacturer code: CO-9050071-WW
Was: £23.99
£19.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 13th Dec 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Corsair LL Series RGB LED 120mm Fan - Single Pack

LL120 Fan

LL120 Dual Light Loop RGB Lighting

The Corsair LL120 is made for those PC builders that are seeking excellent airflow, quiet operation and the most powerful lighting put into a case fan. You can control the fan speed with PWM that allows you to dynamically control speed from 600 RPM to 1500 RPM to minimize noise or maximize airflow.

Two Independent RGB Light Loops

Dual LED Loops

Nearly Endless Customization

The LL Series Corsair fans have 16 Independent RGB LEDs in each fan, that are split between two separate lighting loops allowing for nearly endless customization. The two loops let you create vibrant lighting and visual effects.

Speed as You Need it

Fan Blades Spinning

Control the Fans Speed

PWM fan control provides dynamic speed adjustment so you can choose to reduce the noise or maximize your airflow. Another amazing feature of the LL series fans is that you to set the fan to not spin when the temperatures are low, allowing you to have near silent computing.

Syphony of Colour

RGB LED Lighting

Endless Colour Combinations

If you choose to add more LL fans into your system then with the Triple LL120 Fan Pack you get the RGB Lighting hub and Lighting Node PRO these allow you to use all the RGB functionallities and get the best visuals.

Specifications
Pack Information
Edition LL120 RGB
Pack Type Single (1) Fan Expansion Pack
Includes
  • 1 x 120mm Fan/s
  • 4 x Fan Mounting Screws
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 25 mm
Fan Speed 600 - 1500 rpm
Fan Blades 9
PWM Yes
Fan Specialization
Airflow 43.25 CFM
Air Pressure 1.61 mm H2O
Sound Level (dB) 24.8 dB
Sound Level (Sone)
Motor Type
Bearing Type Hydraulic Bearing
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour White/Black
LED Yes
LED Colour RGB (Dual Loop)
MTBF 40,000 Hours
Fan Fixing Screw Fixing
Cable length 600 mm
Connectors
  • 1 x 4-pin
  • 1 x 4-pin RGB Connector
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Corsair / SCAN
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

TekSpek Guides
Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Reviews
120mm Corsair LL Series, LL120 RGB, 9 Blade, PWM, 16 LED RGB Dual Light Loop, Single Fan Expansion Pack, 4-pin is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Light-show Chassis Fans Even just on the default program they silently cycle gently through all colours while circulation air to facilitate cooling.
Date published: 2018-07-26
Rated 5 out of 5 by from For the RGB lovers. I bought six of these to replace my 6 Corsair HD120 RGB fans; had these been around first I wouldn't have switched but for me, the second light loop was enough to make me buy them as well as the black chassis which stems the amount of light thrown out across the whole PC. In a small case these fans are much better at producing an effect and not just spilling light everywhere. Set up is straight forward enough; from each fan there are two cables, one PWM control cable and one RGB control cable. I'm controlling the speed of my fans with the Corsair Commander Pro and then have the RGB fan hub connected to one of the LED ports on the Commander Pro, 4 LED strips from the second LED ports. You do have the option of controlling the fan speeds directly from your motherboard [PWM enabled] and the lighting from the RGB fan hub but I like as much integration as I can so opted for the full Corsair set up and with the advent of iCUE from Corsair it makes even sense to me. For the above set up you need 2 x SATA power and 1 x USB2.0 header on your motherboard [Commander Pro provides 2 x USB2.0 ports so no worries if you only have one on your board and need more than one]. Cooling performance is great and these fans are really quiet; I really only notice them at full speed and even then they are still quieter than a standard case fan [should be at the price I hear you say]. I rarely run them at full speed unless I'm messing about with fan curves. I'm keeping a water-cooled loop with CPU and GPU blocks and 360 radiator at around 25-28 degrees [no overclock] with the 3 radiator fans running at 900 rpm. The LED lighting on these fans is excellent; bright where it needs to be but without massively obvious hot spots. The two controllable rings of LEDs just make an RGB build that little bit more professional looking and the iCUE software now offers a lot more options over the Link software.
Date published: 2018-05-07
Rated 5 out of 5 by from HOW TO USE CORSAIRS LL FANS These fans require a lot of ports. Each fans has a special corsair connector, which you will require a "Corsair RGB fan hub" for. The "RGB fan hub" requires a SATA power connection and a connection to either the "Lighting Node Pro" or "Commander Pro" via a 3-pin corsair lighting cable (Which will come with an “RGB fan hub” from Corsair). CONFIGURATION ONE (LIGHTING NODE PRO): Each fan (As well as the exclusive Corsair fan header) has a standard 4-pin PWM port, which can be plugged into the motherboard. (For this configuration, you will require a "Corsair Lighting Node Pro", which you must connect to the motherboard via the included corsair link cable. The "Lighting Node Pro" will also require SATA power. You must connect the "Lighting Node Pro" to the "RGB fan hub" via the 3-pin corsair lighting cable (Which will come with an “RGB fan hub” from Corsair). CONFIGURATION TWO (COMMANDER PRO): Much like the first configuration, each fan must be connected to a "Corsair RGB Fan Hub" via the exclusive corsair fan header, but instead of connecting each fan's PWM port into your PC's motherboard, you can connect the PWM port to the PWM header on the "Corsair Commander Pro", freeing up space on your motherboard. This is a good option if you are going to include lots of these fans in your build (For instance, I am using six LL120 fans, in my Crystal 570X case). You must then connect the "Commander Pro" to the "RGB fan hub" via a 3-pin corsair lighting cable. I hope that this quick guide will help you install these fantastic fans in your system. They can be a struggle at first, but boy is it worth it, in the end...
Date published: 2017-10-25
