Hot Seller

Corsair HX1200 Fully Modular 80PLUS Platinum Power Supply/PSU

1200W Corsair HX1200, Full Modular, 80PLUS Platinum, SLI/CrossFire, Single Rail, 100A, 135mm Fan, ATX PSU

Corsair
Scan code: LN80545 Manufacturer code: CP-9020140-UK Request call
£203.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £11.50 By DPD On 24th Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

HX1200 - Corsair Power Supply - Fully Modular ATX PSU

Corsair HX1200 Power Supply 80PLUS - Platinum

Corsair HX 1200W Power Supply

This HX Series power supply from Corsair has a total power output of 1200W, other advantages to the HX1200 are the fully modular cable setup which gives you extremely tight voltage control virtually silent operation. The 80PLUS Platinum efficiency rating and Zero RPM Fan Mode mean that at low to medium loads, the fan doesn’t spin at all. And when you do push the HXi hard, the thermally controlled fan spins only as fast as it needs to. Even when the fan isn't running the HX1200 has specially selected components to reduce electronic noise for a near silent PSU.

View other HX power outputs:
HX750i - HX1000

Fully Modular Connectivity

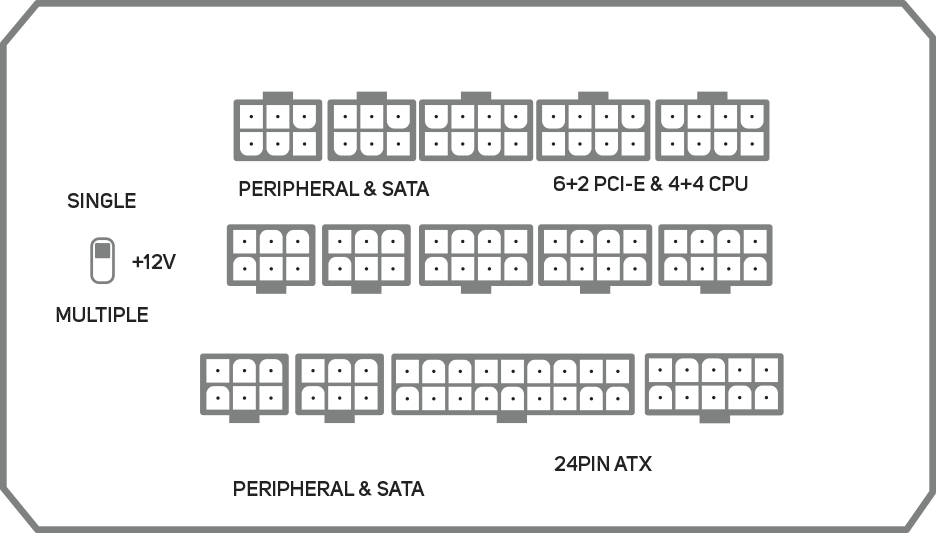

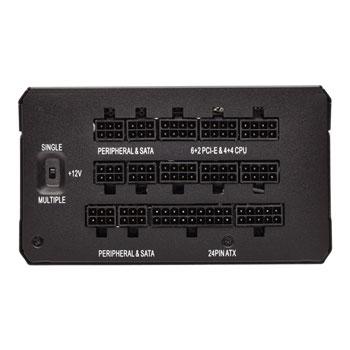

Connections

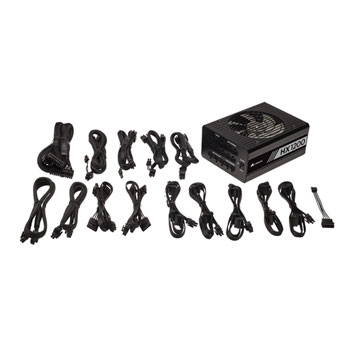

HX Fully Modular Cable Design

The easy to install, fully modular setup on the Corsair HX1200 allows you to combine the low-profile cables provided for a great-looking build. You can toggle the rail modes using the switch on the PSU, In the SINGLE position, the full output capability of the power supply’s +12V rail is available to any and all connector, while on MULTIPLE each connector has Over-Current Protection so no more than 40A of current can be delivered to each cable.

HX1200 Efficiency & Noise Graphs

HX1200 EFFICIENCY

Efficiency Graph

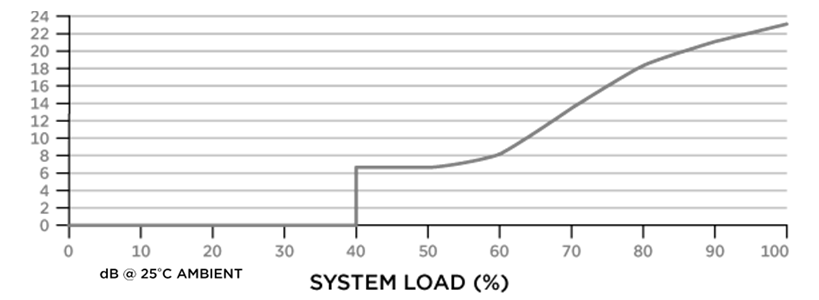

HX1200 FAN NOISE

Noise Graph

Corsair HX1200 Output Power Chart

CORSAIR HX1200 DC OUTPUT - SINGLE +12V RAIL MODE
DC Output +3.3V +5V +12V -12V +5Vsb
Max Load 30A 30A 100A 0.8A 3.5A
Maximum Combined Wattage 150W 1200W 9.6W 17.5W
Total Power: 1200W
CORSAIR HX1200 DC OUTPUT - MULTIPLE +12V RAIL MODE
DC Output +3.3V +5V +12V1 +12V2 -12V3 +12V4 +12V5 +12V6 +12V7 +12V8 +12V +5VSB
Max Load 30A 30A 40A 40A 40A 40A 40A 40A 40A 40A 0.8A 3A
Maximum Combined 150W 1200W 9.6W 15W
Total Power: 1200W

Corsair HX1200 Key Features

80PLUS - Platinum

80 PLUS Platinum CertifiedPlatinum certification ensures high efficiency for less excess heat & lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

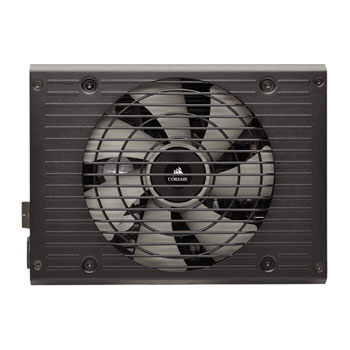

Zero Fan Mode

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

10 Year Warranty

Ten Year WarrantyYour guarantee of reliable operation that will last across several system builds.

Specifications
Size ATX
Edition HX1200
Wattage 1200 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 100 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 100 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 2 x 4+4-pin CPU +12V (EPS)
  • 8 x 4-pin Molex
  • 8 x 6+2-pin PCIe
  • 1 x FDD Power
  • 8 x SATA
Dimensions 150 x 86 x 200 mm (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Return to base
RTB Period:
120 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
