Scan code: LN125913 Manufacturer code: QSW-M408-4C

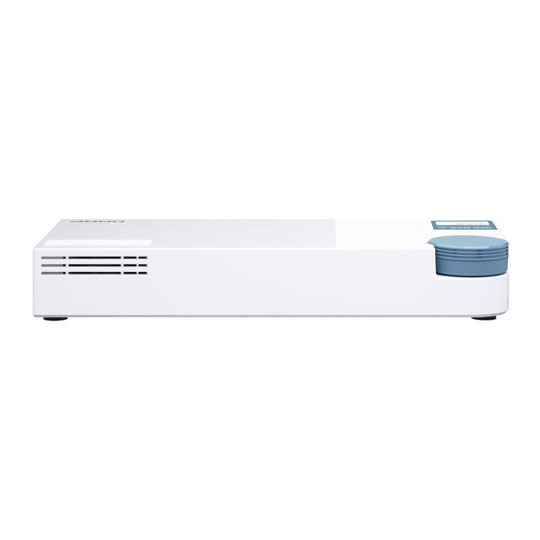

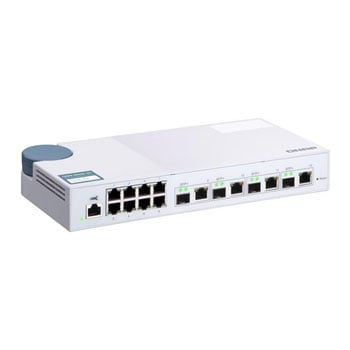

QNAP12 Port 10GbE Layer 2 Web Managed Desktop Switch

12 Port QNAP QSW-M408-4C Managed Desktop Switch, 4x 10GbE SFP+/RJ45 Combo, 8x 1GbE (RJ45), 96Gbps Switching

Thumbnail 1 : QNAP12 Port 10GbE Layer 2 Web Managed Desktop Switch Thumbnail 2 : QNAP12 Port 10GbE Layer 2 Web Managed Desktop Switch Thumbnail 3 : QNAP12 Port 10GbE Layer 2 Web Managed Desktop Switch
Scan code: LN125913 Manufacturer code: QSW-M408-4C
Order in the next 20 mins and get it tomorrow
£479.99
Get it Tomorrow, 25 MayIn stock
From £21.22 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £41.26
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £479.99
Total inc. interest: £495.07
Monthly Payment: £21.22
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £479.99
Total inc. interest: £509.26
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 25th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

QNAP QSW-M408-4C Managed Switch

The QSW-M408-4C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M408-4C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. The QSW-M408-4C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-4C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security.


Flexible Deployment with Multiple 10G SFP+ Fibre and Gigabit Ports

The QSW-M408-4C provides four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-4C is 96Gbps, guaranteeing the full potential of each port.


Intuitive Network Management Software with Web GUI

The QSW-M408-4C uses the QNAP Switch System (QSS), which features an easy-to-use Web GUI with value-added functions to simplify network set up and management.


The Human Centered Setting Guide

QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide to help administrators control Layer 2 networks.


Optimize Network Performance with Bandwidth and Packet Control

The QSW-M408-4C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) for boosting network performance through IP grouping and bandwidth management.


Powerful Security and System Functions

The QSW-M408-4C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.


Faster Speeds Using Existing Cables with 10GBASE-T & NBASE-T

The QSW-M408-4C is compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.


Improve Team Productivity with a 5GbE/ 10GbE High-Speed Network

From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE/5GbE/2.5GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M408-4C to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.


Desktop Size for Easy Use in Offices

With a compact and modern design, the QSW-M408-4C fits perfectly alongside other devices in modern digital offices. Featuring a delicate white or textured surface design, the QSW-M408-4C helps users to easily identify each port. The flexible DC power connector also assists in universally deploying the QSW-M408-4C. Being fully plug-and-play, simply connect the QSW-M408-4C to your devices and it will do the rest.


Features


NBASE-T Ethernet:The QSW-M408-4C is equipped with four 10GbE SFP+/ RJ45 combo ports and eight Gigabit ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M408-4C offers higher transmission speeds when used with existing cables.
User-friendly management interface: Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy.
Layer 2 network: The QSW-M408-4C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for IT administrators to efficiently control the network bandwidth and enhance security.
RSTP protocol: The QSW-M408-4C is one the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention.
Energy saving: Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M408-4C avoids packet loss from unparalleled bandwidth, and reduces power consumption for low-speed and inactive connections.
Online OS updates: QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security.


Specifications
Edition Smart Managed Switch
Form Factor Desktop
Total Network Ports
  • 8 x 10/100/1000 (Gigabit) RJ-45
  • 4 x SFP+
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity 96Gbps
Non-Blocking Throughput 48Gbps
Forwarding Rate
MAC Address Table Size 16K Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.1ab
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1w
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ad (LACP)
  • IEEE 802.3ae
  • IEEE 802.3an
  • IEEE 802.3az
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Acoustic Noise
Max. Power Consumption 31.46 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply Internal AC Power Supply
Material
Includes
Dimensions (WxHxD) 290 x 42.5 x 127 mm
Weight 1.15 kg
Additional Information
Scan Code LN125913
Model Number QSW-M408-4C
GTIN 4713213516713
