10.7M BNC Male to BNC Male Video Cable by Kramer - Tested to 3G
Scan code: LN73650
Manufacturer code: C-BM/BM-35
£29.99
10.7M BNC Male to BNC Male Video Cable by Kramer - Tested to 3G
10.7M Kramer BNC Male to BNC Male, Coax, Video Signal Cable - Tested to 3G
Scan code:
LN73650
Manufacturer code:
C-BM/BM-35
£5.48 Next day delivery
Order now and get it tomorrow, Wed 30th Apr
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Frequently Bought Together
Product Overview
Kramer’s BM series cables are constructed of high performance RG-6 cable with 75 Ohm BNC connectors at each end. They offer outstanding quality, durability, and high performance for any video signal application.
• Quality Construction - RG-6 cable for the highest resolution signals.
• High-Quality Connectors - True 75 Ohm BNC connectors maintain correct impedance end-to-end.
• Cable Specs - Tested to 3G. For detailed cable specs, see Kramer BC-1X. Features Coax
• Conductor: 18 AWG solid bare copper.
• Dielectric: Skin foam.
• Shield: (A) 61% braid 34 AWG aluminum wire. (B) Dual foil/Mylar 25% overlap rate.
Condtruction
• Outside Jacket: PVC.
• Outside Jacket Colour: Dark gray with white lettering.
Diameters
• Centre Conductor: 1.02mm (0.0403in).
• Dielectric: 4.57mm (0.179in).
• Outside Diameter: 6.95mm (0.391in).
Electrical
• Impedance: 75 Ohm.
• DC Resisitance: 21.8 Ohm/km (6.6?/1000ft).
• Capacitance: 53.1pF/m (16.1pF/ft).
• Velocity of Propagation: 82%.
• Temperature: -20° to 75°C (-4° to 167°F).
• Attenuation (DB/100 FT.):
-0.3dB @1MHz
-0.6dB @5MHz
-0.8dB @10MHz
-1.6dB @50MHz
-2.0dB @100MHz
-2.8dB @180MHz
-4.4dB @400MHz
-5.7dB @750MHz
-6.7dB @1000MHz
• Quality Construction - RG-6 cable for the highest resolution signals.
• High-Quality Connectors - True 75 Ohm BNC connectors maintain correct impedance end-to-end.
• Cable Specs - Tested to 3G. For detailed cable specs, see Kramer BC-1X. Features Coax
• Conductor: 18 AWG solid bare copper.
• Dielectric: Skin foam.
• Shield: (A) 61% braid 34 AWG aluminum wire. (B) Dual foil/Mylar 25% overlap rate.
Condtruction
• Outside Jacket: PVC.
• Outside Jacket Colour: Dark gray with white lettering.
Diameters
• Centre Conductor: 1.02mm (0.0403in).
• Dielectric: 4.57mm (0.179in).
• Outside Diameter: 6.95mm (0.391in).
Electrical
• Impedance: 75 Ohm.
• DC Resisitance: 21.8 Ohm/km (6.6?/1000ft).
• Capacitance: 53.1pF/m (16.1pF/ft).
• Velocity of Propagation: 82%.
• Temperature: -20° to 75°C (-4° to 167°F).
• Attenuation (DB/100 FT.):
-0.3dB @1MHz
-0.6dB @5MHz
-0.8dB @10MHz
-1.6dB @50MHz
-2.0dB @100MHz
-2.8dB @180MHz
-4.4dB @400MHz
-5.7dB @750MHz
-6.7dB @1000MHz

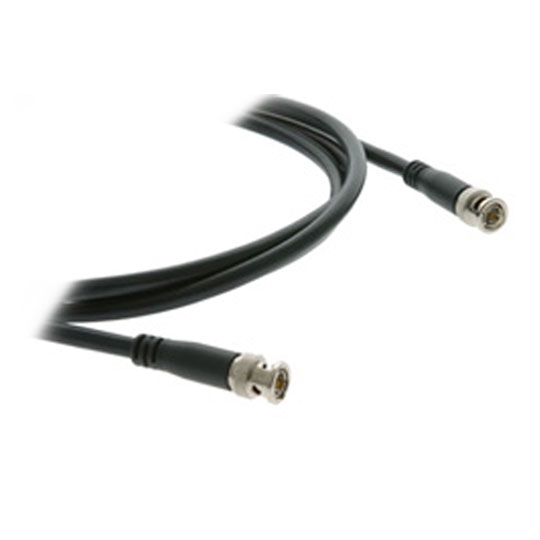

10.7M BNC Male to BNC Male Video Cable by Kramer - Tested to 3G
