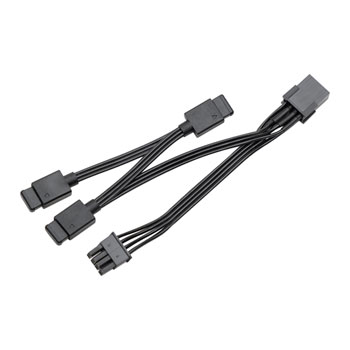

EK-Loop OmniLink 100mm D-RGB 3-Way Signal Splitter
100mm EK-Loop OmniLink D-RGB 3-Way Signal Splitter, 1x Molex Micro-fit 3.0 Connector to 3x 3-Pin D-RGB LED Connector
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
EK-Loop OmniLink D-RGB 3-Way Signal Splitter
The EK-Loop OmniLink D-RGB 3-Way Signal Splitter cable allows the user to connect and power up to three D-RGB LED devices and continue the OmniLink cable harness. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.
Suitable for adding EK D-RGB water blocks, reservoirs, distribution plates, and other D-RGB LED products to an OmniLink cable harness.
PLEASE NOTE:
• If EK-Loop FPT fans are placed at the start of the OmniLink series, it limits the current to 4.5A due to the thinner wire gauge of the cable.
• EK-Loop OmniLink D-RGB 3-Way Signal Splitter cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers.
Features
• Molex Micro-fit 3.0 8-pin Male connector to:
1x Molex Micro-fit 3.0 8-pin Female connector
3x 3-Pin D-RGB LED Female Connector (+5V, Data, Blocked, Ground)
• Cable length: 100±10mm
• Colour: Black
• Power Wire gauge: AWG20
• Signal Wire gauge: AWG22
• Molex Micro-fit Connector current rating: 8.5A
• Power Cable current rating: 8A
• Signal Cable current rating: 6A
