Scan code: LN139053 Manufacturer code: SST-SX1000R-PL

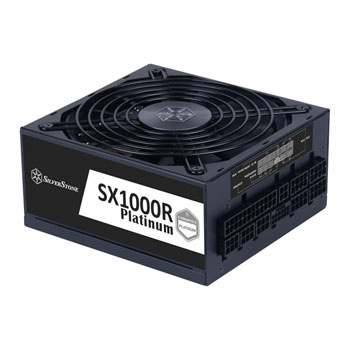

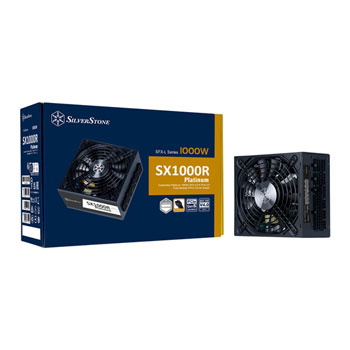

Silverstone 1000 Watt SST-SX1000R-P PCIe 5.0 Cybenetics Platinum Modular SFX12V 4.0 PSU/Power Supply

1000W SilverStone SX1000R-PL, SFX12V 4.0, PCIe5 Fully Modular, 80PLUS Cybenetics Platinum, Single Rail, 83.3A, 120mm Fan

MORE INFO
MORE INFO
Thumbnail 1 : Silverstone 1000 Watt SST-SX1000R-P PCIe 5.0 Cybenetics Platinum Modular SFX12V 4.0 PSU/Power Supply Thumbnail 2 : Silverstone 1000 Watt SST-SX1000R-P PCIe 5.0 Cybenetics Platinum Modular SFX12V 4.0 PSU/Power Supply Thumbnail 3 : Silverstone 1000 Watt SST-SX1000R-P PCIe 5.0 Cybenetics Platinum Modular SFX12V 4.0 PSU/Power Supply Thumbnail 4 : Silverstone 1000 Watt SST-SX1000R-P PCIe 5.0 Cybenetics Platinum Modular SFX12V 4.0 PSU/Power Supply
Scan code: LN139053 Manufacturer code: SST-SX1000R-PL
Order in the next 1 hr 56 mins and get it tomorrow
£279.98
Add To Basket
Get it Tomorrow, 12 DecIn stock
From £11.67 / month (APR 0%) or 0% for 4 months
Monthly Payment: £23.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £279.98
Total inc. interest: £279.98
Monthly Payment: £11.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £279.98
Total inc. interest: £279.98
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 12th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

12VHPWR PCIe Connector Supports Intel SFX 12V V4.0 specification

The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card's instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems.


Cybenetics Platinum Certified

Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity.


Single Rail

Powerful single +12V rail design, ideal for future high-end component upgrades and overclocking.


Fully Modular Design with Universal EPS / PCIe Connector Interface

Flat cables have much greater flexibility to allow for tighter folding and management of cable.


All Japanese Electrolytic Capacitors

Ensure reliable power and extended life span.

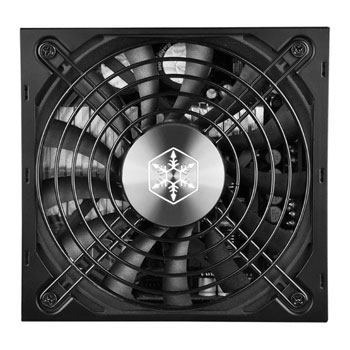

Silent 120mm Fan

Silent running 120mm dual ball bearing fan with advanced semi-fanless operation.


Advanced Protections

• Over current protection.
• Over voltage protection.
• Under voltage protection.
• Over power protection.
• Short circuit protection.
• Over temperature protection.



Features


• SFX-L form factor for use in small form factor computers.
• Supports 12VHPWR PCIe connector with SFX12V 4.0 and PCIe Gen 5 standard.
• 1000W continuous power output rated for 24/7 operation.
• Class-leading single +12V rail with 83.3A.
• High efficiency with Cybenetics Platinum certification.
• Silent running 120mm dual ball bearing fan with advanced semi-fanless operation.
• 24/7 continuous power output with 50? operating temperature.
• High quality construction with all Japanese capacitors.

Specifications
Form Factor SFX-L
Edition SST-SX1000R-PL
Wattage 1000 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 83.3 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 83.3 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V No
Motherboard Connector 20+4-pin

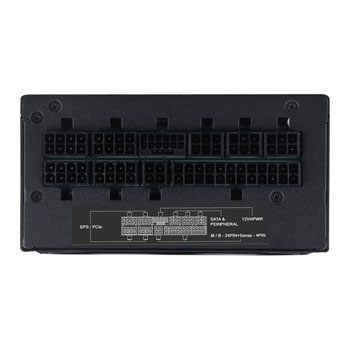

Connectors
  • 1 x 12+4-pin PCIe
  • 2 x 4+4-pin ATX 12V
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 125 x 63.5 x 130 (WxHxD)
Package Type Retail
Warranty
Additional Information
Scan Code LN139053
Model Number SST-SX1000R-PL
GTIN 4710679816173
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
SilverStone Technology GmbH
Telephone:
Carsten Buss Tel.: +49 40 675931-35
