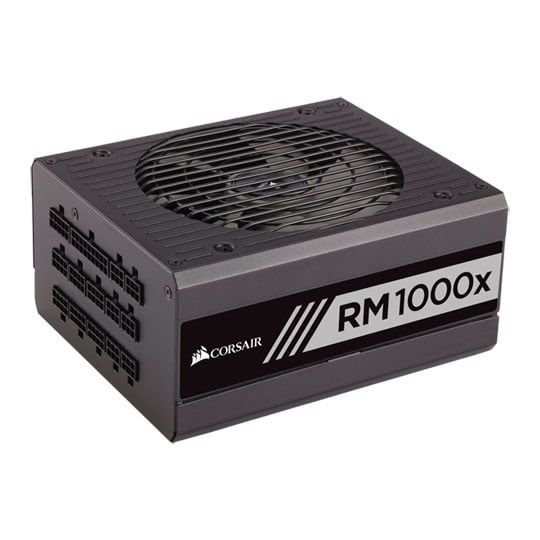

Corsair 1000 Watt RMx Fully Modular RM1000X ATX PSU/Power Supply
RM1000x - Corsair Power Supply - Fully Modular ATX PSU

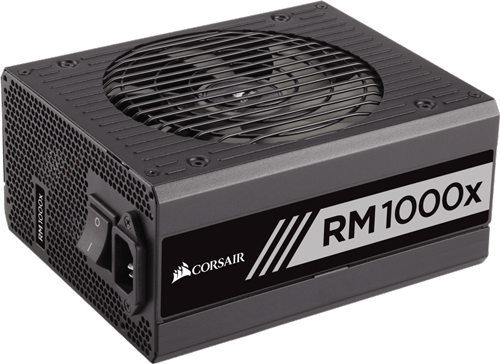

Corsair RMx 1000W Power Supply
This version of the RMx Series power supplies from corsair comes white a total power output of 1000W. The RM1000x gives you extremely tight voltage control with near quiet operation. The 80PLUS GOLD rating on this PSU reduces operating costs and excess heat. The Zero RPM fan mode ensures virtual silence at low and medium loads. It also features a fully modular cable set, these DC cables makes building and upgrading your PC easier and leaves it looking great.
View other RMx power outputs:
RM550x - RM650x - RM750x - RM850x

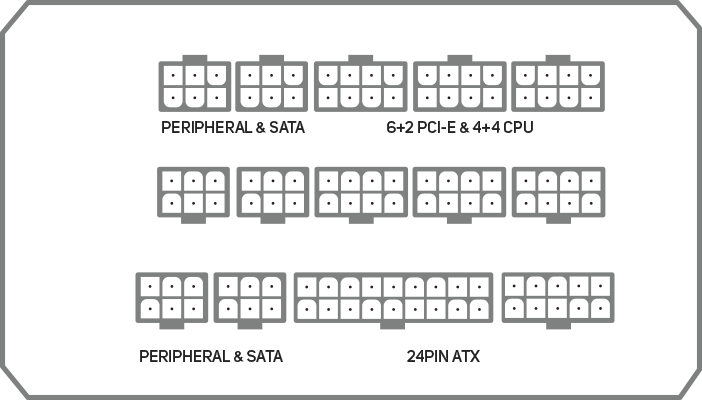

Fully Modular Connectivity
RMx Fully Modular Cable Design
The fully modular design of the RMx power supply means that during your build you can mount the PSU in the case first and then attatch only the cables you need, making builds and upgrades easy with great looking results.

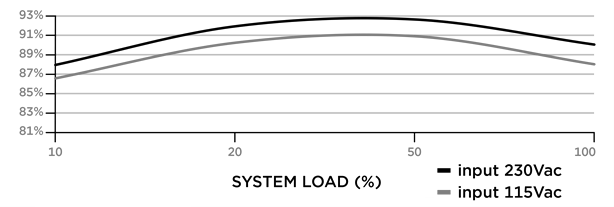

RM1000x Efficiency & Noise Graphs

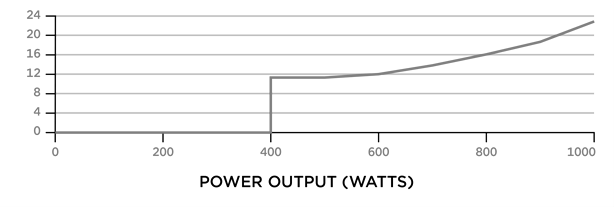

RM1000x Fan Noise
Corsair RM1000x Output Power Chart
|Corsair RM1000x Fully Modular Power Supply|
|AC Input Rating||DC Output Rating|
|AC Input: 100V - 240V||DC Output||+3.3V||+5V||+12V||-12V||+5Vsb|
|Current: 13A - 6.5A||Max Load||25A||25A||83.3A||0.8A||3A|
|Frequency: 47Hz - 63Hz||Maximum Combined Wattage||150W||1000W||9.6W||15W|
|Total Power: 1000W|
Corsair RM1000x Key Features
80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.
Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.
Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.
Ten Year WarrantyYour guarantee of reliable operation that will last across several system builds.
|80 PLUS Certification||80 PLUS Gold|
|Max. Efficiency||92 %|
|Fans||1 x 135mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||83.3 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||83.3 A|
|Dimensions||150 x 86 x 180 mm (WxHxD)|
