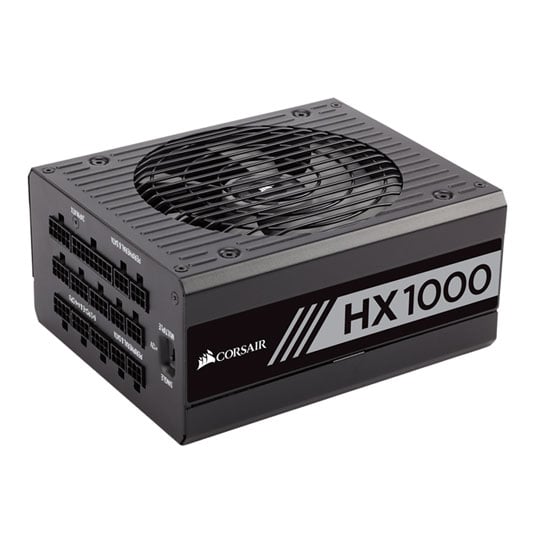

Corsair HX1000 Fully Modular 80PLUS Platinum Power Supply/PSU

1000W Corsair HX1000, Full Modular, 80PLUS Platinum, SLI/CrossFire, Single Rail, 83.3A, 135mm Fan, ATX PSU
MORE INFO
MORE INFO

Scan code: LN80544 Manufacturer code: CP-9020139-UK
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

HX1000 - Corsair Power Supply - Fully Modular ATX PSU

Corsair HX1000 Power Supply 80PLUS - Platinum

Corsair HX 1000W Power Supply

This HX Series power supply from Corsair has a total power output of 1000W, other advantages to the HX1000 are the fully modular cable setup which gives you extremely tight voltage control virtually silent operation. The 80PLUS Platinum efficiency rating and Zero RPM Fan Mode mean that at low to medium loads, the fan doesn’t spin at all. And when you do push the HXi hard, the thermally controlled fan spins only as fast as it needs to. Even when the fan isn't running the HX1000 has specially selected components to reduce electronic noise for a near silent PSU.

View other HX power outputs:
HX750i - HX1200

Fully Modular Connectivity

Connections

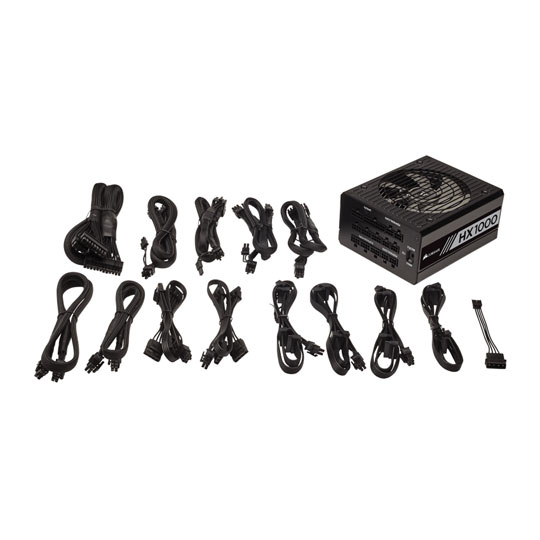

HX Fully Modular Cable Design

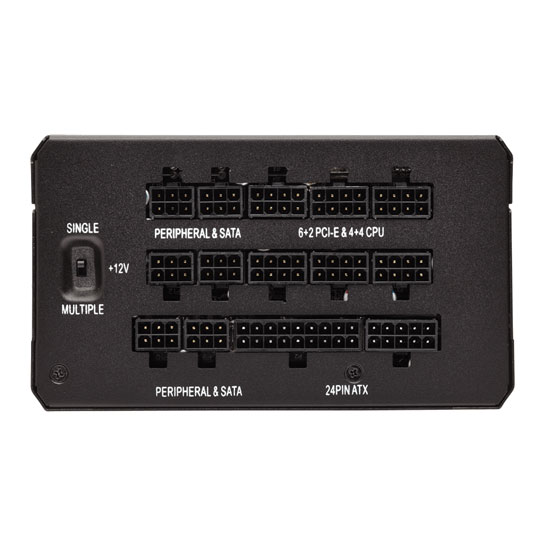

The easy to install, fully modular setup on the Corsair HX1000 allows you to combine the low-profile cables provided for a great-looking build. You can toggle the rail modes using the switch on the PSU, In the SINGLE position, the full output capability of the power supply’s +12V rail is available to any and all connector, while on MULTIPLE each connector has Over-Current Protection so no more than 40A of current can be delivered to each cable.

HX1000 Efficiency & Noise Graphs

HX1000 EFFICIENCY

Efficiency Graph

HX1000 FAN NOISE

Noise Graph

Corsair HX1000 Output Power Chart

CORSAIR HX1000 DC OUTPUT - SINGLE +12V RAIL MODE
DC Output +3.3V +5V +12V -12V +5Vsb
Max Load 25A 25A 83.3A 0.8A 3A
Maximum Combined Wattage 150W 1000W 9.6W 15W
Total Power: 1000W
CORSAIR HX1000 DC OUTPUT - MULTIPLE +12V RAIL MODE
DC Output +3.3V +5V +12V1 +12V2 -12V3 +12V4 +12V5 +12V6 +12V7 +12V8 +12V +5VSB
Max Load 25A 25A 40A 40A 40A 40A 40A 40A 40A 40A 0.8A 3A
Maximum Combined 150W 1000W 9.6W 15W
Total Power: 1000W

Corsair HX1000 Key Features

80PLUS - Platinum

80 PLUS Platinum CertifiedPlatinum certification ensures high efficiency for less excess heat & lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

Zero Fan Mode

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

10 Year Warranty

Ten Year WarrantyYour guarantee of reliable operation that will last across several system builds.

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Return to base
RTB Period:
120 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01204-474747
Buying Guide
Not sure which power supply is right for you? Read our Power Supplies Buying Guide
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

1000W Corsair HX1000, Full Modular, 80PLUS Platinum, SLI/CrossFire, Single Rail, 83.3A, 135mm Fan, ATX PSU is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Great power, convenient modularity but noisy The HX1000 is a great PSU over-all. It's platinum rated and can run in dual or single rail mode and should be able to handle nigh on any load you pump through it. The cable management is great as it's a fully modular PSU and the PSU comes with a bag containing all the cables, each cable is braided which is also a nice touch. Unfortunately as soon as there's any serious power draw, e.g. when bench-marking the HX1000 starts chirping like a field full of crickets, I don't think this is a fault per say as it sounds like capacitors discharging but it is quite irritating. Overall it's a good buy but you can probably do better, especially when it comes to noise.
