Cooler Master RS-A00-AMBA Silent Pro M 1000W Modular Power Supply (PSU)
Scan code: LN29735
Manufacturer code: RS-A00-AMBA
End Of Life

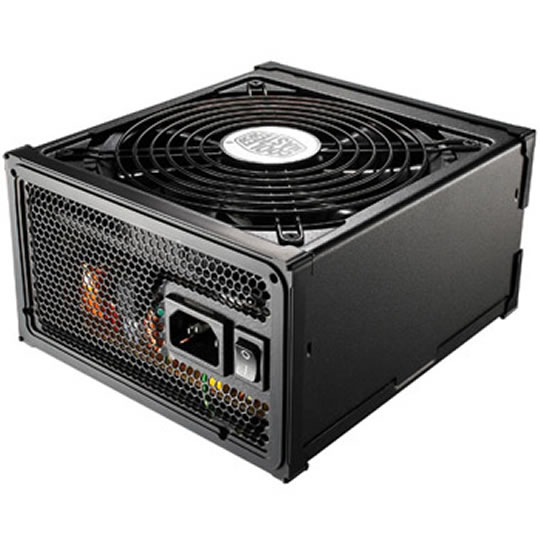

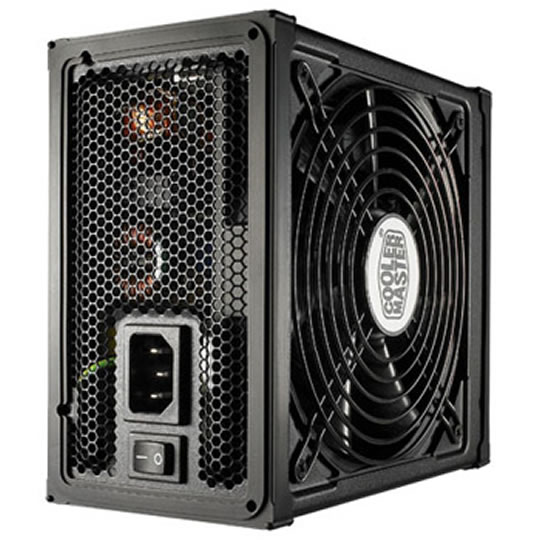

Cooler Master RS-A00-AMBA Silent Pro M 1000W Modular Power Supply (PSU)
1000W Cooler Master Silent Pro M RS-A00 Hybrid Modular, 80 PLUS Bronze - 85% Eff', EPS 12V, 1 x 135mm Fan, ATX v2.3 PSU
Scan code:
LN29735
Manufacturer code:
RS-A00-AMBA
This product is no longer available to purchase.
Email me when the availability or price changes
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview
Cooler Master adds M850 and M1000 to the Silent Pro series, giving extreme overclockers and/or ultra high-end systems all the power they need. With up to 80A on a single 12V rail, these power supplies deliver where it counts and won’t have any problems powering even the most demanding multi-graphic card systems. These units feature flat modular cables for improved airflow and cable management. It also comes with shock absorbtion silicon pads to remove possible vibrations.
•Copper plus aluminum heatsink for efficient heat dissipation
•Japanese-made capacitors to enhance PSU outputs stability
•Compliance with the newest Intel standard ATX 12V V 2.3 and SSI standard EPS 12V V2.92
•Flat modularized cables to eliminate the clutter and improve airflow inside the chassis
•Ultra-silent operation with intelligent 135mm fan speed control
•Unique silicon pad eliminate the vibration
•Eco-design for energy and money saving by Active PFC.(>0.99) / high efficiency (>85%)
•Single +12V rail for up to 80A for high demanding SLI
Features Model RS-A00-AMBA-J3
Type Intel ATX12V V2.3 / SSI EPS 12V V2.92
Dimension (W / H / D) 150(W) x 86(H) x 165(L) (mm)
Input Voltage 90~264V (Auto Range)
Input Current 14A@115Vac, 8A@230Vac
Input Frequency Range 47~63Hz
PFC Active PFC >0.9
Power Good Signal 100~500ms
Hold Up Time >17ms
Efficiency 85% Typically
MTBF >100,000hrs
Protection OVP/ UVP/OCP/OPP/OTP /SCP
Output Capacity 1000W
Max. Output Capacity 1200W
Operation Temperature 0~40°C (Nominal Input Voltage)
Regulatory TUV / CE / GOST / C-tick / UL / FCC / CCC / BSMI
Fan 135mm ultra silent fan
Certifications SLI / 80 Plus Bronze
Connector M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 2
PCI-E 6+2 Pin x 6
4 Pin Peripheral x 6
SATA x 9
4 Pin Floppy x 1
PCI-e Y cable x 2
(One PCI-e 6+2 Pin extends to two PCI-e 6+2 connectors)
•Copper plus aluminum heatsink for efficient heat dissipation
•Japanese-made capacitors to enhance PSU outputs stability
•Compliance with the newest Intel standard ATX 12V V 2.3 and SSI standard EPS 12V V2.92
•Flat modularized cables to eliminate the clutter and improve airflow inside the chassis
•Ultra-silent operation with intelligent 135mm fan speed control
•Unique silicon pad eliminate the vibration
•Eco-design for energy and money saving by Active PFC.(>0.99) / high efficiency (>85%)
•Single +12V rail for up to 80A for high demanding SLI
Features Model RS-A00-AMBA-J3
Type Intel ATX12V V2.3 / SSI EPS 12V V2.92
Dimension (W / H / D) 150(W) x 86(H) x 165(L) (mm)
Input Voltage 90~264V (Auto Range)
Input Current 14A@115Vac, 8A@230Vac
Input Frequency Range 47~63Hz
PFC Active PFC >0.9
Power Good Signal 100~500ms
Hold Up Time >17ms
Efficiency 85% Typically
MTBF >100,000hrs
Protection OVP/ UVP/OCP/OPP/OTP /SCP
Output Capacity 1000W
Max. Output Capacity 1200W
Operation Temperature 0~40°C (Nominal Input Voltage)
Regulatory TUV / CE / GOST / C-tick / UL / FCC / CCC / BSMI
Fan 135mm ultra silent fan
Certifications SLI / 80 Plus Bronze
Connector M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 2
PCI-E 6+2 Pin x 6
4 Pin Peripheral x 6
SATA x 9
4 Pin Floppy x 1
PCI-e Y cable x 2
(One PCI-e 6+2 Pin extends to two PCI-e 6+2 connectors)
