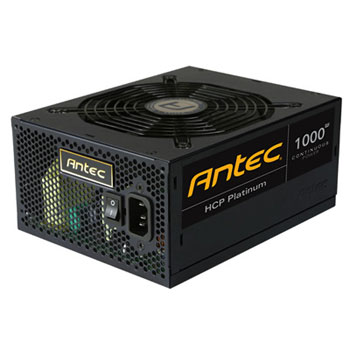

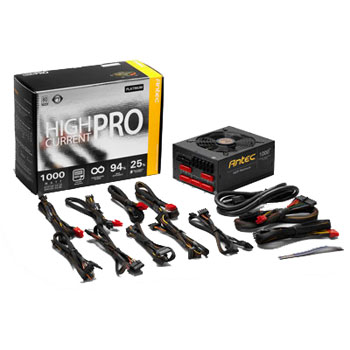

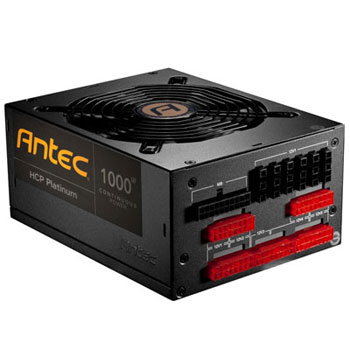

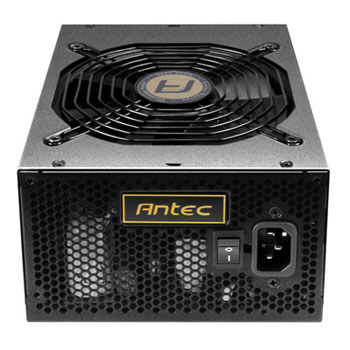

Antec High Current Pro 1000W Full Modular 80+ Platinum Power Supply

1000W Antec HCP-1000 Platinum, Full Modular 80PLUS Platinum 1x135mm Silent Fan, ATX, PSU

Thumbnail 1 : Antec High Current Pro 1000W Full Modular 80+ Platinum Power Supply Thumbnail 2 : Antec High Current Pro 1000W Full Modular 80+ Platinum Power Supply Thumbnail 3 : Antec High Current Pro 1000W Full Modular 80+ Platinum Power Supply Thumbnail 4 : Antec High Current Pro 1000W Full Modular 80+ Platinum Power Supply
Scan code: LN44991 Manufacturer code: 0-761345-06249-7
£209.99
From £10.08 / month (APR 14.9%)
Monthly Payment: £36.44
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £218.62
Monthly Payment: £18.86
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £226.20
Monthly Payment: £13.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £233.97
Monthly Payment: £10.08
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £241.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Oct 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Antec’s High Current Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS® PLATINUM & ErP Lot 6: 2013 certified, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many other power supplies.

HCP Platinum’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. Backed by a 7 year warranty and lifetime global 24/7 support, the HCP-1000 Platinum embodies everything a power supply can accomplish today. Features Specifications:
1000W Continuous Power - Guaranteed 1000W of Continuous Power from Antec
80 PLUS PLATINUM certified - Up to 94% efficient, to reduce your electricity bill
Save Energy and Money - Reduce your electricity bill by up to 25%
AQ7 - Antec Quality 7 year warranty and lifetime global 24/7 support
16-pin Socket - Industry-leading 16-pin sockets double the modular connectivity by
supporting 2 different 8-pin cables per socket and allow for future connector changes
28(20+8)-pin MBU socket - World's first socket for possibe future MBU connectors
135 mm DBB Silence - Whisper-quiet high-quality double ball bearing fan with long lifetime
Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
High Current Rails - 4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
100% +12V - Output for maximum CPU & GPU support
Multi PCI-E - 6 PCI-E connectors for multiple GPU support
CircuitShield - Full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protecion (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP)
All Japanese Heavy-Duty Caps - All high-performance Japanese capacitors ensure tightest DC stability and regulation
ErP Lot 6: 2013 - Compliant to the toughest energy standard available
PhaseWave Design - A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
Stealth Wires - All wires darkened for minimal visibility in chassis
OC Link™ - Allows 2 HCP Platinums to work in tandem to power the most demanding systems
Specifications
Size ATX
Edition High Current Pro
Wattage 1000 W
80 PLUS Certification 80 PLUS Platinum
Max. Efficiency 94 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Quad Rail
Rail 1 +12V 40 A
Rail 2 +12V 40 A
Rail 3 +12V 40 A
Rail 4 +12V 40 A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 160 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 6 x 4-pin Molex
  • 6 x 6+2-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 1 x FDD Power
  • 9 x SATA
Dimensions 150 x 86 x 190 mm (WxHxD)
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Antec

Additional Notes:
7 Year Direct Antec/Manufacturers Warranty

Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supplies
Power Supplies
Date Issued: 25th Oct 2017

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

Reviews
1000W Antec HCP-1000 Platinum, Full Modular 80PLUS Platinum 1x135mm Silent Fan, ATX, PSU is rated 3.0 out of 5 by 2.
Rated 5 out of 5 by from Excellent power supply and very efficient With energy monitor I can see how much power my pc is useing, and with my new power supply when my pc is running at 100%, it uses about 25% less power than the previous one.
Date published: 2015-11-25
Rated 1 out of 5 by from It blew up my motherboard I lost motherboard to this power supply and now I have no main PC and cannot afford to repair it. I can't even test to see if my broadwell CPU is dead or note, if the 64GB of g.skill is okay or the two GTX980 Matrix survived that massive explosion that occurred after power on. Never had this happen with another power supply in 25 years experience of maintaining my own computers.
Date published: 2015-11-13
