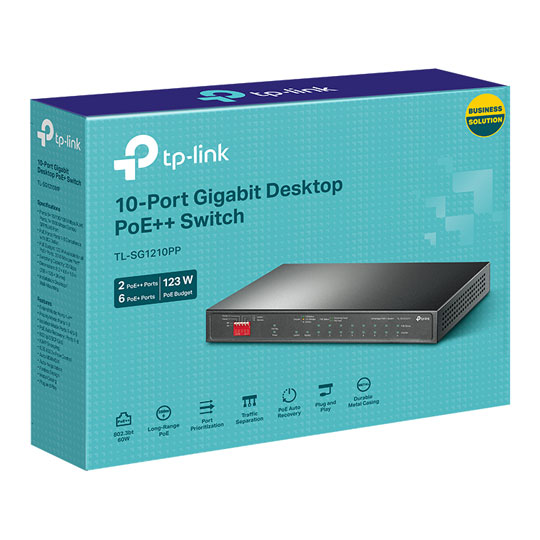

tp-link 10-Port Gigabit Desktop Switch with 6-Port PoE

10-Port tp-link TL-SG1210PP Gigabit Desktop Switch, Unmanaged, 9x 10/100/1000Mbps, 1x Combo SFP/RJ45, 6x PoE+/2x PoE++

Thumbnail 1 : tp-link 10-Port Gigabit Desktop Switch with 6-Port PoE Thumbnail 2 : tp-link 10-Port Gigabit Desktop Switch with 6-Port PoE Thumbnail 3 : tp-link 10-Port Gigabit Desktop Switch with 6-Port PoE
Scan code: LN139789 Manufacturer code: TL-SG1210PP
£169.99Item currently awaiting an ETA
Pre order
From £15.40 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £15.40
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £169.99
Total inc. interest: £184.81
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Power over Ethernet, Flexible Network Deployment

Compliant with the IEEE 802.3af/at/bt PoE standards, the switch supports a total PoE power budget of 123 W with 30 W max per PoE+ port and 60 W max per Poe++ port. When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.


Up to 250m Transmissions

With extend mode, the PoE transmission distance reaches up to 250m -perfect for IP Camera deployment in large areas.


One-click Port Priority

Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.


Traffic Separation for Security

Isolation Mode easily divides traffic for ports to avoid snooping/tampering and isolates broadcast storm for higher security.


PoE Auto Recovery

Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive-all without needing manual monitoring and restarts.

Features

• 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port.
• With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable.
• Works with IEEE 802.3af/at/bt compliant PDs.
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
• Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port.
• Supports PoE Power up to 123 W for all PoE ports.
• Plug and Play, no configuration and installation required.
• Up to 250m data and power transmitting range under Extend Mode.
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
• Isolation Mode allows one-click client traffic separation for higher security and performance.
• Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2.

Specifications
Edition Unmanaged Switch
Form Factor Desktop/Wall Mount
Total Network Ports
  • 9 x 10/100/1000 (Gigabit) RJ-45
  • 1 x 100/1000 (Gigabit) SFP
  • 1 x SFP 100/1000 (Shared with Gigabit RJ45)
PoE Support Type PoE+/PoE++
No. of Ports Providing PoE 8 x 10/100/1000 (Gigabit) RJ-45
Other Non-Network Ports
Switching Capacity 20 Gbps
Non-Blocking Throughput
Forwarding Rate 14.88 Mpps
MAC Address Table Size 4K Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3x
Acoustic Noise
Max. Power Consumption 144.1 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply External Power Supply (Included)
Material Metal
Includes
Dimensions (WxHxD) 209 × 26 × 126 mm
Weight
Additional Information
Scan Code LN139789
Model Number TL-SG1210PP
GTIN 4895252500356
