Scan code: LN116255 Manufacturer code: TL-SG1210MPE

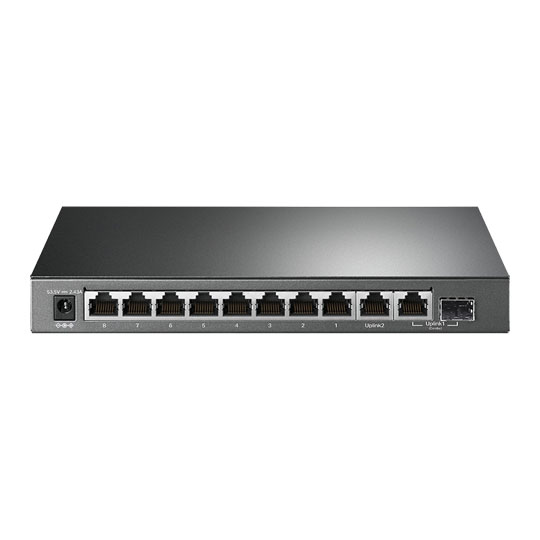

tp-link 10-Port Gigabit Easy Smart PoE+ Switch

10-Port tp-link TL-SG1210MPE Unmanaged 123W PoE+ Switch, 10/100/1000Mbps, Fanless Design, 20Gbps Switching Capacity

Thumbnail 1 : tp-link 10-Port Gigabit Easy Smart PoE+ Switch Thumbnail 2 : tp-link 10-Port Gigabit Easy Smart PoE+ Switch Thumbnail 3 : tp-link 10-Port Gigabit Easy Smart PoE+ Switch
Scan code: LN116255 Manufacturer code: TL-SG1210MPE
£100.99
Order now and get it tomorrow, Mon 25th Oct
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

10-Port Gigabit Easy Smart Switch with 8-Port PoE+

TP-Link TL-SG1210MPE is an easy smart switch with 9x gigabit RJ45 ports and 1x gigabit combo SFP/RJ45 port that requires no configuration. With 8x PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.


Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8x PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.


System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.


Intelligent Power Management

When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.


Durable Metal Casing

The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.

Features

• 9x gigabit RJ45 ports and 1x combo gigabit SFP/RJ45 port.
• Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable.
• Supports PoE power up to 123 W for all PoE ports*.
• Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery.
• Simple network set-up on top of plug-and-play connectivity.
• Web-based user interface and Easy Smart Configuration Utility simplify configuration.
• Fanless design lowers energy consumption and eliminates operating noise.

Specifications
Edition Smart Switch
Form Factor Desktop / 1U Rackmount
Total Network Ports
  • 9 x 10/100/1000 (Gigabit) RJ-45
  • 1 x SFP 100/1000 (Shared with Gigabit RJ45)
PoE Support Type PoE+
No. of Ports Providing PoE 8 x 10/100/1000 (Gigabit) RJ-45
Other Non-Network Ports
Switching Capacity 20 Gbps
Non-Blocking Throughput
Forwarding Rate 14.88 Mpps
MAC Address Table Size 4K Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Acoustic Noise
Max. Power Consumption 141.54 (220V / 50Hz with 123 W PD connected) W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply External Power Supply (Included)
Material
Includes
Dimensions (WxHxD) 209 x 26 x 126 mm
Weight
Additional Information
Scan Code LN116255
Model Number TL-SG1210MPE
GTIN 6935364052676
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
