0.5m (2ft) FS for Mellanox MCP1600-C0005 Passive DAC Twinax Cable
0.5m (2ft) FS for Mellanox, MCP1600-C0005 Compatible, 100G, QSFP28, Passive Direct Attach Copper Twinax Cable
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.

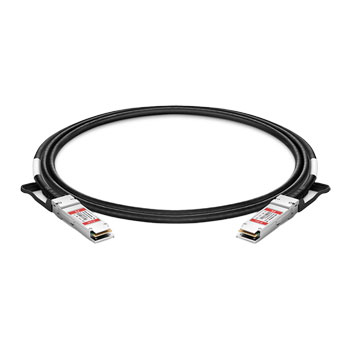

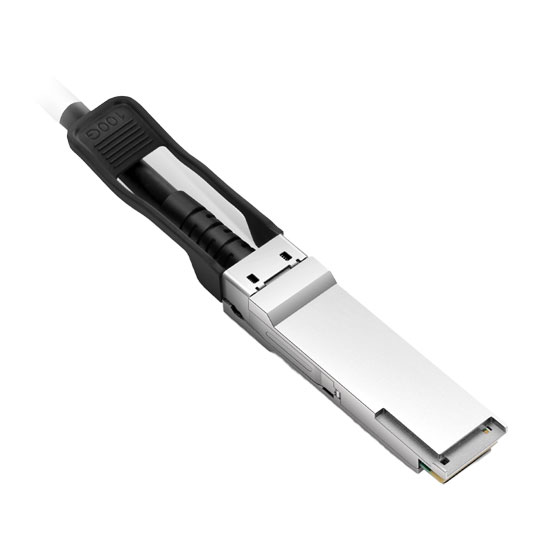

MCP1600-C0005 Compatible QSFP28 Passive DAC Twinax Cable
The 100G QSFP28 Passive Direct Attach Copper Twinax Cable offers a high-performance, cost-effective solution for establishing a 100-Gigabit link between switches' QSFP-100G ports within racks and across adjacent racks. This Direct Attach Copper cable provides low insertion loss and ultra-low crosstalk. It complies with IEEE 802.3, SFF-8665, and hot-pluggable QSFP28 MSA standards, ensuring compatibility and reliability.
Low Power Consumption for Energy-saving
These 34mm minimum bend direct attach copper are perfect for very short links and consume very little power (=0.5W), offering a cost-effective way to establish a 100-Gigabit link between QSFP-100G ports within racks and across adjacent racks.
Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.
Enable Seamless Connectivity for Your Network
FS offers the ability to configure the pre-set compatibility of either connector of the DAC cable online with FS BOX to connect Cisco to Arista, Dell to Juniper and any other mixes of configurations.
Easy Plug-and-Play
This cable offers hot pluggable functionality for enhanced uptime and improved serviceability. It's compliant with the industry-standard QSFP28 MSA, ensuring compatibility across various devices and systems.
• Low crosstalk.
• I2C based two-wire serial interface for EEPROM signature which can be customized.
• QSFP28 conforms to the Small Form Factor SFF8665.
• 4-Channel Full-Duplex Passive Copper Cable Transceiver.
• Support data rates: 25.78Gb/s (per channel).
• Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s).
• IEEE 802.3bj 100GEBASE-CR4.
