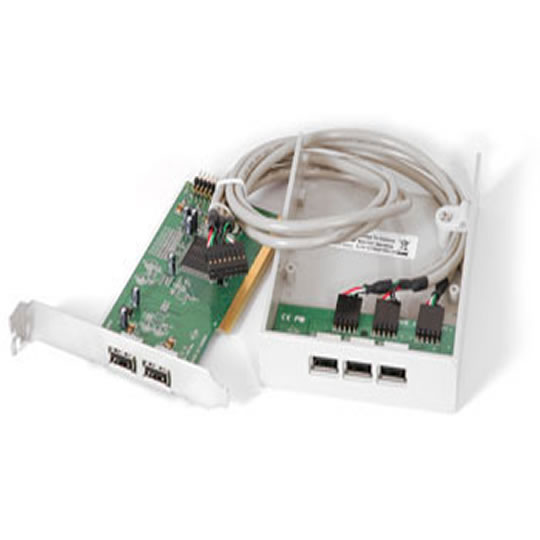

Scan 2 Port USB2 PCI card with 3 port Internal 3.5" Front Bay Hub

Scan code: LN3984 Manufacturer code: DH-U20PC2+3N

End of life

This product is no longer available to purchase.

Email me when the availability or price changes

SCANPROTECT Protect against installation damage for 28 days.

Product Overview Extend your capabilities
3 ports in the front, 2 ports at the back!!

Features
Attaching the 3.5" front bay easily enables 3 additional USB 2.0 ports to the front panel

Adds 2 USB 2.0 ports at the back of your computer

Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)

Compliant with Open Host Controller Interface Specification for USB Rev 1.0a

Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95

PCI multi-function device consists of two OHCI Host Controller cores for full/low-speed signaling and one EHCI Host Controller cores for high-speed signaling

32-bit 33 MHz host interface compliant to PCI Specification release 2.2

Supports PCI-Bus Power Management Interface Specification release 1.1

All downstream ports are capable to handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction

Plug & Play and Hot Swapping functions

DH-U20PC2+3N
2 PORTS USB 2.0 PCI CARD +
3 PORTS FRONT BAY

System Requirements
Windows 98SE/2000/ME/XP

Mac OS X 10.1

Features • Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps).
• 32-bit 33Mhz hot Interface compliant to PCI Specification release 2.2
• Auto speed selectable USB Type A downstream ports.
• Plug & Play and Hot Swapping functions.
• Connects up to a maximum of 127 USB devices through cascading multiple hubs.
