ASUS X570 motherboards

The latest X570 motherboards for the Ryzen 3000 series processors by ASUS

ASUS X570 Ryzen 3000 series motherboards - New legacy

Steel yourself for screaming speeds, insane bandwidth and intense satisfaction with the all-new ASUS X570 series motherboards. They’re primed for mighty Ryzen 3rd Gen CPUs, pumped with high-performance PCIe 4.0 and pitched at whatever level you desire. Whether you’re crafting for raw gaming power, striving for style or building for business, the diverse selection of ASUS X570 models and innovative features make it easy to find your perfect board.

Key features of ASUS X570 motherboards

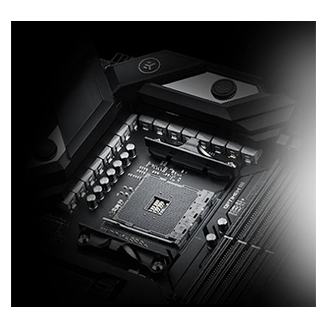

Extreme Power Solution

Extreme Power Solution

An over-engineered power solution featuring paired power stages ensure our X570 motherboards fuel the multi-threaded muscle of 3rd Gen Ryzen processors.

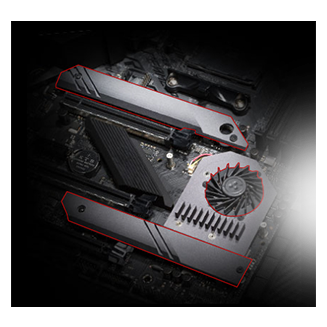

Comprehensive Cooling

Comprehensive Cooling

An array of cooling options, including an actively-cooled PCH heatsink, plus dedicated M.2 heatsinks, ensure ASUS X570 series motherboards deliver efficient, stable operation even when pushed hard.

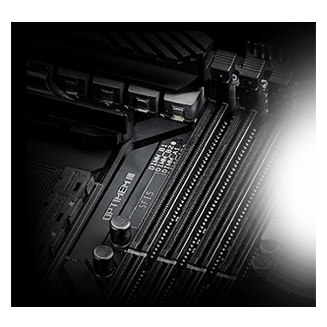

Proprietary Memory Design

Proprietary Memory Design

ASUS OptiMem memory trace layout unleashes the full performance potential of AMD’s Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.

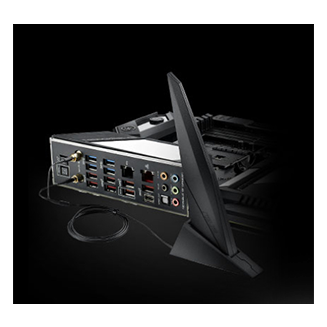

WiFi 6

Wi-Fi 6 (802.11ax)

The very latest Wi-Fi 6* standard guarantees extreme-speed, high-efficiency wireless connectivity for gaming thrills and more. With 802.11ax onboard, you’ll enjoy lower ping times on crowded networks and greatly-improved coverage and throughout.

*On selected models

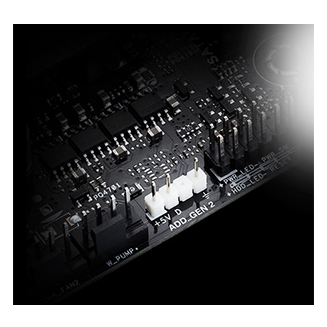

Gen 2 addressable RGB header

Gen 2 Addressable RGB Header

X570’s addressable RGB headers are now smart, so they instantly detect the exact number of LEDs on connected strips or gear. This allows effects to be perfectly matched, elevating RGB synchronization to new levels of precision.

*Auto-detection feature requires devices that are compatible with 2nd-gen headers. The new headers are also compatible with existing addressable RGB partner devices.

View the full X570 range

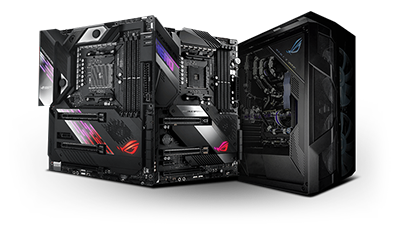

ROG Crosshair

ROG Crosshair

ROG Crosshair VIII motherboards feature comprehensive coolng to tame massive power and OptiMem III for stable, high-performance memory, creating the perfect foundation for AMD Ryzen power rigs.

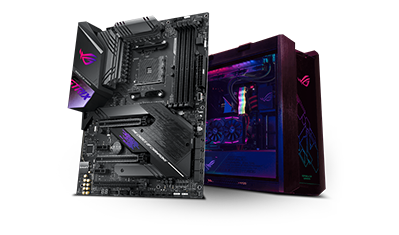

ROG Strix

ROG Strix

ROG Strix X570 motherboards are packed with next-gen networking, DIY-friendly features and customization options, ready for you to build a formidable gaming weapon that’s infused with ROG cred.

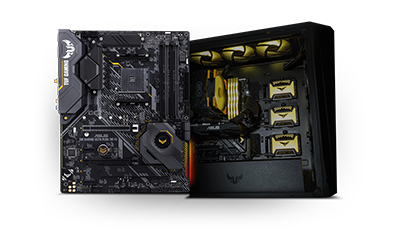

TUF Gaming

TUF Gaming

Legendary durability and reliability are now accessible to all, with TUF Gaming X570. Benefit from enhanced component compatibilty to find the right gear for your build.

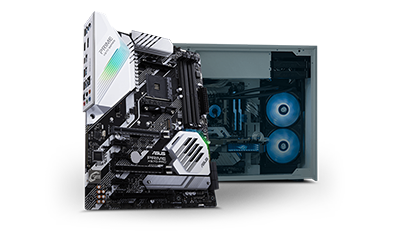

PRIME

PRIME

Prime X570 motherboards provide the perfect balance between power, performance and appearance. Overclocking and intelligent cooling are made accessible to all, underscored by monochromatic style.

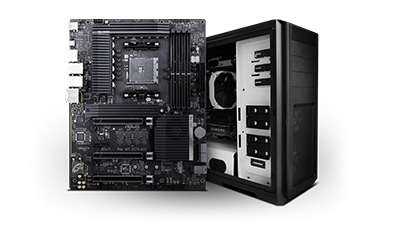

PRO

PRO

ASUS Pro WS X570-ACE deliveres the dependable stability, thoughtful design and trusted features you need for commercial and creative endeavors. Where performance, expansion, control and connectivity matter most, make it your first choice.

ASUS X570 board specifications

*The specifications depend on different CPU types. The listed specifications are based on 3rd Gen AMD Ryzen™ Processors.

ROG Crosshair VIII Formula

ROG Crosshair VIII Formula

ROG Crosshair VIII Hero (WI-FI)

ROG Crosshair VIII Hero (WI-FI)

ROG Crosshair VIII Hero

ROG Crosshair VIII Hero

ROG Crosshair VIII Impact

ROG Crosshair VIII Impact

ROG Strix E Gaming

ROG Strix X570-E Gaming

ROG Strix F Gaming

ROG Strix X570-F Gaming

ROG Strix I Gaming

ROG Strix X570-I Gaming

TUF Gaming Plus (WI-FI)

TUF Gaming X570-Plus (WI-FI)

TUF Gaming Plus

TUF Gaming X570-Plus

Prime Pro

Prime X570-Pro

Prime P

Prime X570-P

Pro Ace

Pro WS X570-ACE

Model Name ROG Crosshair VIII Formula ROG Crosshair VIII Hero (WI-FI) ROG Crosshair VIII Hero ROG Crosshair VIII Impact ROG Strix X570-E Gaming ROG Strix X570-F Gaming ROG Strix X570-I Gaming TUF Gaming X570-Plus (WI-FI) TUF Gaming X570-Plus Prime X570-Pro Prime X570-P PRO WS X570-ACE
CPU AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen™ / 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Chipset AMD X570 Chipset
Form Factor ATX ATX ATX Mini-DTX ATX ATX ITX ATX ATX ATX ATX ATX
Memory 4 DDR4/128GB 4 DDR4/128GB 4 DDR4/128GB 4 DDR4/64GB 4 DDR4/128GB 4 DDR4/128GB 4 DDR4/64GB 4 DDR4/128GB 4 DDR4/128GB 4 DDR4/128GB 4 DDR4/128GB 4 DDR4/128GB
Graphics Output N/A N/A N/A N/A HDMI 2.0 / DP 1.2 HDMI 2.0 / DP 1.2 HDMI 2.0 / DP 1.4 HDMI / DP HDMI / DP HDMI / DP HDMI HDMI / DP
Multi-GPU Support 2-way SLI & 3-way CFX 2-way SLI & 3-way CFX 2-way SLI & 3-way CFX N/A 2-way SLI & 3-way CFX 2-way SLI & 3-way CFX N/A 2-way CFX 2-way CFX 2-way SLI & 3-way CFX 2-way CFX 2-way SLI & 3-way CFX
Expansion Slots PCIe 4.0x16 2 @ x16 or 8x/8x 2 @ x16 or 8x/8x 2 @ x16 or 8x/8x 1 @ x16 2 @ x16 or 8x/8x 2 @ x16 or 8x/8x 1 @ x16 1 @ x16 1 @ x16 2 @ x16 or 8x/8x 1 @ x16 2 @ x16 or 8x/8x
PCIe 4.0x4 1 @ x4 1 @ x4 1 @ x4 N/A 1 [email protected] x4 1 [email protected] x4 N/A 1 [email protected] x4 1 [email protected] x4 1 [email protected] x4 1 [email protected] x4 1 [email protected] x8
PCIe 4.0x1 1 1 1 N/A 2 2 N/A 2 3 3 3 1
Storage & Connectivity SATA 6Gb/s 8 8 8 4 8 8 4 8 8 6 6 4
U.2 0 0 0 0 0 0 0 0 0 0 0 1
M.2 1x 22110 1x 22110 1x 22110 1x 2280 1x 22110 1x 22110 1x 2280 1x 22110 1x 22110 1x 22110 1x 2280 1x 22110
1x 2280 1x 2280 1x 2280 1x 2280 2 2 N/A 2 3 3 3 1
USB Ports USB 3.2 Gen 2 Front Panel Connector 1 1 1 1 1 1 0 0 0 1 0 0
USB 3.2 Gen 2 7x Type-A / 1x Type-C (Back) 7x Type-A / 1x Type-C (Back) 7x Type-A / 1x Type-C (Back) 5x Type-A / 1x Type-C (Back) 7x Type-A / 1x Type-C (Back) 3x Type-A / 1x Type-C (Back) 3x Type-A / 1x Type-C (Back) 2x Type-A / 1x Type-C (Back) 2x Type-A / 1x Type-C (Back) 3x Type-A / 1x Type-C (Back) 4x Type-A (Back) 4x Type-A / 1x Type-C (Back)
USB 3.2 Gen 1 4x Type-A (Back) / 4x Type-A (Front) 4x Type-A (Back) / 2x Type-A (Front) 4x Type-A (Back) / 2x Type-A (Front) 2x Type-A (Back) / 2x Type-A (Front) 4x Type-A (Back) / 2x Type-A (Front) 4x Type-A (Back) / 2x Type-A (Front) 4x Type-A (Back) / 2x Type-A (Front) 4x Type-A (Back) / 2x Type-A (Front) 4x Type-A (Back) / 2x Type-A (Front) 4x Type-A (Back) / 2x Type-A (Front) 2x Type-A (Back) / 4x Type-A (Front) 2x Type-A (Back) / 4x Type-A (Front)
USB 2.0 4 4 4 2 4 4 2 4 4 4 5 4
Networking Gigabit Ethernet Aquantia 5G LAN / Intel I211-AT Realtek 2.5G LAN / Intel I211-AT Realtek 2.5G LAN / Intel I211-AT Intel I211-AT Realtek 2.5G LAN / Intel I211-AT Intel I211-AT Intel I211-AT Realtek L8200A Realtek L8200A Intel I211-AT Realtek 8111H Intel I211-AT / Realtek 8117
Wireless Intel Wireless AX200 2 x 2 / Wi-Fi 6 with MU-MIMO / Dual Band Intel Wireless AX200 2 x 2 / Wi-Fi 6 with MU-MIMO / Dual Band N/A Intel Wireless AX200 2 x 2 / Wi-Fi 6 with MU-MIMO / Dual Band Intel Wireless AX200 2 x 2 / Wi-Fi 6 with MU-MIMO / Dual Band N/A Intel Wireless AX200 2 x 2 / Wi-Fi 6 with MU-MIMO / Dual Band Intel Wireless AC9260 2 x 2 / Wi-Fi 5 with MU-MIMO / Dual Band N/A N/A N/A N/A
Bluetooth Bluetooth v5.0 Bluetooth v5.0 N/A Bluetooth v5.0 Bluetooth v5.0 N/A Bluetooth v5.0 Bluetooth v5.0 N/A N/A N/A N/A
Audio Codec SupremeFX S1220 SupremeFX S1220 SupremeFX S1220 SupremeFX S1220 SupremeFX S1220 SupremeFX S1220 SupremeFX S1220 Realtek S1200A Realtek S1200A Realtek S1200A Realtek S1200A Realtek S1200A
Effects Sonic Studio III / Sonic Studio Virtual Mixer / Sonic Radar III / DTS Sound Unbound Sonic Studio III / Sonic Studio Virtual Mixer / Sonic Radar III / DTS Sound Unbound Sonic Studio III / Sonic Studio Virtual Mixer / Sonic Radar III / DTS Sound Unbound Sonic Studio III / Sonic Studio Virtual Mixer / Sonic Radar III / DTS Sound Unbound Sonic Studio III / Sonic Studio Virtual Mixer / Sonic Radar III / DTS Sound Unbound Sonic Studio III / Sonic Studio Virtual Mixer / Sonic Radar III / DTS Sound Unbound Sonic Studio III / Sonic Studio Virtual Mixer / Sonic Radar III / DTS Sound Unbound DTS Custom for Gaming Headsets DTS Custom for Gaming Headsets Crystal Sound 3 N/A N/A
AURA AURA Sync Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes N/A
  4-pin RGB HEader 2 2 2 1 2 2 1 2 2 2 2 N/A
Addressable RGB Header 2 2 2 2 2 2 1 1 1 1 1 N/A
Pre-Mounted I/O Sheild Yes Yes Yes Yes Yes Yes N/A N/A N/A Yes N/A N/A
SafeSlot Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
M.2 Cooling Solution M.2 Heatsink M.2 Heatsink M.2 Heatsink SO-DIMM.2 with Heatsink M.2 Heatsink M.2 Heatsink M.2 Audio Combo Card M.2 Heatsink M.2 Heatsink M.2 Heatsink N/A M.2 Heatsink

Designed for AMD Ryzen 3rd Gen and PCIe 4.0
