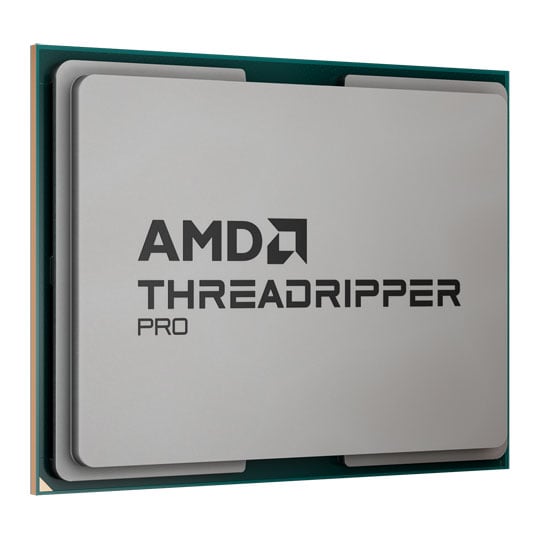

AMD Ryzen™ Threadripper™ PRO
AMD Ryzen™ Threadripper™ PRO
The Ultimate Processor for Professional Workstations
AMD Threadripper PRO CPUs deliver unmatched performance across a wide range of workstation workloads including visualisation and rendering, scientific computing and AI
Designed for the most demanding applications, 3XS workstations powered by AMD Ryzen Threadripper PRO are fine-tuned by our hardware engineers and workload specialists for reliability you can trust.
Explore the benefits in the tabs below.
AMD Ryzen Threadripper PRO for AEC & BIM
AEC (Architecture Engineering and Construction) software applications enable the creation of accurate 3D models to help visualise buildings and construction projects prior to their development. BIM (Building Information Modelling) applications take this process a step further with the ability to then analyse these models within their environments, to enable better planning and lifecycle management.
This dual-nature is challenging as applications such as Revit require high-frequency CPUs while applications such as Ansys require lots of CPU cores. AMD Ryzen Threadripper PRO processors offer the best of both worlds, with a high single-core clock frequency that expedites lightly-threaded design and modelling tasks, and up to 96 CPU cores to accelerate simulations and solvers.
High single-core clock frequency
Up to 96 CPU cores
Up to 2TB DDR5 memory
128 PCIe 5.0 lanes for GPUs/SSDs/NICs
Industry Leading Performance
Autodesk® Revit® (Model Creation)
Corona Render
AutoCAD® (3D Graphics)
Autodesk® Revit® (Model Creation)
Industry Leading Specifications
| Processor | AMD Ryzen Threadripper PRO 9000-series | AMD Ryzen Threadripper PRO 7000-series | Intel Xeon W-3500-series |
|---|---|---|---|
| Architecture | Zen 5 | Zen 4 | Sapphire Rapids |
| Socket | TR5 | TR5 | 4677 |
| Cores / Threads | Up to 96 / 192 | Up to 96 / 192 | Up to 60 / 120 |
| Base Frequency | Up to 4.5GHz | Up to 4GHz | Up to 3.2GHz |
| Turbo Frequency | Up to 5.4GHz | Up to 5.1GHz | Up to 4.8GHz |
| Level 3 Cache | Up to 384MB | Up to 384MB | Up to 105MB |
| Memory Controller | Eight-channel | Eight-channel | Eight-channel |
| Maximum Memory | 2TB ECC Registered | 2TB ECC Registered | 4TB ECC Registered |
| Memory Type | DDR5 | DDR5 | DDR5 |
| Memory Frequency | 6,400MHz | 5,200MHz | 4,800MHz |
| PCIe 5.0 / 4.0 / 3.0 Lanes | 128 / 0 / 8 | 128 / 0 / 8 | 112 / 0 / 0 |
| TDP | 350W | 350W | Up to 420W |
AMD Ryzen Threadripper PRO 9000 Model Specifications
| Model | 9995WX | 9985WX | 9975WX | 9965WX | 9955WX |
|---|---|---|---|---|---|
| Cores / Threads | 96 / 192 | 64 / 128 | 32 / 64 | 24 / 48 | 16 / 32 |
| Base Frequency | 2.5GHz | 3.2GHz | 4.0GHz | 4.2GHz | 4.5GHz |
| Turbo Frequency | 5.4GHz | 5.4GHz | 5.4GHz | 5.4GHz | 5.4GHz |
| Level 3 Cache | 384MB | 256MB | 128MB | 128MB | 64MB |
| TDP | 350W | 350W | 350W | 350W | 350W |
| Buy | BUY | BUY | BUY | BUY | BUY |
Recommended Workstation Configurations
Request a custom workstation quote or view our ONLINE CONFIGURATOR.

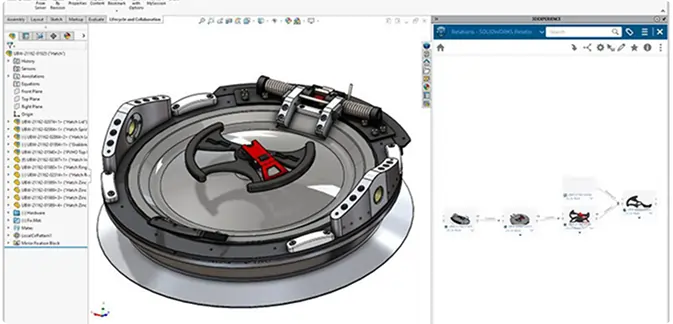

AMD Ryzen Threadripper PRO for CAD & CAE
Computer Aided Design (CAD) applications enable the creation of accurate 2D and 3D models to help visualise objects and scenarios prior to development and manufacturing. Computer Aided Engineering (CAE) applications take this process a step further with the ability to then analyse these models - in short, CAD is the process of designing a product and CAE is when you simulate and test it.
This dual-nature is challenging as applications such as AutoCAD require high-frequency CPUs while applications such as Ansys require lots of CPU cores. AMD Ryzen Threadripper PRO processors offer the best of both worlds, with a high single-core clock frequency that expedites lightly-threaded design and modelling tasks, and up to 96 CPU cores to accelerate simulations and rendering.
High single-core clock frequency
Up to 96 CPU cores
Up to 2TB DDR5 memory
128 PCIe 5.0 lanes for GPUs/SSDs/NICs
Industry Leading Performance
SPECapc® Solidworks® (CPU Composite)
Keyshot
SPECapc® PTC® Creo® (CPU Composite)
SPECviewperf® Catia®
Industry Leading Specifications
| Processor | AMD Ryzen Threadripper PRO 9000-series | AMD Ryzen Threadripper PRO 7000-series | Intel Xeon W-3500-series |
|---|---|---|---|
| Architecture | Zen 5 | Zen 4 | Sapphire Rapids |
| Socket | TR5 | TR5 | 4677 |
| Cores / Threads | Up to 96 / 192 | Up to 96 / 192 | Up to 60 / 120 |
| Base Frequency | Up to 4.5GHz | Up to 4GHz | Up to 3.2GHz |
| Turbo Frequency | Up to 5.4GHz | Up to 5.1GHz | Up to 4.8GHz |
| Level 3 Cache | Up to 384MB | Up to 384MB | Up to 105MB |
| Memory Controller | Eight-channel | Eight-channel | Eight-channel |
| Maximum Memory | 2TB ECC Registered | 2TB ECC Registered | 4TB ECC Registered |
| Memory Type | DDR5 | DDR5 | DDR5 |
| Memory Frequency | 6,400MHz | 5,200MHz | 4,800MHz |
| PCIe 5.0 / 4.0 / 3.0 Lanes | 128 / 0 / 8 | 128 / 0 / 8 | 112 / 0 / 0 |
| TDP | 350W | 350W | Up to 420W |
AMD Ryzen Threadripper PRO 9000 Model Specifications
| Model | 9995WX | 9985WX | 9975WX | 9965WX | 9955WX |
|---|---|---|---|---|---|
| Cores / Threads | 96 / 192 | 64 / 128 | 32 / 64 | 24 / 48 | 16 / 32 |
| Base Frequency | 2.5GHz | 3.2GHz | 4.0GHz | 4.2GHz | 4.5GHz |
| Turbo Frequency | 5.4GHz | 5.4GHz | 5.4GHz | 5.4GHz | 5.4GHz |
| Level 3 Cache | 384MB | 256MB | 128MB | 128MB | 64MB |
| TDP | 350W | 350W | 350W | 350W | 350W |
| Buy | BUY | BUY | BUY | BUY | BUY |
Recommended Workstation Configurations
Request a custom workstation quote or view our ONLINE CONFIGURATOR.
AMD Ryzen Threadripper PRO for Media & Entertainment
A typical M&E workflow may be made up of several packages: 3D design and animation - where artists undertake modelling, rigging, motion capture and photorealistic rendering; video editing - integrating CGI or VFX and colour grading; and photo editing - using large raw files and more demanding software tools to produce stunning imagery, with higher resolutions and clarity than ever before.
AMD Ryzen Threadripper PRO processors are particularly well-suited to M&E workflows thanks to these three key capabilities. Firstly, delivering high frequency single-core performance in modelling and design packages; secondly, up to 96 CPU cores to accelerate simulations and solvers; and thirdly, 128 PCIe 5.0 lanes for accelerated GPU-rendering.
High single-core clock frequency
Up to 96 CPU cores
Up to 2TB DDR5 memory
128 PCIe 5.0 lanes for GPUs/SSDs/NICs
Industry Leading Performance
Corona Render
Keyshot
Industry Leading Specifications
| Processor | AMD Ryzen Threadripper PRO 9000-series | AMD Ryzen Threadripper PRO 7000-series | Intel Xeon W-3500-series |
|---|---|---|---|
| Architecture | Zen 5 | Zen 4 | Sapphire Rapids |
| Socket | TR5 | TR5 | 4677 |
| Cores / Threads | Up to 96 / 192 | Up to 96 / 192 | Up to 60 / 120 |
| Base Frequency | Up to 4.5GHz | Up to 4GHz | Up to 3.2GHz |
| Turbo Frequency | Up to 5.4GHz | Up to 5.1GHz | Up to 4.8GHz |
| Level 3 Cache | Up to 384MB | Up to 384MB | Up to 105MB |
| Memory Controller | Eight-channel | Eight-channel | Eight-channel |
| Maximum Memory | 2TB ECC Registered | 2TB ECC Registered | 4TB ECC Registered |
| Memory Type | DDR5 | DDR5 | DDR5 |
| Memory Frequency | 6,400MHz | 5,200MHz | 4,800MHz |
| PCIe 5.0 / 4.0 / 3.0 Lanes | 128 / 0 / 8 | 128 / 0 / 8 | 112 / 0 / 0 |
| TDP | 350W | 350W | Up to 420W |
AMD Ryzen Threadripper PRO 9000 Model Specifications
| Model | 9995WX | 9985WX | 9975WX | 9965WX | 9955WX |
|---|---|---|---|---|---|
| Cores / Threads | 96 / 192 | 64 / 128 | 32 / 64 | 24 / 48 | 16 / 32 |
| Base Frequency | 2.5GHz | 3.2GHz | 4.0GHz | 4.2GHz | 4.5GHz |
| Turbo Frequency | 5.4GHz | 5.4GHz | 5.4GHz | 5.4GHz | 5.4GHz |
| Level 3 Cache | 384MB | 256MB | 128MB | 128MB | 64MB |
| TDP | 350W | 350W | 350W | 350W | 350W |
| Buy | BUY | BUY | BUY | BUY | BUY |
Recommended Workstation Configurations
Request a custom workstation quote or view our ONLINE CONFIGURATOR.
AMD Ryzen Threadripper PRO for AI Model Development
Development is the initial stage of any AI journey, prior to training and inferencing. As such it is seen as the most critical phase, as your development foundations set the scene for all future model training, fine-tuning and scaling of your projects. Mistakes made at the development phase can be very costly further down the line in terms of both expenditure and time, thus hardware selection to carry out development tasks is crucial to get right.
AMD Ryzen Threadripper PRO processors are particularly well-suited for AI model development thanks to these three key capabilities. Firstly, 128 PCIe 5.0 lanes for supporting multiple GPUs, NICs and SSDs for faster data processing; secondly, up to 96 CPU cores for rapid data preparation; and thirdly, up to 2TB system memory to cache large datasets.
128 PCIe 5.0 lanes for GPUs/SSDs/NICs
Up to 96 CPU cores
Up to 2TB DDR5 memory
Industry Leading Performance
DeepSeek R1 32B LLM
ComfyUI + Flux.1[schnell] Diffusion Model
SPEC® Workstation AI & ML3
[Fixed Frequency, 96 Cores]
Industry Leading Specifications
| Processor | AMD Ryzen Threadripper PRO 9000-series | AMD Ryzen Threadripper PRO 7000-series | Intel Xeon W-3500-series |
|---|---|---|---|
| Architecture | Zen 5 | Zen 4 | Sapphire Rapids |
| Socket | TR5 | TR5 | 4677 |
| Cores / Threads | Up to 96 / 192 | Up to 96 / 192 | Up to 60 / 120 |
| Base Frequency | Up to 4.5GHz | Up to 4GHz | Up to 3.2GHz |
| Turbo Frequency | Up to 5.4GHz | Up to 5.1GHz | Up to 4.8GHz |
| Level 3 Cache | Up to 384MB | Up to 384MB | Up to 105MB |
| Memory Controller | Eight-channel | Eight-channel | Eight-channel |
| Maximum Memory | 2TB ECC Registered | 2TB ECC Registered | 4TB ECC Registered |
| Memory Type | DDR5 | DDR5 | DDR5 |
| Memory Frequency | 6,400MHz | 5,200MHz | 4,800MHz |
| PCIe 5.0 / 4.0 / 3.0 Lanes | 128 / 0 / 8 | 128 / 0 / 8 | 112 / 0 / 0 |
| TDP | 350W | 350W | Up to 420W |
AMD Ryzen Threadripper PRO 9000 Model Specifications
| Model | 9995WX | 9985WX | 9975WX | 9965WX | 9955WX |
|---|---|---|---|---|---|
| Cores / Threads | 96 / 192 | 64 / 128 | 32 / 64 | 24 / 48 | 16 / 32 |
| Base Frequency | 2.5GHz | 3.2GHz | 4.0GHz | 4.2GHz | 4.5GHz |
| Turbo Frequency | 5.4GHz | 5.4GHz | 5.4GHz | 5.4GHz | 5.4GHz |
| Level 3 Cache | 384MB | 256MB | 128MB | 128MB | 64MB |
| TDP | 350W | 350W | 350W | 350W | 350W |
| Buy | BUY | BUY | BUY | BUY | BUY |
Recommended Workstation Configurations
Request a custom workstation quote or browse our range of systems below.
