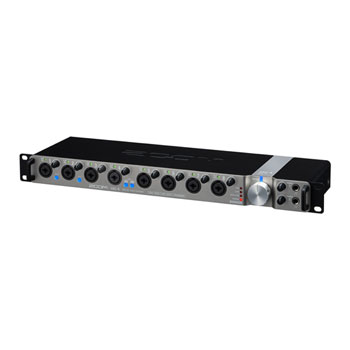

Zoom UAC-8 Audio Converter

Zoom UAC-8 - Ultra-Low Latency USB 3.0 Audio Interface, 8 Mic Pre's / 10 Out, ADAT I/O

Zoom
Scan code: LN65792 Manufacturer code: ZRCUAC8 Request call
£399.00
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
3xs Approved High End
Free Delivery Delivery options Free By DPD On 7th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview USB 3.0 SuperSpeed Audio Converter for Mac and PC
There’s a whole new world of possibilities for Mac and PC Creators — high-speed, high-resolution, and low-latency. Upgrade your rig with the rackmountable UAC-8, and add 18 inputs and 20 outputs to your USB 3.0-equipped Mac or Windows computer—even your iPad.* Plug in a microphone, line-level device, or instrument and start bringing your ideas to life, or take the UAC-8 onstage to enable high-res audio playback, all the way up to 24-bit/192 kHz.

* Apple Camera Connection kit or Lightning to USB Camera Adapter required

USB 3.0 SuperSpeed
The USB 3.0 SuperSpeed transfer protocol used by the UAC-8, with a speed of 2.0 ms roundtrip @ 96 kHz / 32 samples, is ten times faster than USB 2.0 and six times faster than FireWire 800. That not only ensures low latency, it provides a data stream that's unaffected by computer jitter (slight variations in timing), so there's no need to connect an external master clock source.

The Hardware

INPUTS

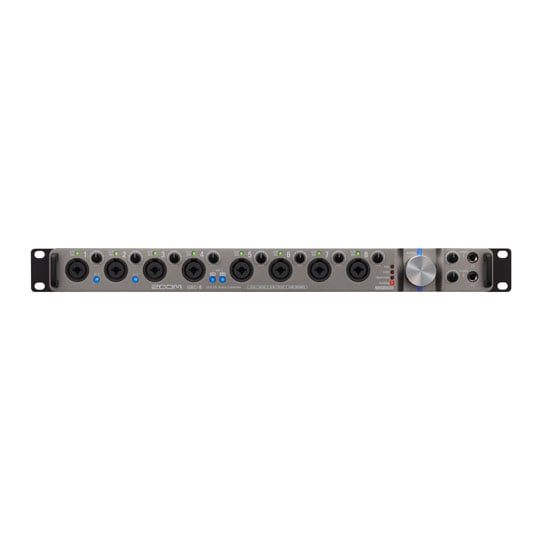

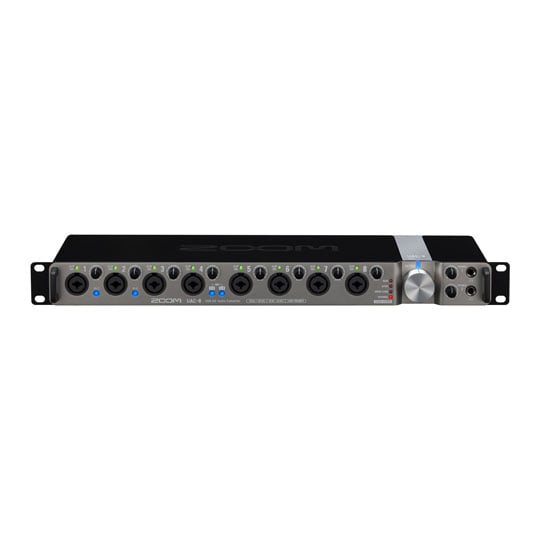

The UAC-8 provides a wide variety of both analog and digital connectors. 8 front panel combo XLR/TRS inputs accept mic- and line-level signals, and you can even plug instruments directly into Inputs 1 and 2. Dedicated input gain controls and Clip LEDs make it easy to set optimum input levels, and a Phantom Power switch enables the use of condenser microphones.

OUTPUTS

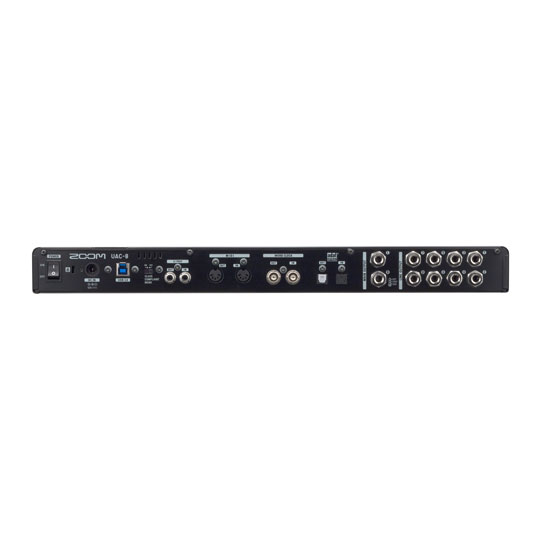

The UAC-8 has dual balanced analog TRS output jacks for connection to monitors, and there are also 8 discrete balanced TRS analog line outputs for multichannel monitoring or connection to external effects devices. A large front-panel Output knob offers fast control over output level, and there are two independent ¼" stereo headphone jacks, each with its own dedicated volume control, for private monitoring.

DIGITAL I/O
8 ADAT and stereo S/PDIF digital inputs/outputs allow for the connection of up to 10 external channels, and built-in Word Clock enables easy integration into any system. In addition, MIDI In and Out is provided to allow interfacing with devices such as electronic keyboards and drum machines.

Upsampling, Standalone Mode
The UAC-8 uses high-end components such as the AKM AK5388 analog-to-digital converter and AKM AK4413 digital-to-analog converter. In addition, the UAC-8 performs 4-times upsampling during both analog-to-digital and digital-to-analog conversion. In other words, when the sampling frequency is set to 44.1 kHz or 48 kHz, the UAC-8 processes the signal at high resolution 176.4 kHz or 192 kHz.

For A/D conversion, this means less aliasing noise; for D/A conversion, this means increased clarity and fidelity.

In standalone mode, the UAC-8 can be used as an 8-channel mic preamp and analog-to-digital or digital-to-analog converter without being connected to a computer. Features • 18-in/20-out USB 3.0 SuperSpeed audio interface
• Standalone mode allows use as an 8-channel mic preamp and A/D or D/A converter without connection to a computer
• Support for recording and playback of up to 24-bit/192 kHz high-resolution audio
• Low latency audio streaming
• 8 combo balanced XLR/TRS analog input connectors accept both mic and line-level signal
• High-performance mic preamps with up to +60dB of amplification
• Hi-Z switches allow direct connection of electric guitar or bass (INPUT1, INPUT2)
• Independent gain controls and clip LEDs for each input
• Switchable +48 V phantom power (INPUTS 1-4, INPUTS 5-8)
• 10 balanced TRS output jacks for connection to mixers, amplifiers, self-powered speakers, headphones, or effects devices
• Dual front-panel 1/4" headphone outputs with dedicated volume controls
• Large knob output volume control
• 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
• Asynchronous transfer system unaffected by computer jitter
• S/PDIF IN/OUT: 2IN / 2OUT, up to 24-bit/192 kHz
• ADAT Optical IN/OUT: 2 IN / 2 OUT at 192/176.4 kHz (S/MUX4 compatible), 4 IN/4 OUT at 96/88.2 kHz (S/MUX compatible), 8 IN / 8 OUT at 48/44.1 kHz
• Word Clock in/out
• Clock source indicator
• MIDI in/out
• Rack-mountable (1U space)
• Robust metal housing
• Works with all USB 3.0-equipped Mac and Windows computers and Apple iPad*
* Apple Camera Connection kit or Lightning to USB Camera Adapter required
Specifications
Specifications
Computer Interface Type USB 3
Analogue Inputs (Total) 8
Analogue Outputs (Total) 8
Connections (Input)
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max)
Bit Resolution
iPad Compatible No
Dynamic Range
Connections (Output)
Dimensions (mm)
DSP Processing No
Misc. Notes
