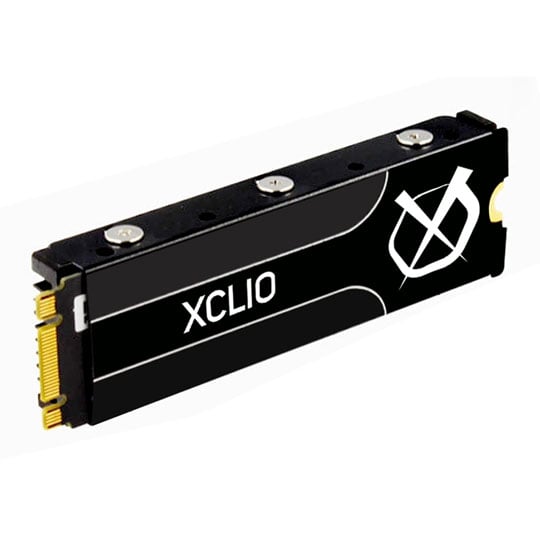

Xclio M.2 Black PRO Heat Sink Cooling Kit with Thermal Pads & Screw Driver for PC and PS5

Xclio SP5HS-M2 PRO M.2 2280 Heat Sink Cooling Kit NVMe/NGFF with thermal pads and Screw driver PC/PS5 Black

Thumbnail 1 : Xclio M.2 Black PRO Heat Sink Cooling Kit with Thermal Pads & Screw Driver for PC and PS5 Thumbnail 2 : Xclio M.2 Black PRO Heat Sink Cooling Kit with Thermal Pads & Screw Driver for PC and PS5 Thumbnail 3 : Xclio M.2 Black PRO Heat Sink Cooling Kit with Thermal Pads & Screw Driver for PC and PS5 Thumbnail 4 : Xclio M.2 Black PRO Heat Sink Cooling Kit with Thermal Pads & Screw Driver for PC and PS5
Scan code: LN119059 Manufacturer code: SP5HS-M2
Was: £14.48
£9.98
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 6th Dec to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview
Xclio PRO Passive Cooling Kit for M.2 SSD for PC and PS5 Console
Your M.2 SSD may get hot and throttle back on the data rate. This M.2 SSD heatsink effectively reduces SSD temperature by dissipating heat to help maintain system stability.
With double-sided clip design, 6 adjustable height screws, and 2 spare screws are suitable for M.2 NVME SSD of various heights, stable installation, better protection of your M.2 SSD with great heat dissipation performance.
This Xclio Passive cooling kit consists of a black hi-grade aluminum heatsink with thermal pads and a screwdriver.
Made from Nano Silicon Grease Material, with good thermal conductivity ability. Soft enough and good ductility, compatible with uneven surfaces of the M.2 SSD. Low viscosity, with no damage to the M.2 SSD.
It also asthetically improves your system in hiding your green or red or orange bare PCB SSD to all Black


Features Reduces M.2 SSD heat between 15 to 30 degrees and enhances performance and logivity of your SSD & also improces the asthetics of your PC system and the No.1 choice for PS5 Console
Compatible with Singel/Double sided M.2 NVME NGFF SSD 22x80
Supports standard M.2 Next Generation Form Factor (NGFF) 2280 single sided type SSDs, SATA and NVMe
Three Nano Silicon Thermal conductive adhesive Pads
Aluminum body, Anodic Oxidation Surface Treatred

Contents
Mini Screwdriver
Flat Screws for heatsink
10x Thermal Blue Square pads 0.8mm Thickness (for resting on top of the SSD Chips)
1x Blue Thermal Pad 1mm Thickness (for resting on top full length of the SSD)
1x Red Thermal Pad 0.5mm Thickness (for resting on the Bottom of the SSD)


Installation Instructions how to install onto your M.2 SSD

*Please note when installing the thermal gum please remove the protective plastic cover


1) Using the 10 squares stick + 1 Thinner Long strip
a) Place the red or pale blue strip (Please note this is the thinnest Strip) on the bottom/underside of the M.2 SSD
b) Place Little square pads 3 or 5 units depending on amount of chips (from the 10 units in the pack) covering the chips and leave spaces on the PCB where there is no chip
c) Place the SSD with the screw notch matching the screw notch into/onto the tray while the XCILO is facedown
d) Place the heat sink smooth face down resting on top of the SSD little blue pads again matching the screw hole notch creating a type of sandwich then hold firmly while you screw the screws in to lock it all together - job done ready for PS5 installation

2) Use just the two long strips (Fat one top, Thin one bottom)
a) Place the Red (or pale blue strip) Please note this is the thinnest Strip on the bottom/underside of the M.2 SSD
b) Place the Blue (fatter Strip) on the top Side of the M.2 SSD covering the length of the SSD
c) Place the SSD with the screw notch matching the screw notch into/onto the tray while the XCILO is facedown
d) Place the heat sink smooth face down resting on top of the SSD with the blue strip matching the screw hole notch creating a type of sandwich then hold firmly while you screw the screws in to lock it all together - job done ready for PS5 installation
