Vizrt TriCaster Mini X HDMI Bundle

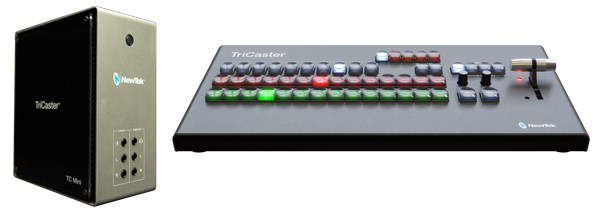

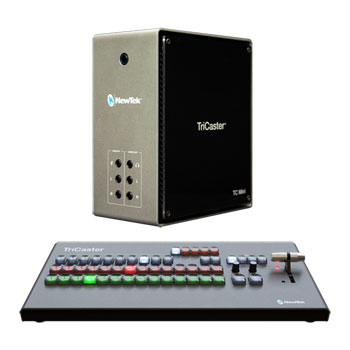

Vizrt TriCaster Mini X HDMI Bundle, Switching, Streaming, Recording, Tricaster Mini X HDMI + Mini CS + Case
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
Vizrt - 'TriCaster Mini X HDMI Bundle'
Freedom in Live ProductionTriCaster® Mini X gives producers at any level the freedom to create and share video wherever and whenever they want using anything from a smartphone to a 4K camera – truly demonstrating the power of software defined visual storytelling.
AccessibleStorytellers should be able concentrate on telling the story and the Mini X has everything needed for producers to do that, right at their desk. Video switching, media playback, virtual sets, ability to add graphics, record, stream, and much more. TriCaster Mini X brings the possibilities of professional live video production to anyone with a story to tell – without vast investments in infrastructure.
FlexibleNew producers or businesses that want to step-up their productions can use all their existing devices to tell their stories using the TriCaster Mini X. From cameras to microphones, off-the-shelf HDMI devices connect directly to the powerful Mini X in minutes to create professional level productions – without having to purchase any new equipment.
ScalableAs part of the NewTek ecosystem of products, users can take advantage of the many ways to scale-up their productions to suit any need. Built with NDI at its core, the Mini X is an easy to use, yet scalable solution that can be simplified or expanded, as necessary - even by using Spark I/O Converter – offering limitless possibilities.

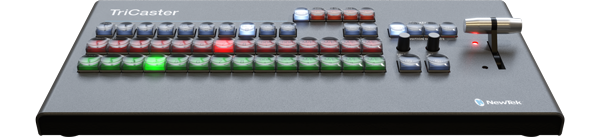

TriCaster Mini Control Panel
Portable, professional control for live productions of any size.The ideal traveling partner for TriCaster Mini, the TriCaster Mini CS provides studio-style control and a small footprint to deliver professional results…from the office, an event, or anywhere.
Expert Tools at Your Fingertips
Professionalism in Live ProductionEasy to set-up and with hundreds of capabilities, TriCaster Mini X puts expert tools at your fingertips, without you having to be a production expert.

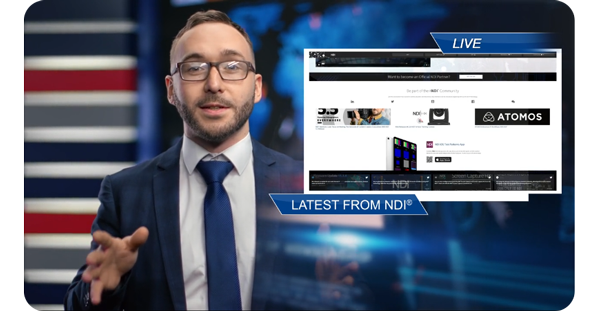

TriCaster Live Link
Introducing TriCaster Live LinkThis brand-new tool allows users to render web pages directly into the TriCaster and pull any web page elements into a production without the need for a 3rd party application. From graphics or images on a web page to videos from your organization’s internal training platforms - Live Link offers the ultimate in production agility and freedom.
Tell your story better than everStorytellers should be able concentrate on telling the story and the TriCaster Mini X offers all the tools for producers to do that, right at their desk. Video switching, media playback, virtual sets, ability to add graphics, record, stream, and much more.
Professional Power and Capability
All you need and more - in one placeThe TriCaster Mini X continues the all-in-one desktop form factor of the TriCaster Mini with increased power and capabilities, including access to 8 external sources with 4 integrated HDMI inputs and supporting modern resolutions up to 4Kp30.
TriCaster Mini X Spec
| Features | Specification | Network Video Input | 8 x IP video inputs via NDI®, resolution-independent |
|---|---|
| Digital Video Input | 4 x HDMI video connections supporting video input in any combination of standard formats, resolutions, and frame rates1 - 2160p: 29.97, 25 - 1080p: 59.94, 50, 29.97, 25 - 1080i: 59.94, 50 - 720p: 59.94, 50, 29.97, 25 - SD: 59.94, 50, 25 1 Available frame rates determined by session video standard (NTSC or PAL) |
| PTZ | Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232*, RS422*, and IP, with integrated controls and preset system *Requires USB to serial adapter - sold separately |
| Skype TX | Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication |
| Network Video Output | IP video output via NDI, optionally configurable for: - 4 x independent video mix outputs - 1 x UHD video mix output |
| Stream Output | 2 x streaming video output, independently configurable, with simultaneous stream archive |
| Monitor Outputs | 4 x mini display port with output adapters 3 x of the outputs support multiviewers using standard display resolutions |
| Mix/Effect Buses (M/E) | 4 x M/E buses supporting video re-entry 1 x Mix/Effect channel per bus with support for up to 2 sources 2 x KEY layers per bus |
| DSK Channels | 2 x DSK channels |
| Media | 5 x Media Players (2 x DDR, 2 x GFX, 1 x Sound) 15 x Media Buffers (5 x Live Link or Animation Buffers, 10 x Graphic Buffers) |
| Keyers | Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses - 8 x input keyers - 2 x media player keyers - 4 x M/E keyers - 15 x buffer keyers |
| Virtual Sets | Integrated LiveSet™ technology with 30+ live virtual sets and box effects included |
| DataLink | Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
| Macros | Record, store, edit and automate commands and user-configured operation sequences - Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers - Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions - Supports control via web-based interface |
| Recording | 4 x recording channels from either NDI® inputs or Mix outputs - Records and retains alpha channel data - 4 x QuickTime® archival video recorders (Native NDI Codec for recording)2 2 QuickTime Player not required for playback in common NLE applications |
| Storage | Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0 |
| Grab | Grab full-resolution, deinterlaced still images from external video sources and outputs |
| Export | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
| Audio Mixing | Integrated multi-channel audio mixer with support for stereo audio, and DSP’s |
| Local Audio Input | 2 x embedded digital audio inputs through HDMI conversion -1 x 1/4” (6.35 mm) balanced mic -2 x 1/4” (6.35 mm) balanced line |
| Local Audio Output | 2 x embedded digital audio outputs through HDMI conversion - 2 x 1/4” (6.35 mm) balanced line - 1 x 1/4” (6.35 mm) stereo headphones jack |
| Network Audio | Native support for network audio input and output via NDI® · Embedded audio supported for all NDI® input and output video signals · Integrated support3 for Dante™ networking protocol from Audinate® 3 Requires Dante Virtual Soundcard license from Audinate (sold separately) |
| Supported Media File Formats | Import, store, and play back multimedia files, with optional transcoding, including: · Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV,MJPEG, MPEG, MP4, WMV, WebM, and more · Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more |
| Processing Video | Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz |
| Latency | Processing Latency: ~1.0-1.5 frames Practical Throughput Latency: 4 frames |
| Tally | Support for network tally via NDI® |
| MIDI | Support for standard MIDI protocol enabling third-party device control |
| NIC | 2 x 1 Gigabit NIC |
| System Physical | NewTek Mini X system chassis, including adjustable handle and cable retention bracket - 4.23 x 9.08 x 7.89 in (10.74 x 23.1 x 20.1 cm) - 8.4 lbs (3.8 kg) |
