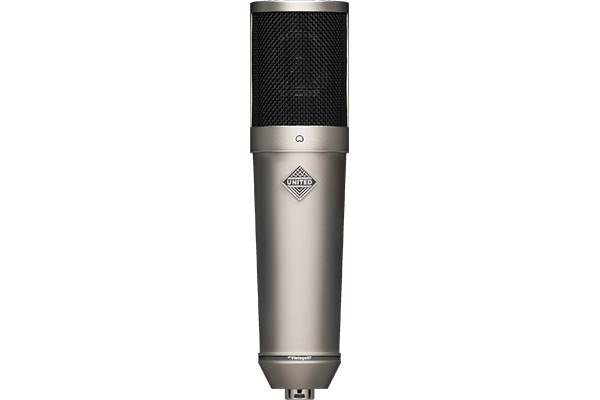

United Studio Technologies UT Vintage87 Dual-Diaphragm Condenser Microphone
United Studio Technologies - UT Vintage87 Dual-Diaphragm Cardioid Condenser Microphone
Email me when the availability or price changes
Finance this product
- From £19.49 / month (APR 16.9%) for 24 months or 0% for 4 months
- With a 10% deposit from just £9.97 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Dual-Diaphragm Condenser Microphone
United Studio Technologies - UT Vintage87
A legacy mic—minus the legacy priceThe UT Vintage87 gives everyone the sound and essence of one of the most in-demand microphone designs of all time. The UT Vintage87 features the same component selection and build quality of the UT Twin87 streamlined to a single, fixed true cardioid pattern. To make UT Vintage87 accessible, we simply stripped away several features from the UT Twin87 that some users may not need — no other cost-cutting measures were implemented. UT Vintage87 delivers instant gratification that works every time.

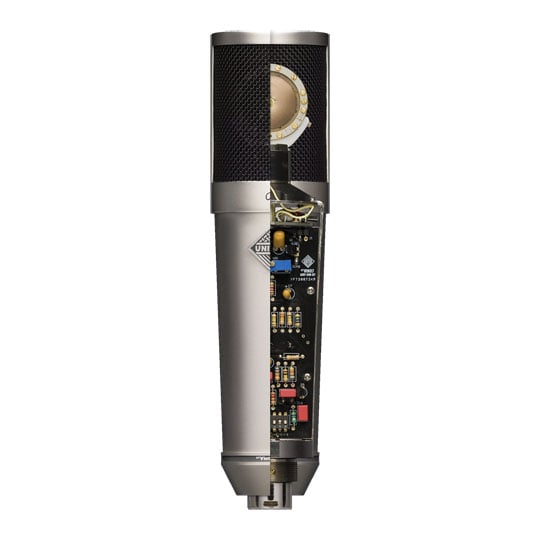

The UT Vintage87 features United’s own large-core, custom-wound, US-made output transformer, our own custom made 24k gold sputtered dual diaphragm/dual backplate K87-style capsule, and a whole assortment of hand-selected, premium components such as polystyrene, tantalum, multilayer ceramic, and WIMA film capacitors, metal and carbon film resistors, and hand-selected transistors.
The legendary sounds of your favourite records and films are now yours — minus the legendary price tag.
117 dBMax SPL
20 Hz - 20 kHzFrequency Response
27 ΩImpedance
At a glance
• Dual-diaphragm Cardioid Condenser Microphone
• UT Series capsule, 34mm brass, insulated dual backplate K87
• Field Effect Transistor
• Custom-wound UT Series transformer output, made in USA
• Suspension type shock mount and vintage-style pouch included

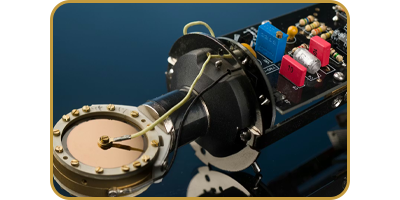

Custom United UT-K87 Capsule
pure and uncompromising sound qualityIn order to match the robust, versatile, and well-balanced sound of the classic, United Studio Technologies used their own custom-made K87-style, dual diaphragm/single backplate capsule. It’s an efficient circuit built from top-of-the-line components for pure and uncompromising sound quality.
The UT-K87 capsule is precision milled from brass, skinned with 6 micron Japanese PET film (mylar), and has 24k gold sputtered membrane. The capsules are skinned in a laboratory clean-room environment.

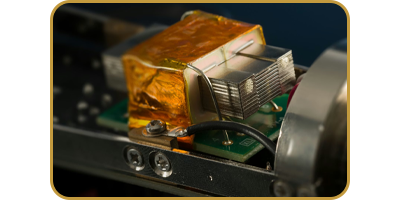

A Custom United Transformer
three dimensional soundUnited looked at many iterations of the original German output transformer used in this type of microphone, drawing particular inspiration from some of the older, larger frame designs. Knowing that size can sometimes be a limiting factor, United developed their own custom-wound transformer which has nearly four times the metal mass found in any “87-style” microphones. This ensures that there are no bottlenecks or weak links in the design, and that nothing is lost in translation as the signal is passed out of the microphone and down long cable runs. The transformer sounds open, with high headroom, and a clear, three dimensional sound — and will never impede low frequencies. United's custom-wound, US made transformer is built with large, all nickel laminations. They could have used a smaller or less expensive transformer; they simply refused to compromise.
Not Just Another Mic
high-end componentsThe classic original mic’s pattern-select circuitry is excluded from the UT Vintage87, yielding a hotter, more pure, and cleaner true-cardioid response. A switchable output filter blocks RF and EM interference.
In the case of the UT Vintage87, “Vintage” means timeless—not “old.” Based on the R&D of the UT Twin87, UT Vintage87 is built to a timeless standard for timeless sounds; including many high-end components more commonly found in boutique offerings. Now everyone has access to one of the world’s most renowned quality microphones.
Introducing the UT Vintage 87!
The Tech Spec
| Features | Specification | Type | Condenser Microphone |
|---|---|
| Capsule | UT Series, 34mm brass, insulated dual backplate K87 |
| Diaphragm | Dual-diaphragm, 6 micron, 24k gold sputtered Mylar (PET film) |
| Capsule Sensitivity | -34dB @ 60v |
| Frequency Response | 20 Hz - 20 kHz |
| Polar Pattern | Cardioid |
| SPL | 117 dB (127 dB w/ Pad) @ <.5% THD |
| Output Impedance | 27 Ω |
| Output Connector | 24k gold plated XLR, pin 2 HOT, pin 1 GND |
| Amplifier Type | Field Effect Transistor |
| Self Noise | <10 dB |
| Output | Custom-wound UT Series transformer, made in USA |
| High Pass Filter | 80hZ (12 dB down point) |
| Pad | -10 dB |
| Body | Nickel electroplated, solid milled brass |
| Mount | Suspension type shock mount (included) |
| Ground | Pin 1 XLR (required) |
| Power Input | 48v Phantom Power (via XLR) |
| Included Accessories | Vintage-style pouch, shockmount |
| Dimensions - Microphone | Height: 220 mm / 8.6″ Diameter: 55 mm / 2.2″ Shockmount Depth: 118 mm / 4.64″ - 178mm / 7″ |
