Scan code: LN73018 Manufacturer code: LBE-M5-23

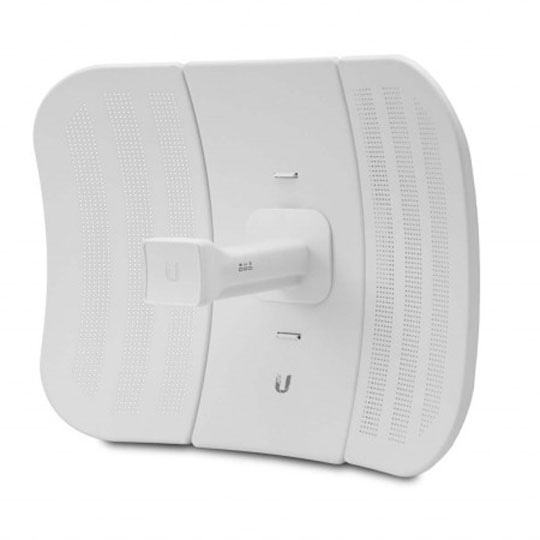

Ubiquiti LiteBeam M5 network antenna

Ubiquiti LiteBeam M5, 5 GHz frequency, 23 dBi Gain for long-distance connectivity, Directional antenna pattern, White

Free 3pin Cloverleaf Power Cable - LN 85043
Thumbnail 1 : Ubiquiti LiteBeam M5 network antenna Thumbnail 2 : Ubiquiti LiteBeam M5 network antenna Thumbnail 3 : Ubiquiti LiteBeam M5 network antenna Thumbnail 4 : Ubiquiti LiteBeam M5 network antenna
Scan code: LN73018 Manufacturer code: LBE-M5-23
£45.49Item currently awaiting an ETA
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The LiteBeam™ is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.

The LiteBeam combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.

The InnerFeed® technology (models LBE-M5-23 and LBE-5AC-23) integrates the entire radio system into the antenna feed, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.

Integrated airMAX Technology
Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks® airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency.
Compared to other systems in its class, the LiteBeam products deliver superior performance in reduced latency, throughput, and scalability.

• Intelligent QoS Priority is given to voice/video for seamless access.
• Scalability High capacity and scalability.
• Long Distance Capable of high-speed, 30+ km links. Features High-Gain, Directional Antenna
The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.

The Most Cost-Effective airMAX CPE Yet
Disruptively priced at $49 USD MSRP, the LiteBeamM delivers incredible value as an airMAX CPE solution.

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

Ubiquiti LiteBeam M5, 5 GHz frequency, 23 dBi Gain for long-distance connectivity, Directional antenna pattern, White is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Brilliant piece of kit. Previously to Buying this I did a lot of research and I must say I was a little suspicious in regards to its performance, but After having it for over a month I’m blown away with its performance and durability. Since the dish has been up We have had a lot of bad weather windy and rainy and cold but not once has the performance of this item failed in anyway.... and I would not hesitate to recommend it to anyone for the money it is well worth it fact have already recommended it to my friend.
Date published: 2017-11-23
  • y_2019, m_4, d_23, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_73018, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers


Does it come with any connection cables I want to connect to a Huawei 310 box with a two antenna conneections THANKS
Asked by: Keckers
Hi, The manufacturer does not state whether this will come with cables or not, so we wouldn't be able to guarantee if this will work or not. Regards,
Answered by: LukeW
Date published: 2019-01-21

Dimensions of this product

Hi what are the dimensions of this product and does it come ready assembled as in photo Thanks
Asked by: DWST
Hello, The dimensions for this item are stated as: Dimensions (No Mount) - 362 x 267 x 184 mm The item does not come ready assembled however assembly is a simple process with no tools needed. Regards,
Answered by: JackB
Date published: 2018-04-05

Do you need a pair

Are these set up in a pair - one on the base station end, one on the remote end? I'm connecting a remote building to my home wifi.
Asked by: dhallgb
