tp-link XX530v AX3000 Dual Band WiFi 6 GPON Router

tp-link XX530v AX3000 WiFi 6 GPON Router, 3x Antennas, Dual-Band (574+2402Mbps), 5x GbE, OFDMA, Hardware QoS, 802.11ax

Scan code: LN166317 Manufacturer code: XX530v
£59.99
£5.48 Next day delivery
Item currently awaiting an ETA
Pre order
Pay in 3 interest-free payments of £20.00

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

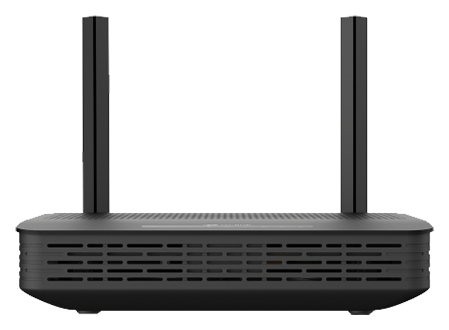

AX3000 Dual Band WiFi 6 GPON Router from tp-link

AX3000 Dual Band WiFi 6 GPON Router from tp-link

Dual-Band WiFi 6 Up to 3.0 Gbps XX530v is an AX3000 dual band Wi‑Fi 6 GPON router designed for high‑speed fibre access and triple‑play services. It delivers up to 3 Gbps wireless across 2.4 GHz and 5 GHz bands, ensuring smooth streaming, gaming, and multi‑device connectivity. A GPON port supports up to 2.5 Gbps internet, while multiple Gigabit LAN, FXS phone, and USB ports enable versatile home and small‑office deployments. Advanced security, QoS, EasyMesh, and Aginet cloud management help service providers deliver reliable, easily managed broadband experiences.

More Connections at High Speed

OFDMA / MU-MIMO

OFDMA OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency. MU-MIMO Simultaneously transfers data to multiple devices for 2x faster performance.

Extensive WiFi Coverage

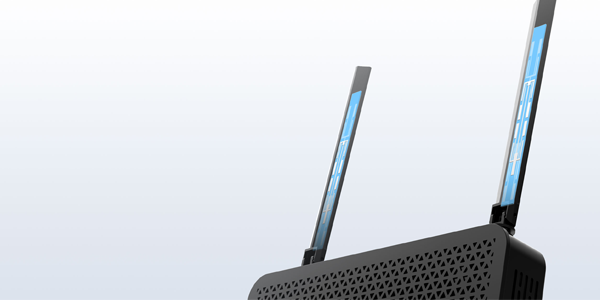

Beamforming Technology

Beamforming Technology High-performance dual-band antennas and beamforming technology combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

Smart Mesh WiFi with Greater Flexibility

Create a unified mesh WiFi network with other EasyMesh-compatible router or mesh AP for seamless whole home coverage.

Whole Home Coverage

Whole Home Coverage Eliminate weak signal areas with WiFi coverage for your entire home.

Seamless Roaming

Seamless Roaming Uninterrupted streaming when moving around your home.

One WiFi Name

One WiFi Name No more switching WiFi network names when you walk around.

Versatile Connectivity

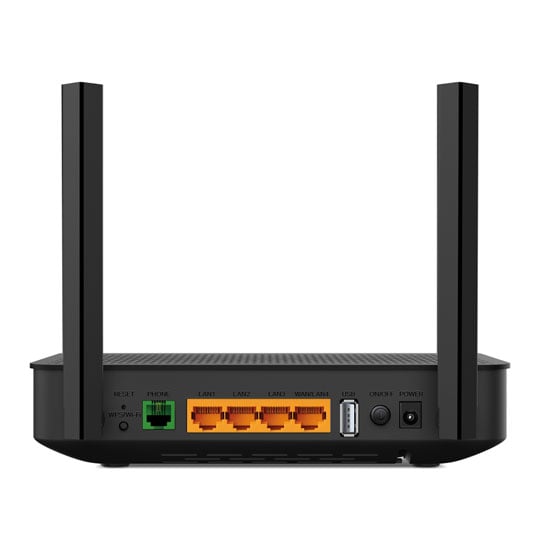

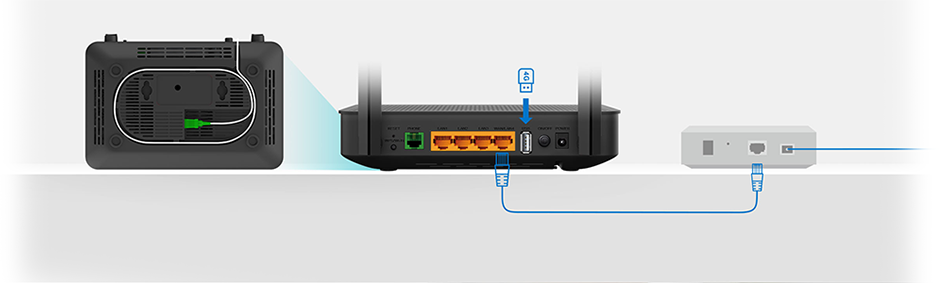

With multiple connection ports, XX530v provides you with a variety of internet connection options. The PON port delivers up to 2.5 Gbps internet access, catering to your high-speed home. The Ethernet WAN/LAN port supports wired connections to modems or switches via Ethernet cabling. A 3G/4G dongle can be attached to the USB port as a backup to always stay connected.

Internet connection options.

Robust Network Protection

WPA3 Security

WPA3 Security Higher password safety and enhanced protection against brute-force attacks.

Parental Controls

Parental Controls Block inappropriate content and restrict time spent online.

Multi-SSID

Multi-SSID Create separate networks for visitors and keep your main network secure.

Specifications
Networking, Connectivity & Ports
Model XX530v
Form-Factor Desktop
Device Type N/A
Compatible Internet Connections
  • Existing WiFi Network
  • Fiber-based Modems
Network Connectivity
Network Ports
  • 3 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
  • 1 x RJ45 10/100/1000 (Gigabit) BaseT for LAN/WAN
Other Connectors N/A
USB Applications
Wired Protocols
  • IPv4
  • IPv6
Total LAN Connections 3
Total WAN Connections 1
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed 3000 (574+2402) Mbps
Wireless Protocols
  • IEEE 802.11 b/g/n 270mbps
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11k
  • IEEE 802.11r
  • IEEE 802.11v
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power <20 dBm (2.4 GHz) / <23 dBm (5 GHz)
Antenna 2× External Dual-Band Antennas + 1× Internal 5G Antenna
Core Features
Features
  • Guest Network
  • NAT Rules
  • Parental Control
  • Static IP
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons
  • 1 x Power Button
  • 1 x Reset Button
  • 1 x WPS Button
OS Support
Max. Power Consumption
Security & VPN
Security Protocols
  • Access Control
  • Denial of Service (DoS)
  • IP Address Filter
  • IP and MAC Address Binding
  • MAC Address Filter
  • NAT Firewall
  • Parental control
  • Ping of Death
  • SYN Flooding
  • WPA
  • WPA2
  • WPA3
Firewall/NAT No
Management
  • DDNS
  • DHCP
  • DMZ
  • IGMP v1/v2/v3
  • Local Management
  • Port Triggering
VPN Support
  • IPSec Pass-Through
  • IPSec Server
  • OpenVPN Server
  • PPTP Pass-Through
  • PPTP Server
Physical Specifications
Dimensions
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN166317
Model Number XX530v
GTIN 1210002607797
