TP-LINK MC112CS WDM Media Converter
TP-LINK MC112CS 10/100Mbps WDM Media Converter,100M SC/UPC Port, 100M RJ45 Port
- SCANPROTECT Protect against installation damage for 28 days. More info
WDM Media Converter
The MC112CS is a media converter designed to convert 100BASE-FX fibre to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fibre cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fibre cable utilising the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINK’s media converter MC111CS is just one of the examples to cooperate with MC112CS.

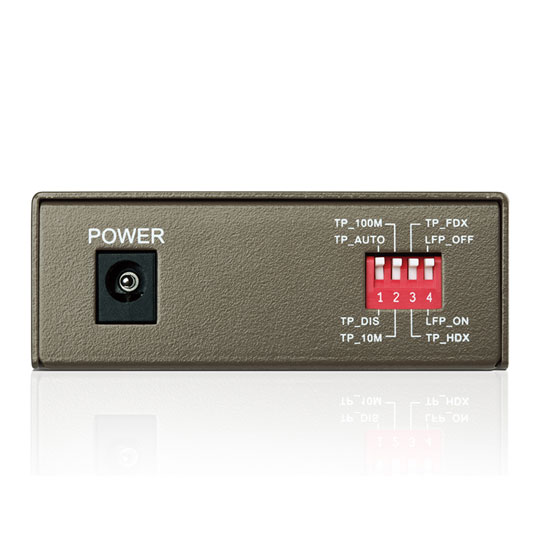

Other features of this module include the ability to be used as a stand alone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC112CS will transmit at extended fiber optic distances utilising single-mode fiber up to 20 kilometres.
• Link Fault Passthrough and Far End Fault minimise the loss caused by link failure timely.
• Adopts WDM technology, transmitting and receiving data on one single fibre.
