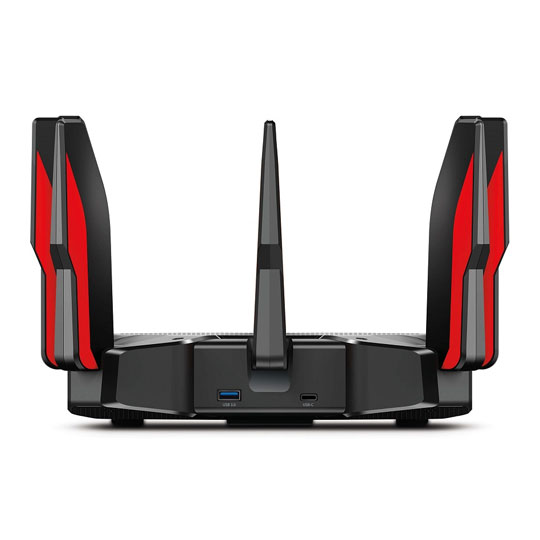

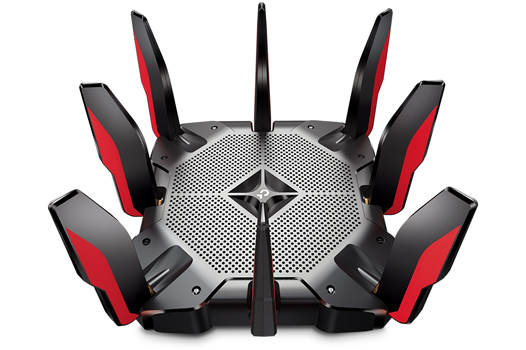

TP-LINK Archer Tri Band AX11000 WiFi 6 Router

TP-LINK Archer AX11000 WiFi 6 Router, 8x Antennas, MU-MIMO, Tri-Band 2.4+5+5GHz (1148+4804+4804Mbps), 2.5GbE, 802.11ax

Thumbnail 1 : TP-LINK Archer Tri Band AX11000 WiFi 6 Router Thumbnail 2 : TP-LINK Archer Tri Band AX11000 WiFi 6 Router Thumbnail 3 : TP-LINK Archer Tri Band AX11000 WiFi 6 Router Thumbnail 4 : TP-LINK Archer Tri Band AX11000 WiFi 6 Router
Scan code: LN104497 Manufacturer code: ARCHER AX11000
£383.99Item overdue since 05 May 2021
Pre order
From £18.43 / month (APR 14.9%)
Monthly Payment: £34.48
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £383.99
Total inc. interest: £413.67
Monthly Payment: £18.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £383.99
Total inc. interest: £442.34
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £9.59 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Enter the 10 Gbps Wi-Fi Era

Faster speed the router is, less congestion for gaming rigs. Armed with Wi-Fi 6, Archer AX11000 becomes the next-level speed machine that offers astonishing Wi-Fi speeds up to 10756 Mbps with an extended range.

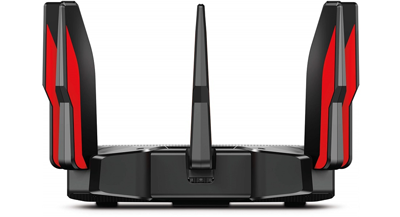

Lightning Attack to Defeat Latency

More connected devices shall bring more fun rather than dragging the performance. Revolutionary OFDMA is introduced to improve average throughput by 4x and cut the latency. Take advantage of incredibly low latency to demolish your enemies, with your team crew together.

Crush the Lag, Win the Game

Game Accelerator automatically detects and optimizes gaming streams, to ensure your gaming stays immersive, and keep your network as fast as your reaction speed.

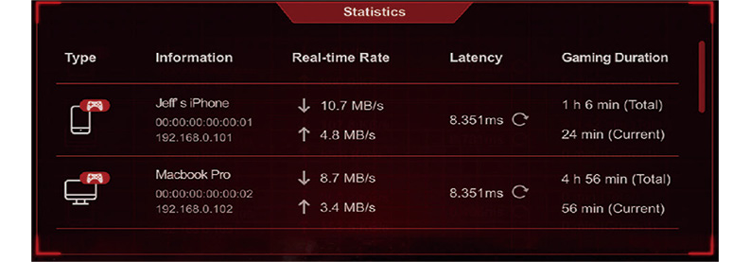

Know Your Network

Game Statistics shows the real-time latency, game duration and system utilization at a glance in a refreshed dashboard with fine-tuned UI elements, puts total control at your fingertips.

Keep All Elements Security

Game Protector keeps your accounts and system safe. This enhanced HomeCare™ security system is powered by Trend Micro™, delivering comprehensive antivirus protection that ensures your total security while gaming online.

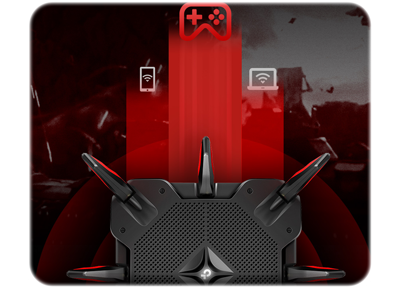

Game on the Fast Lane

Gaming Band—a dedicated gaming band for your game rigs, makes your online games and your families' Netflix 4K streaming no more competitor.
DFS expands available channel automatically, get on the more vacant lane and boost the game.

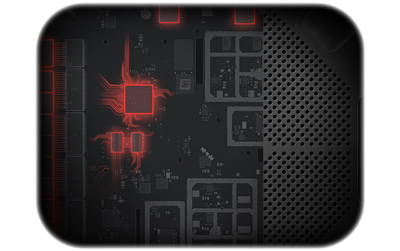

Battle-Tested Hardware

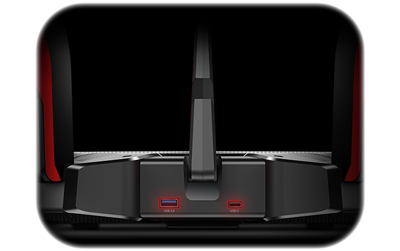

Equipped with 1.8 GHz Quad-Core CPU and 1 GB of RAM to handle huge throughput and crush the lag. Link Aggregation and USB 3.0 type C and type A ports ensure virtually any device can connect to your home network.

Your Hubs Unified

Amazon Alexa: Invite your friend to join the network without using a password and enable the separate guest network without any handling, but your calling.
IFTTT: Switch mode depending on your connected gaming rigs and be informed when a new device is connected.


Ultra-Fast Wi-Fi for Extreme Gaming: AX11000 speed machine that delivers 12-streams Wi-Fi Speeds Over 10 Gbps: 4804 Mbps (5 GHz Gaming) + 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)
Game Accelerator: Detect and optimize gaming streams, to ensure your gaming stays immersive
Game Protector: Keep your accounts and documents safe with Homecare™ security system powered by Trend Micro™.
Game Statistics: Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.

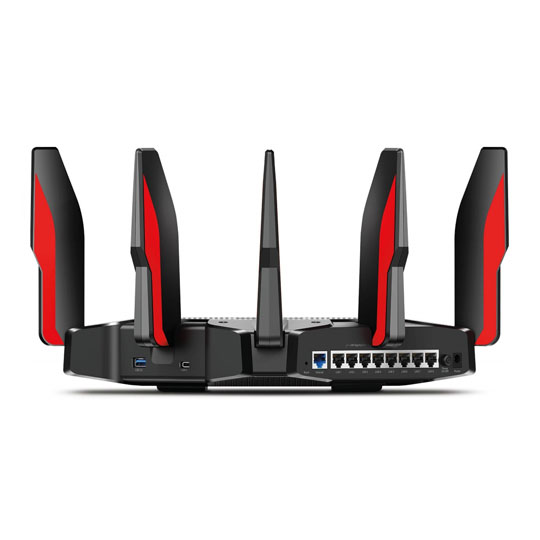

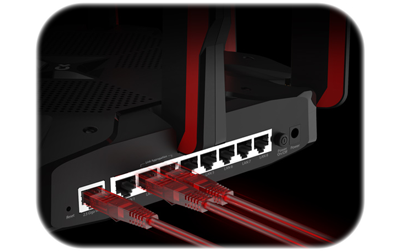

Ultra-Connectivity: 2.5 Gbps WAN port and eight Gigabit LAN ports, 2 USB 3.0 in Type A and Type C provide extensive connectivity.
Powerful Processing: 1.8 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.
Highly Efficient: OFDMA increases the avg. throughput and reduces the lag.
Easy and Smart: Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

Networking, Connectivity & Ports
Model Archer AX11000
Form-Factor Desktop
Device Type Router
Compatible Internet Connections Cable-based Modems
Network Connectivity
  • 10/100/1000
  • 10/100/1000/2500
  • Wireless LAN
Network Ports
  • 8 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
  • 1 x RJ45 10/100/1000/2500 (2.5 Gigabit) for WAN
Other Connectors
  • 1 x USB 3.0
  • 1 x USB Type-C
USB Applications
Wired Protocols
  • IPv4
  • IPv6
Total LAN Connections 8
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance Unknown
Wireless Speed 10756 (1148+4804+4804) Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IPv4
  • IPv6
Wireless Band Tri-Band
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power N/A
Antenna 8x External
Core Features
  • Alexa Support
  • DFS (Dynamic Frequency Selection)
  • Enable/Disable Wireless Radio
  • Guest Network
  • IFTTT Support
  • IPv6 Support
Router/Modem Processor 1.8GHz 64bit Quad-Core
Internal RAM Memory 1GB
Internal RAM Memory Type
Internal Flash Memory 512MB
LED Indicators
  • 1 x Wireless On/Off Button
  • 1 x WPS Button
OS Support
  • Linux
  • Mac OS
  • UNIX
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Vista
  • Windows XP
Max. Power Consumption Unknown W
PSU Type External
Security & VPN
Security Protocols
  • WEP (128 bit)
  • WEP (64 bit)
  • WPA
  • WPA2
  • WPA2-PSK
Firewall/NAT No
  • Local Management
  • Parental Control
  • Remote Management
VPN Support
  • OpenVPN Client
  • OpenVPN Server
  • PPTP Client
Physical Specifications
Dimensions 288 x 184 x 288 mm (WxHxD)
Additional Specifications
Note N/A
Additional Information
Scan Code LN104497
Model Number ARCHER AX11000
GTIN 6935364088842

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
0845 147 0017 (UK) or 0818 229 000 (Ireland)
Loading Please Wait

Please wait . . .

Does this router allow connection to SkyQ, I understand It needs DHCP option 61 is this possible on this router? Also any issues with BT modems?

I understand routers need to be configured to DHCP option 61 to work with Sky Q can this be done? Also I have a standard fibre BT single port modem will this be comparable or sufficient for ax11000 benefits? Thanks
Asked by: AdsM
Hi, I have Sky Broadband and SkyQ. I initially replaced their standard router with a tp-link modem (LN82152) to use with the latest Google Nest WiFI Router & Points. I had issues with the mesh of that system, so after a couple of months I switched to the Archer AX11000 and so far it has been brilliant. I get full signal and bandwidth in most areas of my house and SkyQ works great.
Answered by: kdubse83
Date published: 2020-04-20

Can I attach my Virgin media connection to this?

Asked by: MikeyG
You will need to use a modem or your virgin router to connect this device to the internet. The only input available to it is an ethernet port. I normally turn the wifi on my ISP router off or switch it to a form of pass through mode to stop the old one interfering in the home. This should not affect performance as your ISP should provide you with a router suitable of handling the amount of data you can get from the internet, but rarely provide you with one that can handle your in home communications.
Answered by: ETtheElite
Date published: 2020-03-22

AX11000 compatibility

kdubse83 thanks for your response. can I just follow this with a few more questions? - did you have to change the settings on the ax11000 with option 61 DCHP to work with Sky and if so was this easy enough? or did it work out of the box? - Have you tried the Google wifi points with ax11000 - does this work? - did you need to swap out the modem or has that improved the speed at all? were you with BT or another provider? it seems BT sell the Ax11000 on their website also so I presume its compatible with their modems.
Asked by: AdsM
