Topping - L30II - Desktop Headphone Amp - Black
Topping - L30II, NFCA Modules, Ultra Low Noise Desktop Headphone Amp - Black
Email me when the availability or price changes
Ultra-Low Noise Headphone Amplifier

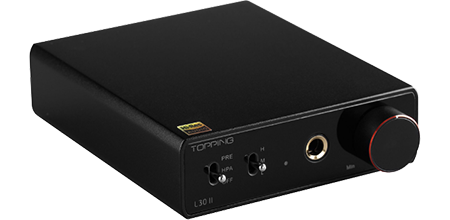

Topping - L30 II
NFCA HEADPHONE AMPIn comparison to Topping’s previous L30, the second generation L30II features noticeable improvements on the NFCA module to deliver 0.3uV ultra low noise and a dynamic range of 144dB, while keeping 0.00006% THD+N. The new L30II model achieves twice the power at 300ohm load. The small, sleek body but with huge power is fully manifested in Topping’s L30II Headphone Amplifier!
Wide Applications for HeadphonesTo ensure compatibility with a broad range of headphones, the L30II headphone amplifier features high output voltage, high current and low output impedance. It doesn’t matter if your headphones are of high impedance or low sensitivity, the L30II amplifier can easily deal with them all.
Three Levels of Gain Settings
When it comes to gain settings, the L30II boasts greatly improved gain settings to cover a wider range of needs, suitable for all types of headphones. Topping’s L30II features three gain options: -14dB, 0dB, 16.5dB. With different settings, both low-sensitivity and high-sensitivity headphones can reach a satisfying performance without obvious background noise because of the extremely low noise level of 0.3uV.
what's included?
• 1x Topping L30II
• 1x AC adapter
• 1x 6.35mm to 3.5mm adapter
• 1x User manual
• 1x Warranty card
Low Distortion, High Performance
ultra-low distortionThe L30II can maintain ultra-low distortion output under power load. Under 32ohm load and 2500mW output, the THD+N is lower than 0.00008%; under 300ohm load and 300mW output, the THD+N is lower than 0.00007%.
the Perfect CompanionIt is usually recommended to use L30II with E30II together to achieve the best results. These two can make a perfect match, or even better when paired with active speakers.
Simply connect the L30II to headphones and your active speaker, then by switching the outputs on L30II, you are able to easily enjoy music on headphones and active speakers respectively.
The Tech Spec
| Features | Specification | THD+N | <0.00006%. |
|---|---|
| SNR | 144dB |
| DNR | 144dB |
| Frequency Response | 20Hz-40kHz |
| Output Level | 14Vpp(low gain), 31Vpp(mid gain), 37Vpp(high gain) |
| AP measure Noise level | <0.7uVrms(low gain) |
| Actual noise level | <0.3uVrms(low gain) |
| Channel crosstalk | -92dB |
| Input Sensitivity | 25Vrms(low gain), 11.2Vrms(mid gain), 2.0Vrms(high gain) |
| Gain | -14dB/0dB/16.5dB |
| Output Impedance | <0.1Ω |
| Output Power | 3.5Wx2@16Ω, 2.7Wx2@32Ω, 2Wx2@64Ω, 560mWx2@300Ω |
| Load Impedance | >8Ω |
