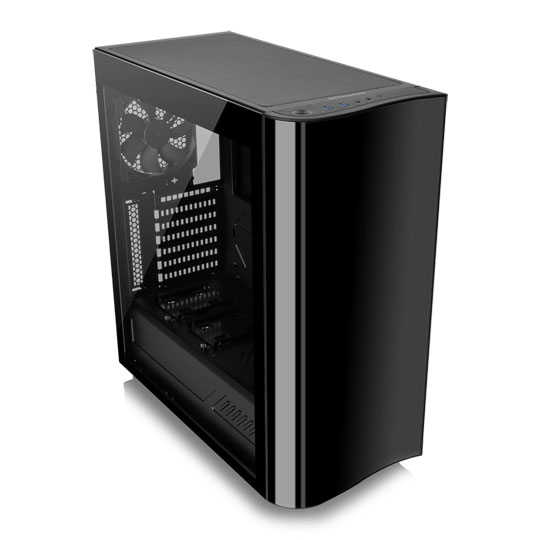

Thermaltake View 22 Tempered Glass Mid Tower PC Case

Thermaltake View 22 Chassis, Tempered Glass, USB 3.0, 120mm Fan Included, 120/240/280/380 Radiator Support, ATX/MicroATX

Thumbnail 1 : Thermaltake View 22 Tempered Glass Mid Tower PC Case Thumbnail 2 : Thermaltake View 22 Tempered Glass Mid Tower PC Case Thumbnail 3 : Thermaltake View 22 Tempered Glass Mid Tower PC Case Thumbnail 4 : Thermaltake View 22 Tempered Glass Mid Tower PC Case
Scan code: LN87505 Manufacturer code: CA-1J3-00M1WN-00
£53.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Aug 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview Thermaltake View 22 Tempered Glass Edition Mid-Tower Chassis
The View 22 Tempered Glass Edition mid-tower chassis features streamlined front panel structure, one durable 4mm thick left tempered glass window, one preinstalled 120mm rear fan and a built-in power supply cover for clean cable management. It also supports the latest PC hardware, including the most advanced graphic cards, and air/liquid cooling solutions. Build your ultimate dream rig with Thermaltake View 22 TG Edition!

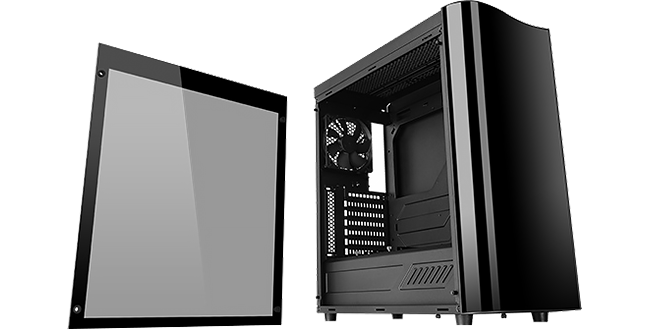

4 mm Thick Left Tempered Glass Window Design
The 4 mm thick left tempered glass panel guarantees the durability of the window and display your build with crisp clarity.

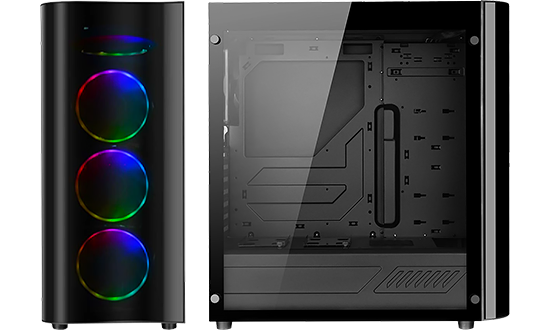

Streamlined Front Panel Structure
Front panel adopts streamlined curve design to give the chassis a sleek and dynamic look.

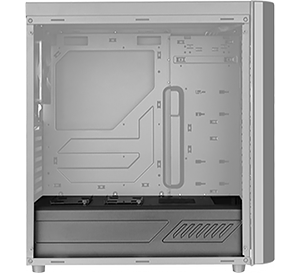

Built-in PSU Cover
The View 22 TG is equipped with a full-length PSU cover to hide those unsightly cables from view and give your build a sleek and tidy look, and what’s more, a better airflow.

Tool-Free Installation
The View 22 TG comes with tool-free drive cages to provide the ease of installation/removal and maximize the interior space for highly customizable layouts. Users get to mount up to two 2.5” HDD inside the left side panel or on the PSU cover. There are also dual removable, interchangeable HDD drive bays held in the PSU cover which allow for position adjustment according to the PSU length.

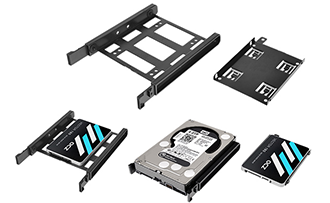

3.5” or 2.5” HDD Drive Compatible

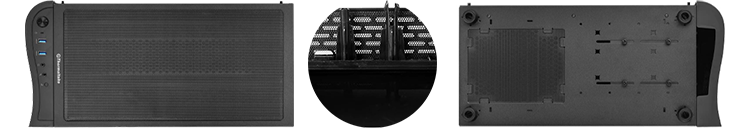

Dust Reduction
Super fine top filter, front panel filter and bottom filter come with excellent protection and reduction against dirt and dust.

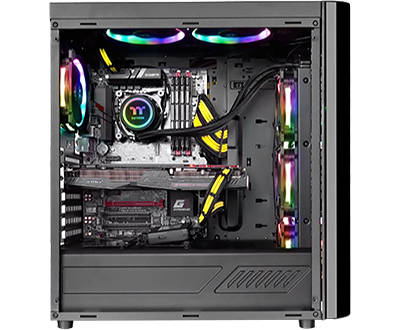

Supports High-End PCs with Outstanding Expandability
The View 22 TG guarantees outstanding expandability, supporting a tower CPU cooler with maximum height 160mm, a dual expansion slot VGA of up to 400mm in length without HDD rack, and a power supply with length of up to 160mm; plus, it has the ability to accommodate multiple 3.5”/2.5” storage devices at the same time.

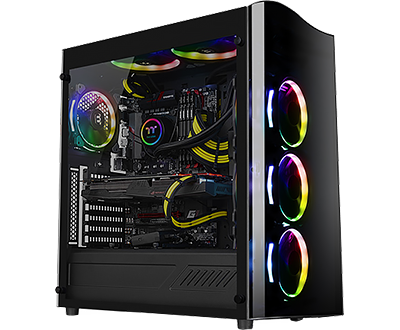

Superior Cooling Capability
The View 22 TG is optimized for superior cooling capability with a mesh panel design and a preinstalled 120mm rear fan. The case can house up to dual 140mm intake fans and one 360mm radiator, allowing users to build a complete high-end system.


Important - Please Note: Chassis only, PC components not included, available separately. Features • Easy cable management.
• Built in PSU cover.
• Supports ATX, Micro ATX and Mini ITX Motherboards.
• 120/240/280/360mm radiator support.
• CPU Cooler up to 160mm.
• GPU length up to 400mm.
• PSU length up to 160mm.
Specifications
Core Chassis Specifications
Case Edition View 22
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Line Out
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal (Accessible)
  • 2 x 2.5"/ 3.5" Internal (Hidden)
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 4 x 120/140mm
  • 1 x 120mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 280/360mm
Top Radiator Compatibility 1 x 280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 160 mm
Max GPU Card Length 400 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 160 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials SPCC / Tempered Glass
Dimensions 223 x 467 x 491 (WxHxD mm)
Weight 6.95 kg (Approx)
