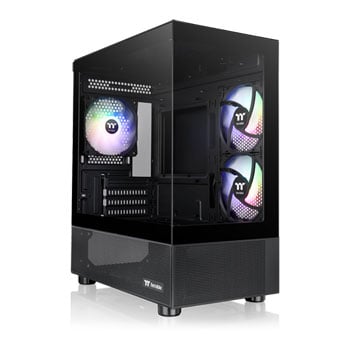

Thermaltake View 170 TG ARGB Black mATX Tempered Glass PC Gaming Case

Thermaltake View 170 TG ARGB Micro ATX Tower, Black, 3x 120mm ARGB Fans, USB 3.0, mATX / mITX

Scan code: LN161498 Manufacturer code: CA-1Z4-00M1WN-00
£44.99
£5.48 Next day delivery
Order in the next 2 hrs 22 mins and get it tomorrow
Get it Tomorrow, 23 JunIn stock
Pay in 3 interest-free payments of £15.00

Email me when the availability or price changes

  • By DPD On 23rd Jun Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

View 170 TG ARGB Black Micro ATX Chassis from Thermaltake

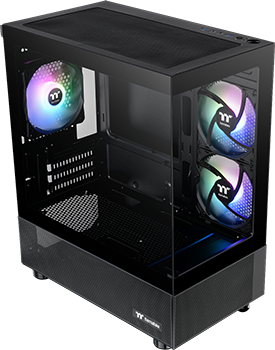

View 170 TG ARGB Case in Black

Built for Amazing Views The View 170 TG ARGB Black Micro Chassis is an M-ATX case equipped with tempered glass panels on the front and left sides, and includes three pre-installed 120mm ARGB Lite Fans with hydraulic bearings. Its vibrant ARGB lighting is compatible with motherboard software from ASUS, GIGABYTE, MSI, and ASRock for easy customisation. The chassis supports up to seven 120mm fans in total, and can accommodate a 280mm or 240mm radiator on the top panel.

Please note: The images below are used for illustation purposes.

Stunning Visuals Meet Excellent Performance

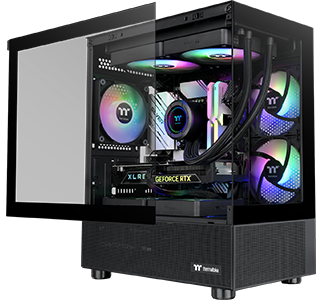

Tempered Glass Front and Side Panel

Tempered Glass Front and Side Panel The View 170 TG ARGB Black Micro Chassis offers enhanced visibility, letting users showcase their build through its tempered glass panels on the front and left sides.

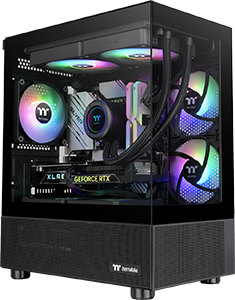

Up to a 280mm/240mm Radiator

Up to a 280mm/240mm Radiator Offering strong cooling options, the View 170 TG ARGB Black Micro Chassis allows users to install a 280mm or 240mm radiator on its top panel.

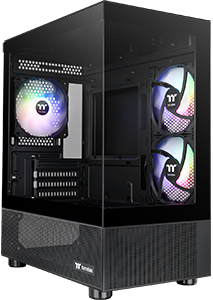

Tempered Glass Front and Side Panel

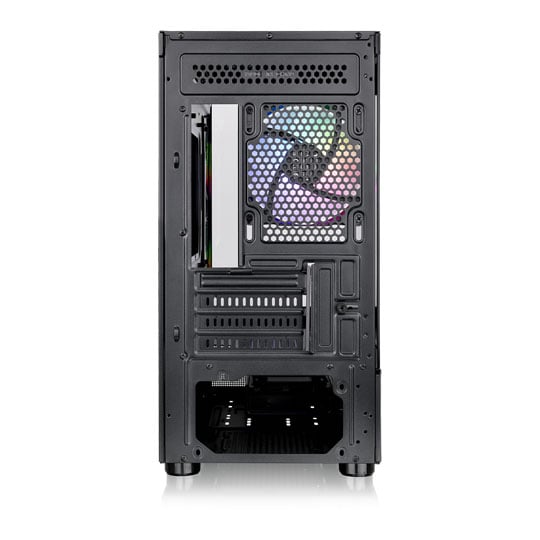

Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed The View 170 TG ARGB Black Micro Chassis includes three Hydraulic Bearing 120mm ARGB Lite Fans positioned at the motherboard side and rear. Its dynamic lighting effects are easily managed using motherboard software from ASUS, GIGABYTE, MSI, or ASRock.

Flexibility to Build Your Best

The View 170 TG ARGB Black Micro Chassis provides excellent expandability, supporting CPU coolers up to 160mm tall, graphics cards up to 340mm long, and power supplies up to 180mm in length. Designed for superior cooling, it comes with three Hydraulic Bearing 120mm ARGB Lite Fans and can accommodate up to seven 120mm fans in total. For liquid cooling, the case supports radiators up to 280mm or 240mm on the top, offering flexibility for high-end builds.

Diagram of main PC components with overlaying numbers
CPU Cooler
CPU Cooler

Max height 160mm

PSU
PSU

Max length 180mm

Motherboard
Motherboard

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)

VGA
VGA

Length limitation 340mm

Convenient I/O Ports

Handy IO Ports
USB 3.0
Mic
Headphone
USB 3.0
Reset
Power
USB 3.0
Mic
Headphone
USB 3.0
Reset
Power
Specifications
Core Chassis Specifications
Case Edition Thermaltake View 170 TG ARGB
Case Form Factor MicroATX
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.1 Gen1 Type-A
Drive Bays
  • 2 x 2.5" Internal
  • 1 x 3.5" Internal
Standard Expansion Slots 4
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 5 x 120mm
  • 2 x 120mm / 2x 140mm
Fans Included 3 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
  • Bottom
  • Top
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 120/140/240/280mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 160 mm
Max GPU Card Length 340 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included Addressable LED Fan/s
LED Lighting Colour RGB
LED Lighting Support & Control
  • Compatible with ASRock PolyChromeSync
  • Compatible with ASUS AURA Sync
  • Compatible with Gigabyte RGB Fusion
  • Compatible with MSI Mystic Light Sync
  • Control via Compatible Motherboard RGB Header
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length 180 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials SPCC
Front Panel Type Tempered Glass
Dimensions 212 x 438 x 378 (WxHxD mm)
Weight 6.35 kg (Approx)
Package Type Retail
Please Note
Additional Information
Scan Code LN161498
Model Number CA-1Z4-00M1WN-00
GTIN 4711475645332
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
