Thermaltake TR100 Green Mini Tower mITX PC Gaming Case

Thermaltake TR100 Mini Tower Chassis – Matcha Green

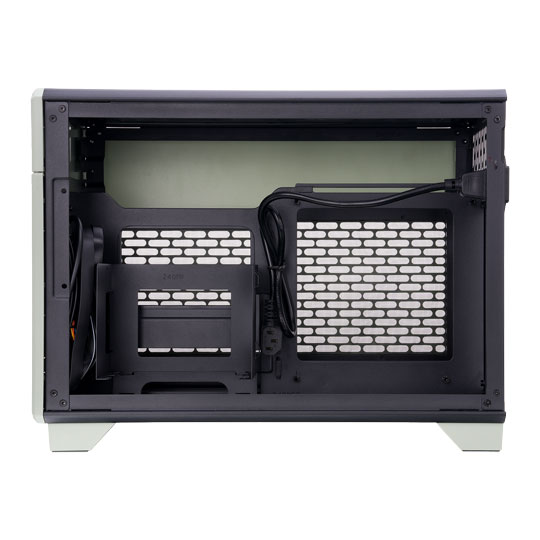

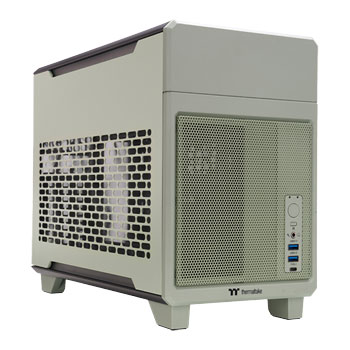

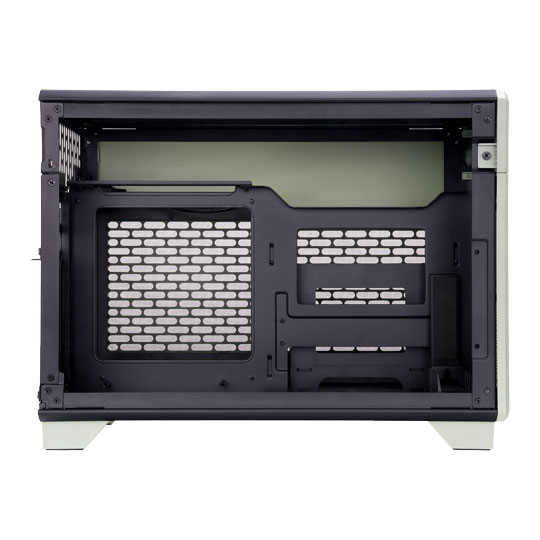

The TR100 Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm / 140mm top fans and up to a 280mm AIO for cooling, plus two 2.5” SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visual appealing and customisable, a separately sold 3.9" LCD Screen Kit is also available from Thermaltake.

Compact Design

The TR100 is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.

Redefining Portable Gaming
More than just a case, the TR100 is a complete, travel-ready gaming solution. Whether you're traveling for business or pleasure, editing video or designing graphics, playing games or using VR, there's no need to sacrifice performance or leave your gaming experience behind!

Efficient Cooling Solutions

The TR100 supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. This means the TR100 can accommodate a CPU cooler up to 68mm in height and two 120 / 140mm fans on the top.

Air Intake and Exhaust
Despite its compact size, the TR100 still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

Massive Airflow & Incredible Performance
Thermal images taken during thermal testing show that despite its compact design, the TR100 still guarantees good cooling performance and a low internal temperature while using the highest quality components.

Perfect Dust Protection
There are filters included at the top, front and side of the chassis to protect the system from dust.

Hardware Support and Cooling Solution

Despite its compact footprint, the TR100 still has good hardware support. It can support a CPU cooler with a maximum height of 68mm, a GPU with a maximum length of 360mm (and up to 70mm in width), a power supply with a length of up to 130mm, and two 2.5" SSDs. For cooling support, up to two 120mm / 140mm fans or a 280mm all-in-one CPU cooler can be placed on top of the chassis for effective cooling.

Superior GPU Support

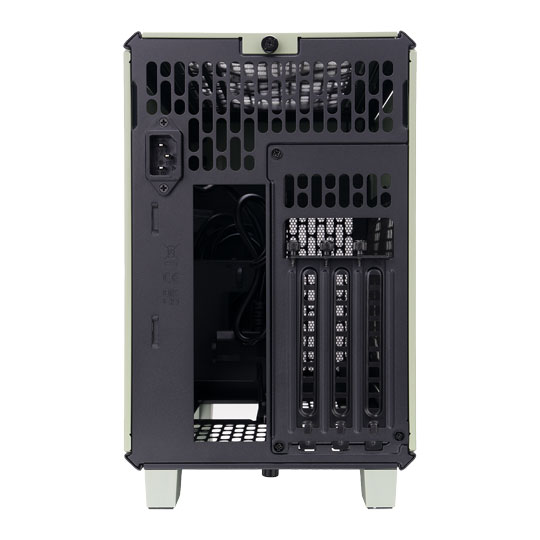

The TR100 supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.

SFX PSU Support
The TR100 features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.

Storage Support
The TR100 supports up to two 2.5" SSDs, one in each chamber.

DMD: Dismantlable Modular Design

No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

Easy Access with Removable Panels
The TR100's modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.

Everything Tested, So You Don’t Have To

Thermaltake stress test their products under harsh conditions to ensure product quality. The TR100 products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing them to test how the chassis performs under real-world situations.

• Thermaltake 3.9” LCD Screen Kit (sold separately).
• Dimensions (W x H x D): 179 x 294 x 391mm.
• Drive Bays: 2 x 2.5”.
• Expansion Slots: 3 (Vertical).
• 1 x USB 3.2 (Gen 2) Type-C, 2 x USB 3.0, 1 x HD Audio.
• Support for up to 2 x 140mm fans or 2 x 120mm fans.
• 120 / 140 / 240 / 280mm top-mounted radiator support.
• CPU cooler max height: 68mm.
• VGA max length: 360mm.
• PSU max length: 130mm.
