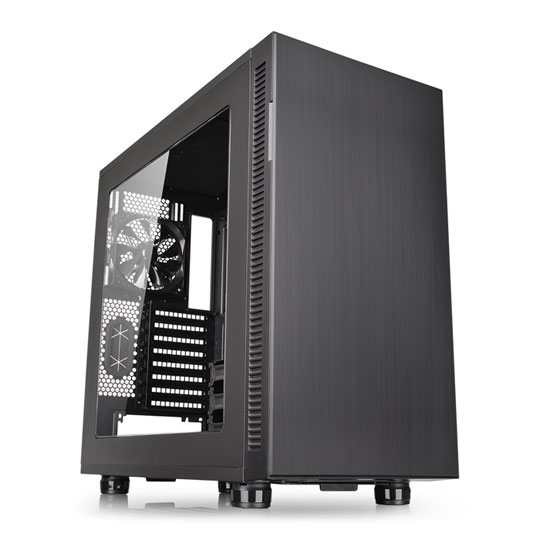

Thermaltake Black Suppressor F31 Windowed Gaming PC Case
The Suppressor F31 Window mid-tower chassis is the new addition to the Suppressor Series to the Thermaltake case line. Featuring the first chassis with 250mm wide and leading-edge sound reduction panels on all sides, expand your cooling options with removable panels for the perfect balance in silent operation and cooling performance. Supporting a range of motherboard platforms from Mini ITX to ATX solutions, unrivaled liquid cooling expansion and expandability for all high-end GPU solutions users can expect an enthusiast built design they can trust. Features Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Innovative 5.25” and 3.5” tool-free drive bay design minimizes installation/removal with hidden drive bays on the back panel to provide a clean look and improved expansion for liquid cooling components. The “2 + 3” drive bay with modular drive racks allows multiple SSD/HDD devices for improved storage capacity.
Fully Modular Design
With removable “2 + 3” drive racks, gain more for custom cooling components to freely interchange SSD/HDD cage sections for maximum interior space. Take advantage to include high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating liquid cooling expansion for the ultimate in cooling performance.
Hidden drive bay allows expandability for more liquid cooling and still allows data drive mounting for a clean look. Cable management with maximum 50mm in width.
Super fine fan filters with excellent protection and reduction against dirt and dust on the top, inside the front-side panel, and at the bottom. Magnetic fan filter on the top simply attach the filter for dust filtration.
Handy I/O Ports
Design with convenience and cleanness in mind, Suppressor F31 Window has built in dual USB 3.0 and USB2.0, a HD audio connector, power, and reset button, grants a direct and easy access for external devices.
Modular Sound-Damping Design
Built-in sound-damping panels incorporated the top, front, and side panels of the Suppressor F31 chassis to reinforce noise reduction for silent operation. Optimizing cooling performance with removable mounted top panels to expand cooling configurations for both air and liquid cooling solutions. Design and build a custom leading-edge silent operation PC with options for 120/140/200mm cooling fans and liquid cooling support for single, dual and triple radiator applications.
Optimized Silent Operation
For acoustic test, Suppressor F31 was tested in a semi-anechoic chamber which includes anti-vibration, sound-proof, and sound-absorbing effect. Preinstalled sound-damping foams of Suppressor F31 reduce noise and acoustic levels within the entire chassis for extreme silent purpose.
Optimized Cooling Performance
Thermal imaging camera was applied for the temperature test of the chassis. After the removal of all sound-damping covers from the top panel, Suppressor F31 Window dissipates heat more efficiently. The temperature decreases 2.2°C/35.9°F without any sound damping covers.
The Suppressor F31 Window delivers outstanding cooling performance for DIY/AIO liquid cooling and air cooling systems. With wide top-to-bottom side ventilation grills, air intake is with a single 120mm front fan built-in and includes options for up to (3) 120mm or 140mm front fans combined with (2) bottom mount 140mm fan locations for maximum fan space selection. Dissipate heat properly with (1) rear built-in 120mm fan and (3) sectional top mounts to manage proper air flow in and out.
High-End Complete Solution
The Thermaltake Suppressor F31 Window enables users to build a complete high-end system that supports up to triple 120mm, double 140mm liquid cooling radiators or up to 200mm case fans. With extended graphic card support (up to 360mm), the Suppressor F31 Window simultaneously protects the hardware and increases the CPU’s overclocking potential for users looking to get the most out of their hardware. Most importantly, the Suppressor F31 Window delivers outstanding cooling efficiency, reduced exterior noise and dust signatures for ideal silent operation.
|Case Edition||Suppressor F31 Window|
|Case Form Factor||Mid Tower|
|Motherboard Form Factor||
|Front/ Side/ Top Panel||
|Fans Included||2 x 120mm|
|Front Radiator Compatibility|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility|
|Side Radiator Compatibility|
|Power Supply Form Factor||ATX|
|Max PSU Length|
|Max CPU Cooler Height||180 mm|
|Max VGA Card Length||420 mm|
|Dimensions||250 x 497 x 515 (WxHxD mm)|
|Weight||9.4 kg (Approx)|
