Scan code: LN99431 Manufacturer code: CA-1O3-00M1WN-00

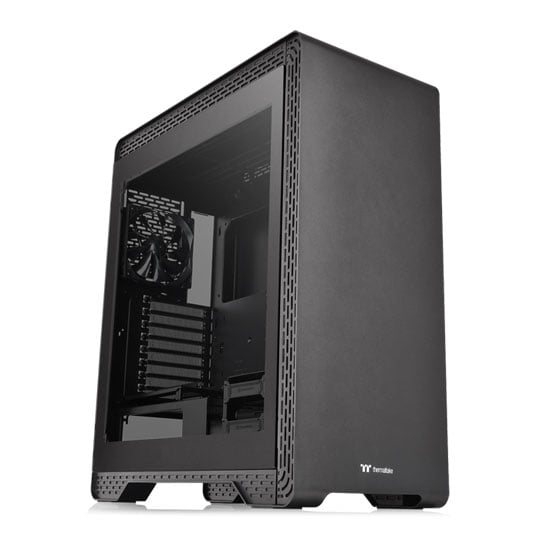

Thermaltake S500 Tempered Glass Mid Tower Performance PC Case

Thermaltake S500 Mid Tower Case Tempered Glass, 120mm + 140mm Fans, USB 3.0, ATX/MicroATX/Mini-ITX

Thumbnail 1 : Thermaltake S500 Tempered Glass Mid Tower Performance PC Case Thumbnail 2 : Thermaltake S500 Tempered Glass Mid Tower Performance PC Case Thumbnail 3 : Thermaltake S500 Tempered Glass Mid Tower Performance PC Case Thumbnail 4 : Thermaltake S500 Tempered Glass Mid Tower Performance PC Case Thermaltake S500 Tempered Glass Mid Tower Performance PC Case : video thumbnail 1
Scan code: LN99431 Manufacturer code: CA-1O3-00M1WN-00
RRP: £99.98
£74.99
FREE DELIVERY ON THIS ITEM
Order now and receive it between 7th Dec and 11th Dec
Delivery Options
  • By DPD On 7th Dec To 11th Dec to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

S500 Tempered Glass Mid Tower Chassis by ThermalTake

S500 Tempered Glass by Thermaltake

Elegance and Sophistication Housed in Modern Steel Introducing the S500 Tempered Glass mid-tower chassis combines sophistication and elegance in a modern steel case construction. The S500 TG is manufactured with one tempered glass side panel. Two preinstalled standard fans, one 140mm fan at the front and one 120mm at the rear to enable outstanding ventilation. The S500 TG incorporates a full modular design, vertical radiator & GPU mount, Patented Rotational PCI-E slots, and the support for 200mm fans. The flexibility is limitless for high-end components.

High Quality Products That you Can Rely On

Not Just a Name To continue to achieve their corporate vision of delivering "the perfect user experience", the TT premium certification is more than just a quality guarantee it represents a passion in DIY, Modding and ThermalTake's desire to be the most innovative brand on the market, with TT premium certification you can be reassured the core values of ThermalTake are being met to create a high-quality, innovative and diverse product for even the most hardy enthusiasts. This is further reinforced by the addition of the LCS certification, this ThermalTake exclusive certification is only applied to products that have passed rigorous testing procedures to identify which chassis are compatible with extreme custom liquid cooling systems.

TT Premium

TT Premium

LCS Certified

TT LCS Certified

Take Pride in your Craft

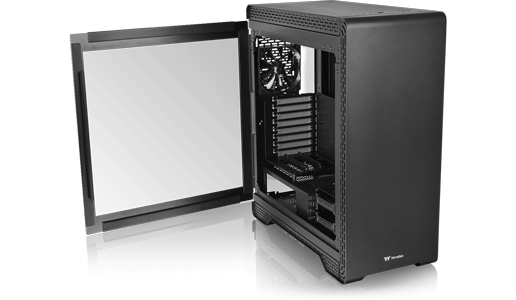

Tempered Glass Side Panel

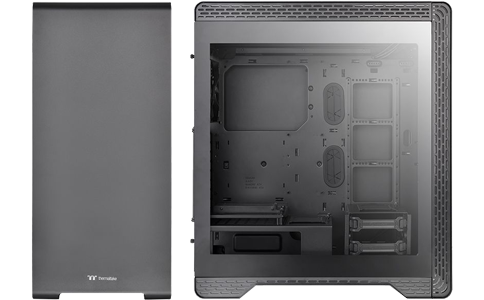

Large Tempered Glass Side Panel The S500 TG boasts a 4mm tempered glass window that is built to be more durable, scratch resistant and to provide you with a clear view of your build. Show off your own style and make even the most seasoned enthusiasts envious of your style, your craft, your system.

Build it your way!

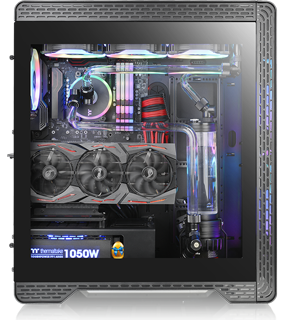

Complete system build example

Maximum Expandability Gives you Greater Choice The S500 TG has outstanding expandability. It can support a CPU cooler with a maximum height of 172mm, dual expansion slot VGA of up to 400mm in length without an HDD rack, and a power supply with a length of up to 220mm. Optimized for excellent cooling capability with one 140mm exhaust front fan and one 120mm rear fan preinstalled, S500 TG is able to house up to three 140mm or two 200mm front fans, up to two 200mm fans on top, and a radiator up to 360mm on top and 420mm at the front to allow users to build their desired high-end system.

Cooler Height

Cooler
Height
Max Height 172mm

Motherboard compatiblity

Motherboard CompatibilityATX, Micro-ATX, Mini-ITX

Max Length PSU

PSU
Length
Max Length 220mm

Max Length GPU

GPU
Length
Max Length 400mm

Connections at your Fingertips

Handy I/O Ports Two 3.0 USB, two 2.0 USB and two jack ports for headphones and microphone are placed at the top of the front panel to grant direct access when needed.

USB 3.0

2x USB 3.0

USB 2.0

2x USB 2.0

Mic and Headphone Port

Mic in & Headphone out

Specifications
Core Chassis Specifications
Case Edition S500
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Reset Button
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 1 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
  • 1 x 3.5" / 2x 2.5" Internal
Standard Expansion Slots 8
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 120mm
  • 3 x 120mm / 2x 140mm / 2x 200mm
  • 3 x 120mm / 3x 140mm / 2x 200mm
Fans Included
  • 1 x 120mm
  • 1 x 140mm
Fan Controller/Hub
Dust Filters PSU
Liquid Cooling Support
Front Radiator Compatibility 1 x 360/420mm
Top Radiator Compatibility 1 x 280/360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility 1 x 360mm
Clearances
Max CPU Cooler Height 172 mm
Max GPU Card Length 282 (400 w/o HDD Rack) mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 220 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials SPCC
Dimensions 565 x 240 x 500 (WxHxD mm)
Weight 15.04 kg (Approx)
Please Note
Additional Information
Scan Code LN99431
Model Name S500 Midi
Model Number CA-1O3-00M1WN-00
GTIN 4713227521499
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
Manufacturer Contact Details
Manufacturer:
ThermalTake
Thermaltake S500 Mid Tower Case Tempered Glass, 120mm + 140mm Fans, USB 3.0, ATX/MicroATX/Mini-ITX is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Kinda so so Very heavy case. It is not light. Weight is mostly in front and top cover. Colour is nice. Easy to remove top and front cover to install fans. I bought this case for air cooling rather than water cooling. For me, it doesn't suit me that much. I am doing air cooler build. Main issue is that how exhaust on the rear gonna take all the heat out. Top and Front sides is not enough in my opinion. So i decided to use this for my plex pc. Had some scratches some bits inside. It's not big issue. Thermaltake has no tutorials for step by step guide. Just pictures and number. Took me while to figure how to take out front and cover. Another main issue for me is that rubber holders on the base of the base keeps coming out when around easily. Wish it had wheels so it would have been easy to move around considering its weight. Thank you
