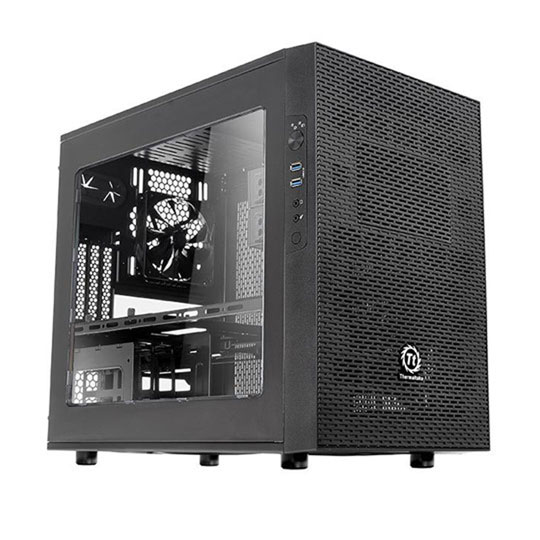

Thermaltake Core X1 Mini ITX Case - Window

Thermaltake Core X1 Black mini-ITX Stackable Tower Case with side Window + USB 3.0 w/o PSU (ATX PSU)

Scan code: LN62022 Manufacturer code: CA-1D6-00S1WN-00 Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £11.50 By DPD On 23rd Mar 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Thermaltake Core X1 ITX Cube Chassis
Core X1, the first ITX chassis of Core X Series presented by Thermaltake, is a cube case offering endless stackable capacity and expandability for enthusiasts to create massive liquid cooling systems, utilize as a file server as well as accommodate dual systems. Users can customize the chassis for the best viewing presentation with an interchangeable window and I/O panel design. The Core X1 delivers outstanding cooling performance with compatibility for extensive DIY/AIO LCS and overclocking components, further enhancing the reputation that the air-cooling units of this series has become renowned for. It is guaranteed to be an immensely powerful system!

Stackable for Enthusiasts
With its endless stacking design, the Core X1 is in a class above the rest. Virtually limitless utility is possible; it offers an expandable system allowing enthusiasts to incorporate externally-modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby enabling a dedicated top/bottom set-up for pure cooling. When stacked, the maximum radiator length supported is 540mm on the front side.

Remarkable Expansion
Designed for high-end gaming system compatibility, the Core X1’s modular drive racks allow gamers to easily install up to six data storage devices with triple PCI configuration space. VGA of up to 400mm in length, and a tower CPU cooler as high as 200mm. Even with a high-wattage PSU stretching to 220mm in length, it still leaves plenty of space for cable management.

Excellent Ventilation
The Core X1’s unparalleled cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. Two 120mm fan are preinstalled on the front and rear to reassure and guarantee the flow of aeration. The fan brackets can either be adjusted for 120mm, 140mm, or 200mm fans on the top panel.

Chambers Concept
Optimized for space management, the Core X1 is divided into two main chambers: the upper chamber is made for cooling performance and better efficiency, while the lower one is made for PSU and drive bays. Thanks to the removable 2.5”/3.5” drive device racks, there is plenty of flexibility to gain the maximum interior space when needed for advanced cooling performance or liquid systems build.

Fully Modular Design
A “2+4” drive bay concept design for storage devices makes setup super easy and flexible. In addition, a customizable 5.25” & 3.5” drive bay feature enables users to freely interchange the 3.5” hard-drive cages to suit their particular needs.

Interchangeable Window and I/O Panel
Users can customize the chassis for the best viewing presentation with an interchangeable window and I/O panel design.

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment. Features

Case Type - ITX Cube Case
Dimension (H x W x D) - 426 x 280 x 471 mm
Net Weight - 9 kg / 19.9 lb
Side Panel - Transparent Window
Color - Exterior & Interior : Black
Material - SPCC
Cooling System
- Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
- Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Drive Bays
- Accessible : 2 x 5.25’’
- Hidden : 3 x 3.5’’ or 2.5’’ (HDD Cage), 1 x 2.5’’ (M/B Tray)
Expansion Slots - 3
Motherboards - 6.7” x 6.7” (Mini ITX)
I/O Port - USB 3.0 x 2, HD Audio x 1
PSU - Standard PS2 PSU (optional)
LCS Upgradable - Supports 1/2”?3/8”?1/4” water tube
Fan Support
- Front:
3 x 120mm
2 x 140mm
1 x 200mm
- Top:
3 x 120mm
2 x 140mm
2 x 200mm
- Rear:
1 x 120mm or 1 x 140mm
- Bottom:
1 x 120mm
Radiator Support
- Front:
1 x 120mm or 1 x 240mm
1 x 140mm or 1 x 280mm
- Top:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
- Rear:
1 x 120mm or or 1 x 140mm
- CPU cooler height limitation: 200mm
- VGA length limitation: 280mm(with ODD Cage), 400mm(without ODD Cage)
- PSU length limitation: 220mm (With Bottom Fan)
Case Edition Core X1
Case Form Factor Mini-ITX Cube
Motherboard Form Factor Mini-ITX
Material SPCC
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 1 x 2.5" Internal
  • 3 x 2.5"/ 3.5" Internal
  • 2 x 5.25" External
Expansion Slots 3
Fan Bays
  • 3 x 120/140/200mm
  • 1 x 120/140mm
  • 1 x 120mm
Fans Included 2 x 120mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 200 mm
Max VGA Card Length 400 mm
Colour Black
Dimensions 280 x 426 x 471 (WxHxD mm)
Weight 9 kg (Approx)

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Customers also bought
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Thermaltake Core X1 Black mini-ITX Stackable Tower Case with side Window + USB 3.0 w/o PSU (ATX PSU) is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Better than expected Let me start by saying that even though this is an ITX case, it's probably the biggest ITX only case your going to find. When I first mad my ITX build, a small but powerful form factor was what it was all about. However, cramming everything into such a space puts limitations on component choice and thermal performance. This is where this case comes in, it allows you to have just about any sized component without looking silly in a case designed for bigger motherboards. This is the only ITX case I have seen that supports triple slot GPU and extremely large ATX power supplies. By the looks of it you may have to sacrifice the 5.25 bays for the biggest cards though. The case also supports 4 HDDs, one SSD specific slot and the the cage that houses the other 3 can have either 2.5 or 3.5, your choice. The design is basic and cable management is very limited but it seems to do everything else very well. The case can be stacked with another to make one case though i haven't tried this. And because of this all panels are removeable apart from the back. The case also supports full watercooling and the window panel and front connector panel can be used on either side of the case. I was worried about possible quality issues because i'm used to spending a lot more on cases. It's better than expected but not quite 10/10. Probably 8/9. If I had to pick one thing about this case I don't like it's that the DVD drive doesn't line up exactly with the fron of the case, theres around 5mm of difference, not the end of the world but definately noticable. Very Happy with product.
