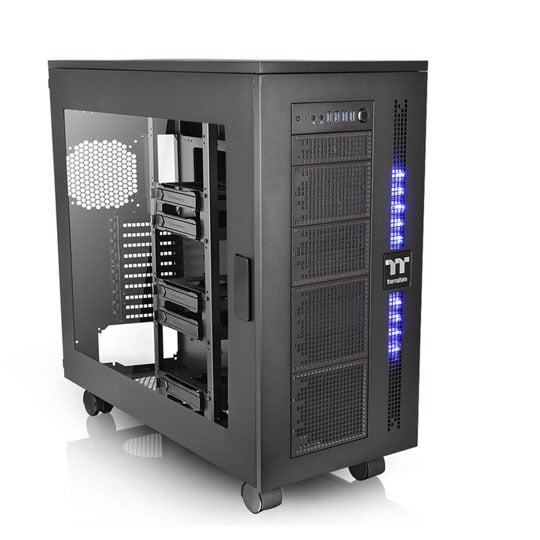

Thermal take Core W100 Large PC Gaming Case with Window/Wheels
Being as the first chassis with full assembly concept, the Core W Series is the great new challenges for makers to start from zero and experience the true “DIY” by putting every piece together to complete a high-end system. The Core W100 is the one and only chassis able to house more than twenty HDD cages and up to 10 expansion slots, which can be served as another workstation in the industrial field. With its unprecedented space for high-end hardware and liquid cooling expansion, the Core W100 supports the latest XL-ATX, E-ATX, ATX, Micro ATX, Mini-ITX motherboards, and also SSI MEB. All standard equipment of the chassis is included, what makers need to purchase is custom liquid cooling components ones need for building up aesthetically-superior water cooling systems by incorporating externally-modular upgrades for their chassis. Features DMD: Dismantlable Modular Design
Being as the first chassis with full assembly concept, the Core W Series is a great new challenge for makers to start from zero by putting every piece together to complete a high-end system. With removable “3 + 10” drive racks and freely interchangeable SSD/HDD cage sections, the Core W100 offers more for maximum interior space. Take advantage to include high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating liquid cooling expansion for the ultimate in cooling performance.
Capable of housing more than 20 HDD cages and 10 PCIe slots, the Core WP100 can be used as another workstation for technical or scientific purposes, holding data or hosting a number of different features between computers. Compatible with the latest Intel processors and AMD/Nvidia graphics cards, the Core WP100 delivers exceptional performances and creates effective work environment.
Designed for high-end gaming system and workstation compatibility, the Core W100’s modular drive racks allow makers to easily install up to more than twenty data storage devices, a dual expansion slot VGA of up to 635mm in length, and a tower CPU cooler as high as 200mm. Even with a high-wattage PSU stretching to 220mm in length, it still leaves plenty of space for cable management. Moreover, a 420mm radiator can be installed at front of the chassis, delivering superior cooling performance.
The Core W100 ’s unparalleled cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. Fans can be mounted anywhere inside the chassis: support up to three 140mm fans at the front and a rear 140mm fan guarantees the flow of aeration; three large 200mm fans on the top panel as well as three 140mm fans at the bottom, while there are still rooms for 120mm, 140mm, and 200mm fans on both sides.
With its stacking design, the Core W100 and the Core P100 make two different combinations: by stacking Core P100 on the top or at the bottom of Core W100. The mix and match of Core WP100 offers an expandable system allowing enthusiasts to incorporate externally-modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby enabling a dedicated top/bottom set-up for pure cooling. When stacked, the maximum radiator length supported is 600mm on the front side.
Expand the limits with the stackable Core P100 Pedestal (sold separately) allowing externally-modular upgrades for even more cooling and power capabilities.
|Case Edition||Core W100|
|Case Form Factor||Super Tower|
|Motherboard Form Factor||
|Front/ Side/ Top Panel||
|Front Radiator Compatibility||1 x 360/420mm|
|Top Radiator Compatibility||1 x 480/560/600mm|
|Bottom Radiator Compatibility||1 x 140/280mm|
|Rear Radiator Compatibility||1 x 120/140mm|
|Side Radiator Compatibility|
|Power Supply Form Factor||ATX|
|Max PSU Length||180/220 mm|
|Max CPU Cooler Height||200 mm|
|Max VGA Card Length||470/635 mm|
|Dimensions||310 x 677 x 678 (WxHxD mm)|
|Weight||8.7 kg (Approx)|
