Scan code: LN44342 Manufacturer code: Z9PE-D8 WS

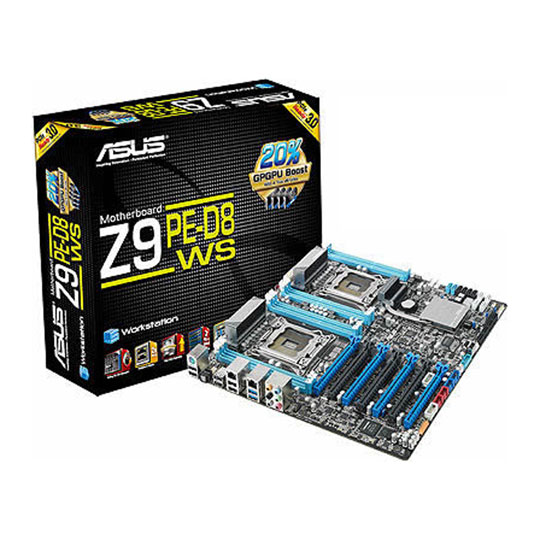

ASUS Z9PE-D8 WS Intel C602 Socket 2011 x2 Workstation Server Board

SUS Z9PE-D8 WS, Intel C602, S 2011 x2, DDR3, SATA III - 6Gb/s, SATA RAID, PCIe 3.0 (x16), EEB Workstation Motherboard

Thumbnail 1 : ASUS Z9PE-D8 WS Intel C602 Socket 2011 x2 Workstation Server Board Thumbnail 2 : ASUS Z9PE-D8 WS Intel C602 Socket 2011 x2 Workstation Server Board Thumbnail 3 : ASUS Z9PE-D8 WS Intel C602 Socket 2011 x2 Workstation Server Board Thumbnail 4 : ASUS Z9PE-D8 WS Intel C602 Socket 2011 x2 Workstation Server Board
Scan code: LN44342 Manufacturer code: Z9PE-D8 WS
3xs Approved
Call for price
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The ASUS Workstation Series is the ideal foundation for a powerful PC. It delivers awesome power, dependable performance and unmatched multiple I/O scalability for the most demanding tasks and future upgrades. The ASUS Workstation Series intelligently reduces operating noise and dissipates heat through advanced and environmentally friendly methods to accommodate user needs. Series motherboards also bring you ultimate reliability and quality through our 24x24 initiative, which means 24-hour non-stop operation and a 24-month life cycle supply guarantee so you're not compelled to change computers often.Instead, let the ASUS Workstation Series improve the quality of your work and life.
Features • Dual Intel® Socket LGA 2011/C602 chipset
• Quad channel 8-DIMM memory
• Enhanced parallel GPU computing power with seven PCI Express 3.0 x16 slots
• Advanced and complete I/O with USB 3.0, SATA 6Gb/s and Intel® Ethernet
• Server-level capabilities with RAID, LAN, and capture cards
• 3X faster performance with ASUS SSD Caching
Specifications
Core Specifications
Edition
Form Factor EEB
CPU Socket 2011 x2
Chipset Intel C602
RAM Memory Support
Memory Type DDR3
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) RDIMM / UDIMM
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866(OC)
  • DDR3 - 2000(OC)
  • DDR3 - 2133(OC)
Max. Memory Capacity 64GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 4 x PCIe 3.0 x16
  • 3 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x Aux-In
  • 1 x EZ Plug connector (4-pin Molex Power connector)
  • 8 x Fan Header (V)
  • 2 x Firewire
  • 1 x Front Panel Audio Header
  • 1 x Reset Button
  • 1 x S/PDIF-Out Header
  • 8 x SATA II - 3Gb/s
  • 6 x SATA III - 6Gb/s
  • 2 x Serial (COM) Header
  • 1 x SMBUS connection
  • 1 x START (Power On) button
  • 1 x System panel connector
  • 2 x USB 2.0 Header
  • 2 x USB 2.0 Port
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-Out (Optical)
  • 6 x USB 2.0
  • 2 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed 8.0 GT/s
Board Dimensions
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548

Additional Notes:
Tel: (+31)-591-570292 ; +420-596-766-891

Server ARS Support Email: [email protected]

ServerCare website: http://support.asus.com/repair.aspx?no=580&SLanguage=en

Customers also bought
Reviews
Questions & Answers

Can this board support the E5-2687W CPU's?

Asked by: kwik
On checking the CPU support for this motherboard here: http://www.asus.com/Motherboards/Z9PED8_WS/#support_CPU It is compatible with the E5-2687W
Answered by: CarlH
Date published: 2015-07-17
