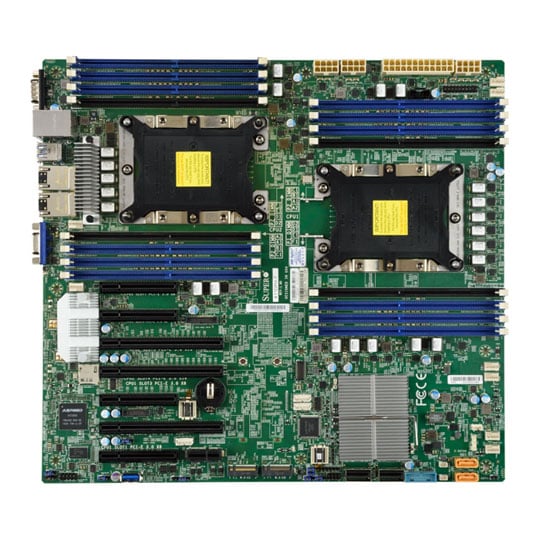

Supermicro X11DPH-T Dual Socket 3647 Xeon Scalable E-ATX Server Motherboard

Supermicro X11DPH-T, Intel C624, S 3647 x2, 16x DDR4, SATA3, PCIe 3.0 x16/x8, Dual M.2 (PCIe), Dual 10GbE, USB 3.0, EATX

Supermicro
Scan code: LN83911 Manufacturer code: MBD-X11DPH-T Request call
£663.98
Pay on Scan Finance with a 10% deposit from just £16.58 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD On 22nd Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview This Dual Intel Xeon Scalable Processor Motherboard from SuperMicro, comes in a E-ATX form-factor and supports up to 2x Intel Xeon Scalable CPUs using the LGA 3647 Socket of a maximum TDP of 205W. Featuring 16 DDR4 DIMM slots, it can support up to 2TB of 3DS ECC RDIMM or 3DS ECC LRDIMM DDR4 memory across 6-channels, while 2x M.2 PCIe Slots are located on the mainboard for super-fast NVMe drives which can be configured in RAID 0 or RAID 1. 3x PCIe x16 & 4x PCIe x8 slots open up a range of options for graphics, storage, co-processing or other expansion cards. 10 SATA3 ports are located on-board supporting the core RAID modes for your HDDs or SSDs, whilst Dual 10GbE Ethernet Ports are provided to support today & tomorrows network infrastructure. Features • Intel® Xeon® Scalable Processors, Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s, CPU1: Skylake-F CPU supported.
• Intel® C624 Chipset.
• Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots.
• 3x PCI-E 3.0 x16, & 4x PCI-E 3.0 x8 Slots
• Dual M.2 22110 (PCI-E 3.0 x4) with M-Key RAID 0,1 Support.
• 1x VGA port.
• Intel® C624 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10.
• Dual LAN with 10GBase-T with Intel® X557.
Specifications
Core Specifications
Form Factor E-ATX
CPU Socket 3647 x2
Chipset Intel C624
RAM Memory Support
Memory Type DDR4
Memory Channel Hex (6)
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 2048GB (16x128GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support N/A
Crossfire Support N/A
On-Board Graphics Connectors D-Sub (VGA)
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22110, PCIe 3.0
  • 3 x PCIe 3.0 x16
  • 4 x PCIe 3.0 x8
SATA Support SATA3
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~9 ONLY)
  • RAID 5 (SATA 0~9 ONLY)
Internal I/O
  • 7 x Fan Header (V)
  • 10 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 3.0 Header
  • 1 x USB 3.0 Type-A
External Connectivity
Network Interface Type Dual Wired 10G LAN
Network Chip/Modules 1 x Intel® X557 (10GbE LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA) Out
  • 2 x RJ-45
  • 1 x Serial (COM)
  • 4 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
