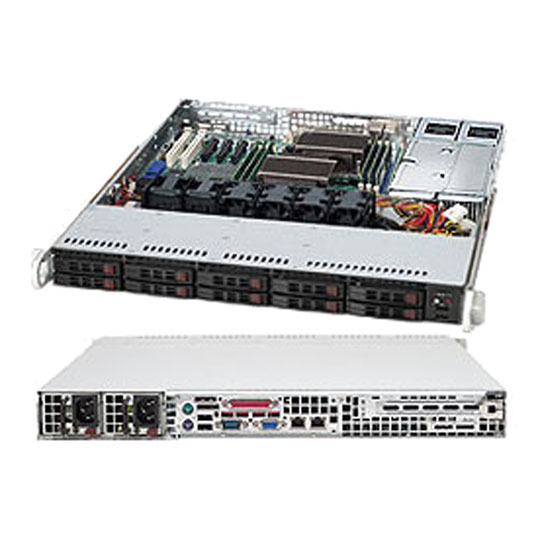

Supermicro 1U Rackmount SuperChassis Server Case 116TQ-R700CB

Supermicro SuperChassis CSE-116TQ-R700CB 1U Rackmount, 10x 2.5" SAS/SATA Hot-swap, 1x FHFL Slot, 700W Redundant PSU

Supermicro
Scan code: LN64487 Manufacturer code: CSE-116TQ-R700CB Request call
£598.99Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview Supermicro 1U Rackmount SuperChassis for Servers with Motherboard up to 12" x 13", with 700W Redundant Power Supplies.

More information can be found in the PDF below:
Data Sheet Features • 700W High-Efficiency Gold Level Redundant Power Supplies
• 10x Hot-swap 2.5" SAS/SATA HDD tray
• 1x Full-height, Full-length expansion slot
• 4x 40x56mm counter-rotating fans
• Supports maximum motherboard size 12" x 13"
• Optimized for DP motherboards

Parts List:
• 1x Chassis: CSE-116TQ-R700CB 1U Chassis (Black)
• 1x Backplane: BPN-SAS-116TQ BPN-SAS-116TQ
• 2x Cable 1: CBL-0206L 48CM SATA ROUND S-S PBF. 26AWG
• 3x Cable 2: CBL-0157L 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
• 2x Cable 3: CBL-0227L 48CM SATA ROUND S-RA PBF.26AWG
• 2x Power Supply: PWS-704P-1R 1U REDUNDANT PWS PMBUS GOLD EFFICIENCY 54.5MM
• 1x Power Distributor: PDB-PT112-2424 SC112 24PIN REDUNDANT PWS DISTRIBUTOR
• 1x Accessory: MCP-420-11601-0N Accessory Box For SC116 Chassis With Two Power Cords
• 1x Cable 4: CBL-0263L 2CH USB 2.0 10 pin to 10 pin cable, 77cm. 26AWG
• 2x Cable 5: CBL-0160L NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
• 1x Cable 6: CBL-0335L FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,73CM,PBF. 28AWG
• 4x Fan 1: FAN-0101L4 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
• 1x Fan Holder: MCP-320-00028-0B Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
• 24x Fan Holder: MCP-320-00027-0B Plastic pin for 40x28, 40x56 fan
• 2x Fan Holder: MCP-340-00035-0B Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
• 10x Drive Tray(s): MCP-220-00047-0B Black gen 3rd hot-swap 2.5inch HDD tray
• 1x Part(s): MCP-260-00024-0N 1U I/O shield for X8 server MB (3rd LAN + 4xLAN)
• 1x Part(s): MCP-260-00041-0N 1U I/O shield for X9 socket R server MB with Gasket
• 1x Mounting Rails: MCP-290-00043-0V Rail set for SC113
• 1x Rear Window: MCP-240-00086-0N STD rear window for SC113 redundant PWS
• 1x Air Shroud: MCP-310-19002-0N SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
Specifications
Specifications
Case Edition SuperChassis
Case Form Factor 1U Rackmount
Motherboard Form Factor Upto 12" x 13"
Material Metal
Front/ Side/ Top Panel
  • 1 x Hard drive activity LED
  • 2 x Network activity LEDs
  • 1 x Power LED
  • 1 x Power On/Off button
  • 1 x Universal Information (UID) Button
  • 1 x Universal Information (UID) LED
  • 2 x USB 2.0
Drive Bays 10 x 2.5" SAS / SATA Hot-swap
Expansion Slots 1
Fan Bays 6 x 40mm
Fans Included 4 x 40mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window No
Power Supply Form Factor Redundant AC-DC High-Eff with PMBus and I2C
Max PSU Length
Max CPU Cooler Height
Max VGA Card Length
Colour Black
Dimensions 437 x 43 x 597 (WxHxD mm)
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
