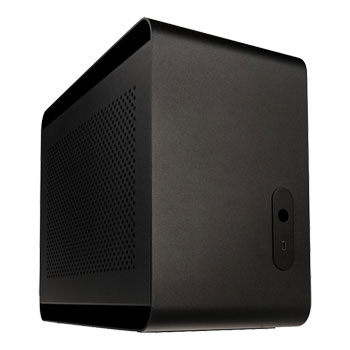

Streacom DA2 Mini ITX Premium Aluminum Case - Black
Streacom DA2 Black Full Aluminium Compact ITX Computer Case, Mini ITX, 6x 3.5"/2.5", Dual Slot GPU ATX/SFX PSU
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£199.99|
|Total inc. interest:||£215.45|
|Instalment Rate:||14.9% p.a. (fixed)|
|Cost of purchase:||£199.99|
|Total inc. interest:||£230.37|
Purchase Rate: 19.9% p.a. (variable)
Representative: 19.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 17th Aug
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
So what makes this case different? Streacom thinks it starts from an easily overlooked but fundamental difference. Unlike many companies on the market, Streacom don’t use a 3rd party to manufacture, everything is done in-house, so instead of reusing the same tooling or following a forced design path, they have the freedom to explore a different approach and create something new. Of course there are brands that do their own manufacturing but they tend to be large legacy companies that are slow to push for change and content to remain in their comfort zone.
Streacom’s innovation is also driven by the inherent constraints of the materials they use. Aluminium might be cheaper than steel but that is the raw cost and only half the story as processing and finishing costs for aluminium are much higher. This forces Streacom to constantly rethink how their products are engineered in order to stay competitive.
With the DA2, Streacom developed a new technique for assembling the outer body and internal frame. This eliminates the need for bonding studs to the aluminium, resulting in an improved finish and the ability to re-orientate the outer frame, adding to the flexibility and customisation potential.
The Devil is in the Detail
It’s easy to assume that just because a case uses aluminium and looks great in photos, it’s going to have the same look and feel when it’s sitting on your desk in the flesh. Whether it’s using rivets instead of screws, 1.5 instead of 3 mm thick aluminium, or a brushed finish instead of sandblasted. Those seemingly tiny details add up to vastly impact the real world experience.
For example, take the power button. It is made from glass and features a discrete pinpoint of centred white light (sorry, no RBG, deal with it!) designed to allow for different orientations and looks subtle and sophisticated. Using glass also gives a better tactile feel and contrast from the aluminium body.
The power button is mounted on what Streacom call the front I/O which is milled from a solid block of aluminium and includes a single USB type-C connector (finally a USB socket that looks good enough to place on the front). The entire assembly has been designed with future proofing in mind. Type-C might be all the rage, but tech changes all the time, so the front I/O is designed to be removable and interchangeable. Should USB change, you wont need to replace the entire case, Streacom can simply fabricate an updated front I/O or even an entirely different set of ports if there is a demand for it.
The typical approach to the expansion card support is to punch a flap in the rear panel which form the opening and acts as the screw fixing post. To cover the hole, another “L” shaped bracket is fabricated and screwed to the back panel. It’s an industry standard and simple solution, but it’s visually unappealing and the cost cutting easy option.
Just like the front I/O, the PCI support is also milled from a solid block of aluminium, so even though it’s on the back of the case and arguably out of sight, Streacom didn’t cut corners on the design and build quality.
These seemingly insignificant differences and the refusal to compromise cement Streacom’s attention to detail. When combined, such factors set this case apart and why it’s difficult to compare it on spec alone.
The Universal Approach
Dedicated bays for drives, fans, radiators, etc are great for making builds fast and easy but terrible if you want to optimise the usable space and create a truly customisable platform. When Streacom created their last two cases, the F12C and the DB4, they pioneered the use of something they call the universal bracket. The DA2 also utilises this innovative approach with a track that is integrated into the frame, allowing the brackets to be fitted anywhere along the sides of the case.
There are two sizes of universal bracket, the vertical (on the sides) and the horizontal (top and bottom) that allow virtually anything with mounting holes to be fitted. Other than the motherboard and expansion card (which can still be flipped if needed), every component can be repositioned anywhere along the tracks, giving unprecedented levels of customisation.
So with these tracks and brackets, what can I fit? Well, it’s a little tricky to give a definitive answer because so much depends on what combination of components you use, but the general rule is this... if it physically fits inside the case, there is going to be a way to mount it :)
Coming from a background in fanless cases, Streacom thought it would help if they looked to the competition for inspiration and noticed a trend, “restrictive front panel airflow”. Not content with simply imitating, they took it to the next level, the DA2 has ZERO front panel airflow.
Jokes aside, there really is no front panel airflow but the good news is that every other panel is extremely well vented, with over 2000 precision holes on the sides and back panel. The upper and lower panels feature mesh grills and whilst they are partially concealed by the outer frame, (which is a character design feature) the opening is wide enough to be unrestrictive. This results in excellent airflow from every side of the case (other than the front). It’s worth considering that not many cases have such great clearance for lower air intake.
The universal brackets accept anything from a 60mm fan, all the way up to a 280mm radiator, with any size in between, so your high performance components are not going to suffer from overheating.
Let’s address the elephant in the room, no there are no supplied fans! Why? This is because there are so many different configurations, there really is no correct fan to include. So supplying a fan (or two) just doesn’t make sense.
Big but Small
If portability is what you need, “smaller is better” is a hard argument to challenge but when it comes to a typical desktop setup, the argument is not so clear cut. With the current smallest gaming capable ITX cases coming in at 7.5l, it’s easy to think that 17.5l is going to take over your desk, but let’s put that 10l difference into perspective and consider the real world differences.
In the image below there is a difference in depth of just 23mm (340-317), which is really negligible and won’t have a noticeable impact on desk real estate. Streacom needed this extra 23mm to allow for longer graphics card and the use of an ATX PSU which makes it worthwhile.
Height is the biggest numerical difference, with the DA2 being a whopping 81mm taller but unless your PC is going on a shelf, everything above the case is dead space anyway, so does it really have an impact? It’s also worth considering that 52mm of that height difference is open space at the top and bottom of the case which forms part of the design and contributes to the excellent airflow. Streacom like to think it’s a sensible tradeoff for adding that extra airflow.
Width is the main practical difference in terms of desk space as that accounts for an additional 68mm which is about the diameter of a soft drink can, but that sacrifice gives you 145mm of clearance for an air cooler. Again it’s a carefully considered trade off if it means your system is going to run cooler and quieter. Noise is going to be a far larger distraction than size, especially for a case designed to be placed on your desk.
In short, the DA2 is a compact ITX case designed to strike a balance between size and compatibility, allowing high performance components to fit comfortably in a small form factor space. Its unique approach to mounting components makes the case incredibly versatile, greatly improving the range of hardware and type of systems it can be used for. Visually the DA2 is another testament to what Streacom does best... minimalise... innovate... timeless design.
• Extremely customisable rail system.
• Excellent ventilation.
• Accommodates mini-ITX motherboard, full sized graphics cards and water cooling.
• Supports ATX or SFX power supplies.
|Core Chassis Specifications|
|Case Edition||Streacom DA2 Full Aluminium Compact ITX Chassis|
|Case Form Factor||Mini-ITX|
|Motherboard Form Factor||
|I/O, Bays & Expansion|
|Front/Side/Top Panel I/O||1 x USB 3.0 Type-C|
|Drive Bays||6 x 3.5" / 6x 2.5" Internal|
|Standard Expansion Slots||2 (Dual Slot)|
|Vertical Expansion Slots|
|Fans & Filters|
|Liquid Cooling Support|
|Front Radiator Compatibility|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility|
|Side Radiator Compatibility||1 x 280mm|
|Max CPU Cooler Height||145 mm|
|Max GPU Card Length||330 mm|
|Cable Routing Space||Yes mm|
|LED Lighting Functionality|
|LED Lighting Emitters|
|LED Lighting Colour|
|LED Lighting Support & Control|
|Power Supply Compatibility|
|PSU Wattage (If Included)|
|PSU 80+ Rating (If Included)|
|PSU Support||SFX / SFX-L|
|PSU Mounting Location|
|Max PSU Length|
|Chassis Physical Specifications|
|Chassis Contruction Materials||Aluminium|
|Dimensions||340 x 286 x 180 (WxHxD mm)|
|Weight||3.9 kg (Approx)|
|Please Note||Also Accepts ATX PSU|
