Steinberg UR24C USB 3.0 Audio & Midi Interface

Steinberg UR24C Audio Interface, 2 x 4 USB 3.0, 2 x D-PRE and 32-bit/192 kHz

Thumbnail 1 : Steinberg UR24C USB 3.0 Audio & Midi Interface Thumbnail 2 : Steinberg UR24C USB 3.0 Audio & Midi Interface Thumbnail 3 : Steinberg UR24C USB 3.0 Audio & Midi Interface Thumbnail 4 : Steinberg UR24C USB 3.0 Audio & Midi Interface
Scan code: LN106045 Manufacturer code: 47636
£175.00
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £15.71 / month (APR 14.9%)
Monthly Payment: £30.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £175.00
Total inc. interest: £182.20
Monthly Payment: £15.71
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £175.00
Total inc. interest: £188.52
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 1st Jun to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Steinberg UR24C
2 x 4 USB 3.0 Audio Interface

Steinberg UR24C

featuring 2 Class-A D-PRE mic preamps Introducing the new ‘UR24C’ from Steinberg. The addition of the UR24C see’s the completion of Steinberg’s hugely popular ‘UR-C’ interface lineup. Steinberg’s latest interface is a 2-in/4-out USB 3.0 audio interface, which boasts two world-renowned D-PRE microphone preamps, alongside stellar 192kHz/32-bit audio quality which manages to capture with great detail all the subtleties and expressiveness of any audio source.

Record your Music Anywhere, Anytime!

Steinberg UR24C Lifestyle Studio

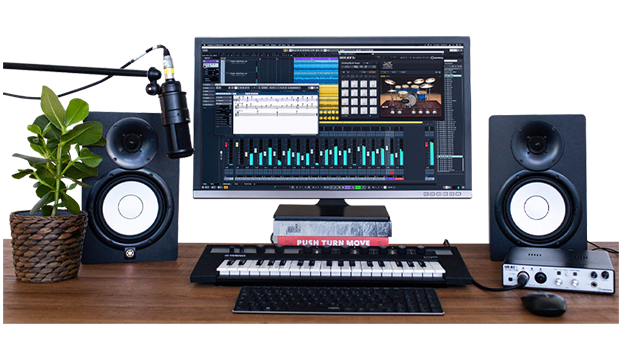

Capture the subtlest nuance of every soundThe UR24C is a superb choice for recording and music production. The high-quality combo inputs, D-PRE preamps, onboard phantom power, 32-bit/192kHz recording quality, MIDI I/O, zero-latency monitoring with DSP effects and simple, quick connection to computers and iOS devices via ‘SuperSpeed USB 3.1 Gen 1’ with USB-C mean you are always working in a world of clear, versatile sound.

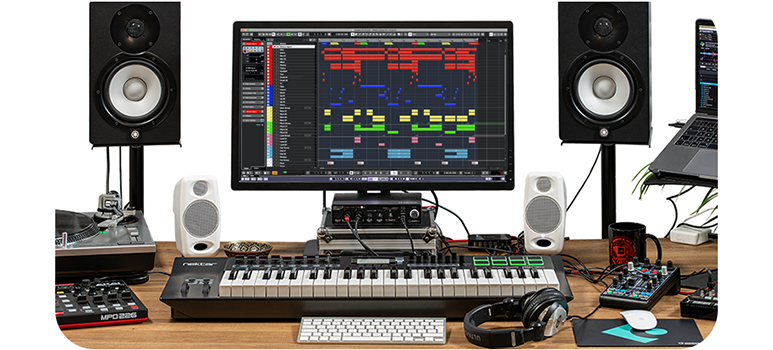

The UR24C’s chassis is sleek, compact and tough, and coupled with it’s lightweight build, make it a wonderful choice for those producers and performers who often have to travel. You can also connect two sets of studio monitors to analyse your mixes thoroughly. Alongside the included Cubase AI software and Cubasis LE iOS app, you can be up and ready to record right away with Mac, PC or iOS devices.

The Perfect Choice for Performing DJ's

back

dual monitor modesThe UR24C’s dual monitor modes make it the perfect choice for playing DJ sets as well as recording with. Once in ‘DJ Mode’, it’s possible to choose between Split and Stereo monitoring, either directing the mono master sound to the right side of the headphone mix and the mono cue sound to the left, or, have both in stereo, using the ‘Mix’ control to balance or mix as per requirements.

As you’d expect from Steinberg, the UR24C’s is comprised of only the finest components, it is easily portable and features seamless connectivity options to PC/Mac/iOS via SuperSpeed USB 3.1 Gen 1 with USB-C which means you needn’t have any concerns about playing your sets anywhere, and you can rest safe in the knowledge that every nuance and beat of your music is delivered in staggering detail.

Reliability When it Matters Most

back

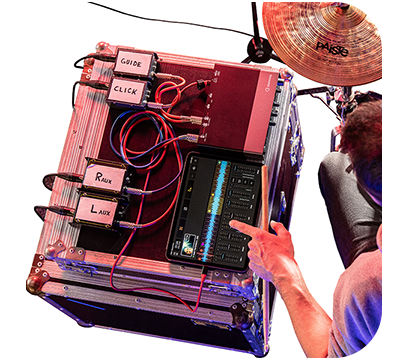

support for mac/pc/ios and most DAW'SThe UR24C is a great onstage partner. As well as its rugged, road-ready construction and high-quality, reliable performance, you can use its multiple outputs for providing click and guide tracks to band members while sending the stereo backing track to the FOH mixing desk.

Support for PC, Mac and iOS allows for using a wide range of DAWs, like Cubase, Cubasis or any other multi-track playback application, while the MIDI connectors allow you to incorporate a wide range of hardware controllers for triggering loops and other sounds.

It all means you can deliver a full performance, no matter whether you are a solo artist or a band member, making sure that all backing tracks are played reliably.

An Overview of the Steinberg UR24C

4K Recording

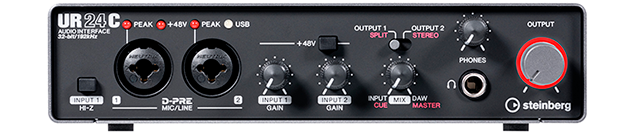

at a glanceSteinberg’s latest and final addition to the ‘UR-C’ family is perhaps their most versatile and innovative yet. Packed with features to streamline your audio projects into a handy, intuitive workflow, and crammed with only the finest quality components, the UR-24C is a powerful, easily portable 2 x 4 USB 3.0 Audio Interface. Read on below for an in-depth look at some of the features onboard.

down

Hi-Z Input 1Switchable impedance on Input 1 lets you use it for both high impedance (for example, directly connected electric guitar or bass) or low impedance (such as keyboards, electric guitar via effects units) instruments.

up

Input 1/2 Gain controlConnect microphones via XLR plugs and use the brilliant, transparent sound of the Class-A D-PRE mic preamps to capture your voice or acoustic instrument.

up

USB indicatorIndicator lights up when the power is turned on and the audio interface is communicating with your computer or iOS device. If your computer or iOS device does not recognize the interface, the indicator will flash.

up

+48 V phantom powerThe UR24C provides +48 V phantom power for when you’re using large (studio) or small diaphragm condenser microphones. The indicator lights up when the +48 V switch on the UR24C is turned on.

down

Mix controlThis control adjusts the balance of the output signal. he UR24C has two different monitor modes – DAW and DJ — which can be switched in the Setup window of the dspMixFX UR-C application.

up

Slide switchThis function varies, depending on whether DAW or DJ monitor mode is selected. In DAW mode the switch selects either output 1 or output 2 as the headphone source. In DJ mode the switch selects between Split and Stereo.

up

Phones jack with volume controlYou can connect a set of stereo headphones to this 6.3 mm jack for monitoring. The volume control adjusts the output signal level of the phones jack.

up

OUTPUT control andThis control adjusts the output signal level of the main outputs on the rear panel. The power indicator ring lights up when the audio interface is receiving power and it will flash continuously if the power supply is insufficient.

Included Software

Cubase AIBased on Steinberg’s award-winning advanced music production system Cubase Pro, Cubase AI is a powerful, one-stop music software solution for studio-quality recording. Combining audio and MIDI recording, editing, mixing and scoring in a single, integrated software package, Cubase AI is the perfect entry into the world of computer-based music production.

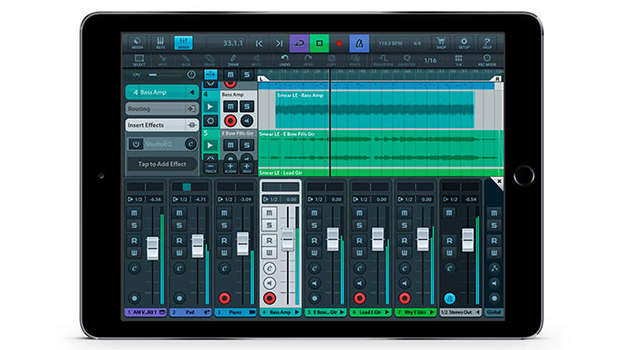

Cubasis LEUR-C’s seamless integration with iPad is enhanced by the inclusion of Cubasis LE, for creating professional music productions on your iPad. Featuring the same look and feel of its bigger brother Cubasis, Cubasis LE is especially designed for quick and easy operation, making recording, editing and mixing a breeze, as well as opening up a new world of possibilities for your creativity.

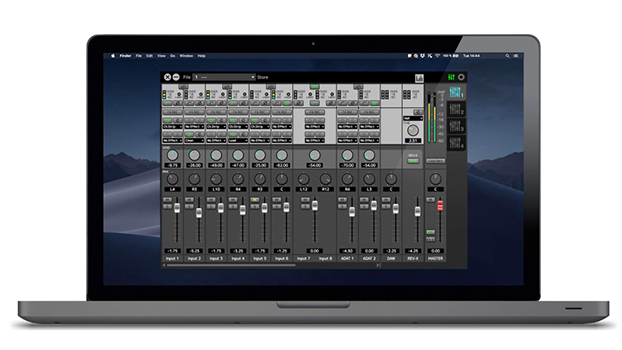

dspMixFX Mixing AppUR-C interfaces provide zero-latency monitoring with effects for every DAW, with straightforward control of all routings and settings, thanks to the built-in DSP chip and the dspMixFx UR-C software. Powered by Yamaha’s custom-designed SSP3 DSP chip, dspMixFx technology offers latency-free monitoring, together with the highly acclaimed REV-X reverb, the Sweet Spot Morphing Channel Strip and Guitar Amp Classics for users of any DAW software.


Included Effects • Bundled effects plug-in suite
• REV-X reverb
• Sweet Spot Morphing Channel Strip
• Guitar Amp Classics

A Visual Introduction to the Steinberg UR24C

The Steinberg UR24C, a compact audio interface with unique switchable monitoring modes that make it the perfect solution for recording music with a DAW or performing a great DJ or live music set. The 2 x 4 interface features high quality Class A Yamaha D-PRE preamps and 32-bit / 192 kHz recording quality for sparkling sound, with fast and reliable USB 3.0 Type C connectivity.

The Tech Spec

Features Specification
AD/DA 32 bit
Maximum sample rate 192 kHz
Dynamic range input 102 [dB]
Total number of Inputs 2
Total number of indiviudal outputs 4
Total number of Outputs 6
Microphone preamp D-PRE
Microphone inputs 2
Inputs with line level 2
Inputs with HI-Z 1
Analog input Combo 2
Analog output TRS 2
Phantom power 2
Headphone With dedicated volume control
Headphones outputs 1
Operating systems (Mac) macOS Sierra, macOS High Sierra, macOS Mojave, macOS Catalina
Operating systems (Windows) Windows 7 (64-bit), Windows 8.1 (64-bit), Windows 10 (64-bit)
Operating systems (iOS) iOS 10, iOS 11, iOS 12, iOS 13
Port USB Type-C, USB 3.0, USB 2.0
CPU minimum Intel Core i-series multicore processor 2 GHz or faster, or AMD equivalent processor
RAM minimum 2 GB
Hard disk free space 1200 MB
Specifications
Computer Interface Type USB 3
Analogue Inputs (Total) 2
Analogue Outputs (Total) 4
Connections (Input)
  • 1 x Instrument
  • 1 x MIDI
Mic Preamps (Max) 2
Instrument Inputs (Max)
Phantom Power Yes
Sample Rate (Max)
Bit Resolution 32
iPad Compatible Yes
Dynamic Range 102 dB
Connections (Output)
  • 1 x Headphone (TRS 6.35mm Jack)
  • 1 x MIDI
Dimensions (mm) 198x47x159 WxHxD
DSP Processing Yes
Misc. Notes n/a
Additional Information
Scan Code LN106045
Model Number 47636
GTIN 4957812654456
