Sonnet - 'Echo 5 Thunderbolt 4 Hub'

Sonnet Echo 5 Thunderbolt 4 Dock

The Highest-Bandwidth, Most Versatile Connection AvailableThe Thunderbolt hub you've always wanted, without paying for the extra features you don’t need. A single cable powers your laptop and connects to multiple Thunderbolt and USB peripheral devices. Sonnet’s Echo™ 5 Thunderbolt 4 Hub – the compact universal hub for today and tomorrow.

Thunderbolt 4

Sonnet Echo 5 Thunderbolt 4 Dock

Directly attach three Thunderbolt peripherals – and daisy chain up to a total of 5 devices

Sonnet Echo 5 Thunderbolt 4 Dock

Alternate use—attach three USB devices to Thunderbolt ports (or at the end of Thunderbolt chains)

Sonnet Echo 5 Thunderbolt 4 Dock

Attach one USB device with Type A connector

Sonnet Echo 5 Thunderbolt 4 Dock

Connect up to two 5K displays; or a single display up to 8K resolution!

Sonnet Echo 5 Thunderbolt 4 Dock

Charge your laptop

Sonnet Echo 5 Thunderbolt 4 Dock

Charge your phone or tablet

85W of Power Delivery

Sonnet Echo 5 Thunderbolt 4 Dock

Connect to Your Peripherals and Power Your Computer with One CablePlug in your Thunderbolt devices, monitor(s), and USB peripherals, and then connect them all to your computer from the hub with the included Thunderbolt cable. The Echo 5 Thunderbolt 4 Hub will even power your laptop with up to 85W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.

Turn One Thunderbolt Port Into Three

Sonnet Echo 5 Thunderbolt 4 Dock

Flexible Device Connectivity for Work and PlayBased on the Intel® Goshen Ridge controller, the Echo 5 Thunderbolt Hub features four Thunderbolt 4 ports; one for connection/power to your computer, plus three to directly connect Thunderbolt peripheral devices (and daisy chain up to a total of 5 devices). The Thunderbolt ports also support USB4 and USB 3 peripherals. For bus-powered devices, the Hub’s Thunderbolt peripheral ports provide 15W per port, supporting the most demanding bus-powered Thunderbolt and USB peripherals—they can even charge your iPhone® or iPad® twice as fast as using the USB Type A port.

Versatile Thunderbolt expansionPerfect for Thunderbolt 4 Windows and Thunderbolt 3 and 4 Macs (including Apple® M1 Macs with dual Thunderbolt/USB4 ports). Connect the hub and create three separate independent Thunderbolt expansion chains. Add and disconnect devices from one chain without affecting the others.

Multiple Workflow Options

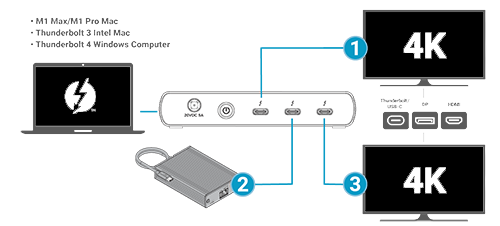

Sonnet Echo 5 Thunderbolt 4 Dock

Port 1: 4K Thunderbolt/USB-C Monitor, or DisplayPort®/HDMI® Monitor (with Adapter)

Port 2: ‍Sonnet Solo10G™ 10GbE Network Adapter

Port 3:‍ 4K Thunderbolt/USB-C Monitor, or DisplayPort/HDMI Monitor (with Adapter)

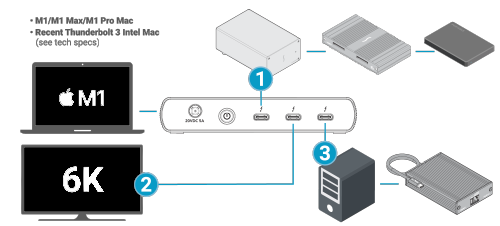

Sonnet Echo 5 Thunderbolt 4 Dock

Port 1: ‍Sonnet Echo Express SE I (with audio capture card) + Sonnet CFast 2.0 Pro Card Reader + Bus-powered Thunderbolt 3 SSD Drive

Port 2: ‍6K Display

Port 3:‍ Thunderbolt Desktop RAID Storage + Sonnet Solo10G 10GbE Network Adapter

Sonnet Echo 5 Thunderbolt 4 Dock

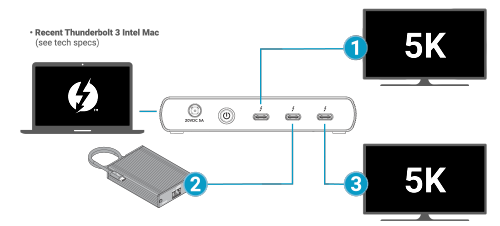

Port 1: 5K Display

Port 2: Sonnet Solo10G 10GbE Network Adapter

Port 3:‍ 5K Display

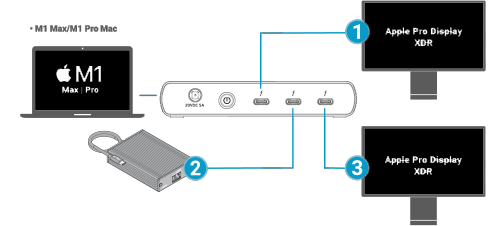

Sonnet Echo 5 Thunderbolt 4 Dock

Port 1: Apple Pro Display XDR® or 4K Display

Port 2: ‍Sonnet Solo10G 10GbE Network Adapter

Port 3:‍ Apple Pro Display XDR or 4K Display

Sonnet Echo 5 Thunderbolt 4 Dock

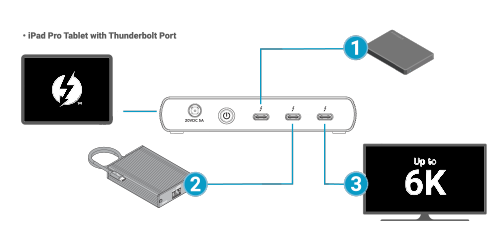

Port 1: Bus-powered Thunderbolt or USB SSD

Port 2: ‍Sonnet Solo10G 10GbE Network Adapter

Port 3:‍ ‍Mirrored Display up to 6K

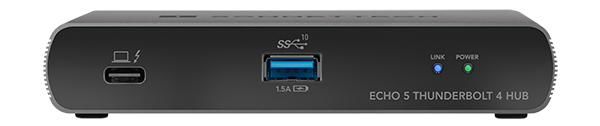

Powerful 10Gbs Front Panel USB Port

Sonnet Echo 5 Thunderbolt 4 Dock

Super Fast USB NVMe SSDs at Full SpeedThe Echo 5 Thunderbolt 4 Hub features a USB 3.2 Gen 2 (10Gbps) Type A port on the front to support super fast USB NVMe SSDs at full speed. And unlike some other hubs, the Echo 5 doesn’t skimp on power either—it provides up to 7.5W, ensuring bus-powered devices will operate without fail.

USB Charging

Sonnet Echo 5 Thunderbolt 4 Dock

Charge iPhone, iPad, USB DevicesThe Echo 5 hub also supports charging your iPhone, iPad, or other device that charges over USB.

Thunderbolt Certified

Sonnet Echo 5 Thunderbolt 4 Dock

Thunderbolt Certified for Mac and WindowsThe Echo 5 Thunderbolt 4 Hub is certified for use with M1 Max/M1 Pro/M1 Mac computers, Intel Macs with Thunderbolt 3 ports running macOS® 12 (Monterey) or 11 (Big Sur), and Windows computers with Thunderbolt 4 ports.

Key Features

Sonnet Echo 5 Thunderbolt 4 Dock

One Cable peripheral ConnectionInstant access – plug peripherals into the Echo 5 and connect your computer to the hub with the included Thunderbolt cable.

Sonnet Echo 5 Thunderbolt 4 Dock

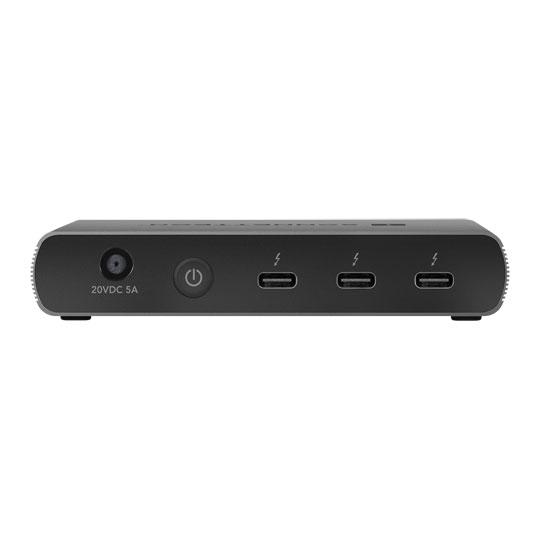

Five PortsIncludes four Thunderbolt 4 ports, one USB 3.2 Gen 2 Type A (charging) port.

Sonnet Echo 5 Thunderbolt 4 Dock

Three Thunderbolt 4 Ports for PeripheralsConnects three Thunderbolt peripherals directly (with support for daisy chaining additional peripherals). Also supports USB4 and USB 3 devices.

Sonnet Echo 5 Thunderbolt 4 Dock

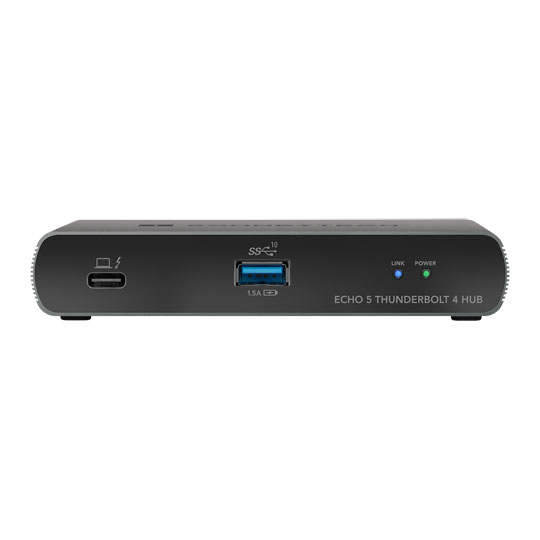

Powerful 10Gbps USB Type A Charging PortFront panel USB 3.2 Gen 2 (10Gbps) port supports super fast USB 3 NVMe SSDs at full speed. Provides up to 7.5W of power, ensuring bus-powered devices will operate without fail; can also charge an iOS device or other device that charges via USB.

Sonnet Echo 5 Thunderbolt 4 Dock

Support for 4K, 5K, 6K and 8K @60Hz DisplaysDepending on your computer, supports up to two 5K displays or a single 4K, 5K, 6K, or 8K display

Sonnet Echo 5 Thunderbolt 4 Dock

Many Display Interfaces SupportedConnect Thunderbolt and USB-C displays directly. Supports HDMI and DisplayPort displays with a Thunderbolt-compatible adapter (sold separately).

Sonnet Echo 5 Thunderbolt 4 Dock

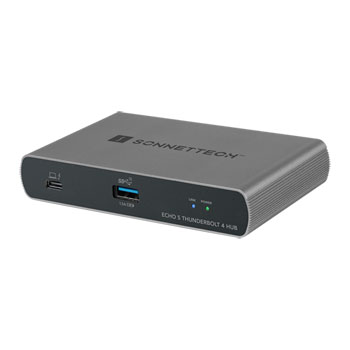

Travel-Sized Thunderbolt Port ExpanderMeasuring just 5.1 inches wide by 2.8 inches deep by 0.9 inches high, the hub can be tossed into your backpack with your laptop or tablet to provide the extra Thunderbolt and USB connectivity you need on the go.

Sonnet Echo 5 Thunderbolt 4 Dock

Charge Your ComputerProvides up to 85W through the included Thunderbolt cable to power and charge your laptop.(2)

Sonnet Echo 5 Thunderbolt 4 Dock

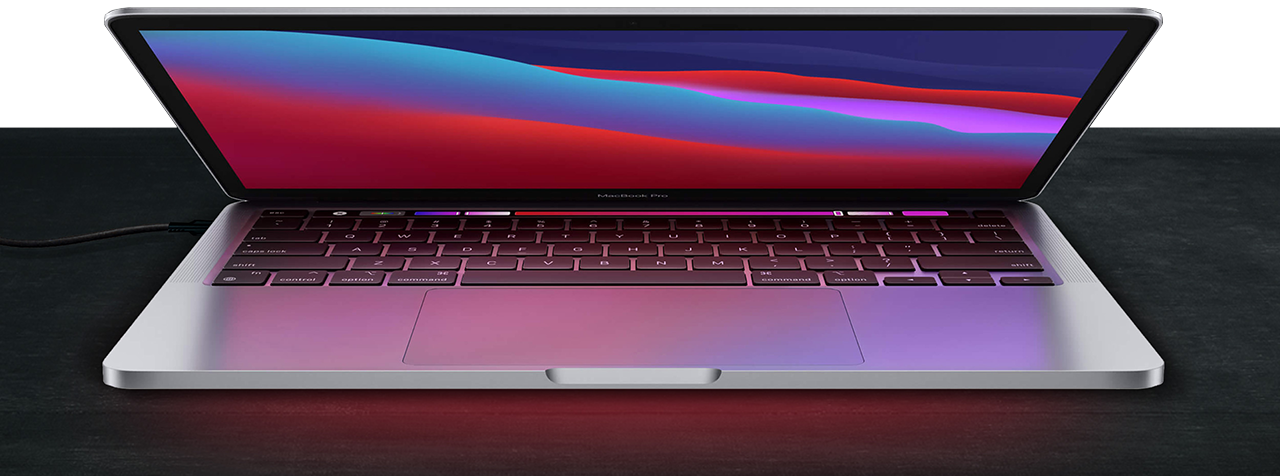

Apple M1 CompatibleSupports all Apple M1/M1 Max/M1 Pro computers.

Sonnet Echo 5 Thunderbolt 4 Dock

Intel Mac CompatibleSupports all Thunderbolt 3 Mac computers running macOS 12 or 11

Sonnet Echo 5 Thunderbolt 4 Dock

Intel Windows CompatibleSupports all Thunderbolt 4 Windows computers

Sonnet Echo 5 Thunderbolt 4 Dock

Apple M1 iPad Pro CompatibleSupports all iPad Pro tablets with a Thunderbolt port.

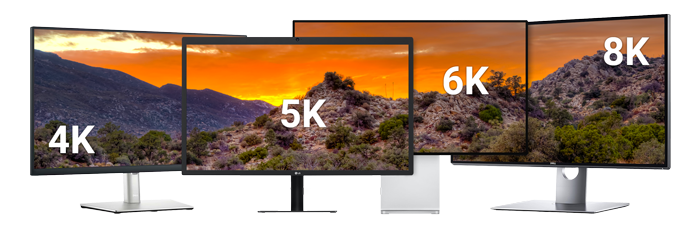

Display Delight

Sonnet Echo 5 Thunderbolt 4 Dock

Connect up to One 8K, Two 5K, or Two Apple Pro Display XDR MonitorsDepending on your computer’s video capability, the Echo 5 Hub supports one (always 4K or 5K; up to 6K or 8K) monitor through its Thunderbolt ports, or up to two 5K or Apple Pro Display XDR monitors. You can plug in Thunderbolt 3 or USB-C monitors directly, or, you may connect other display types (HDMI, DisplayPort, etc.) by using a Thunderbolt compatible adapter (sold separately).

Portable Partner

Sonnet Echo 5 Thunderbolt 4 Dock

Small Enough to Take with YouPack the hub instead of the power brick. The Echo 5 Thunderbolt 4 Hub and power adapter are small enough to fit in your backpack. The hub can charge your laptop and also provide the extra connections you need on the go.

Specifications
Interface Thunderbolt 4
Compatible cards
Internal/External External
Drive Bay Compatibility N/A
Colour Grey
