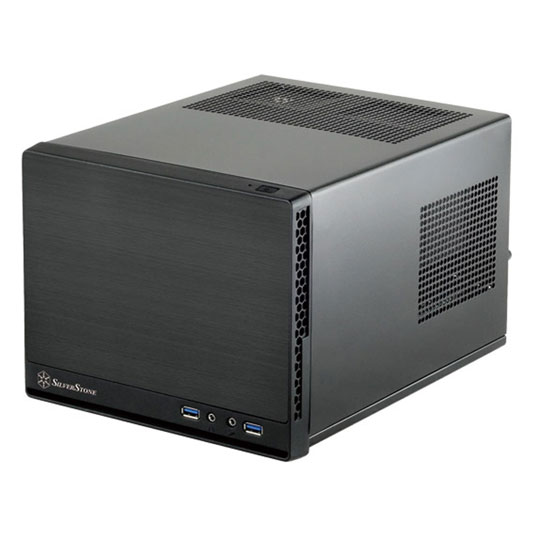

Silverstone Sugo SG13 mini-ITX/DTX Cube Case

Silverstone Sugo SG13B-Q Black mini-ITX Case (Std ATX PSU)

Scan code: LN62745 Manufacturer code: SST-SG13B-Q Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 24th Apr 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview After bringing Mini-ITX into mainstream DIY (do it yourself) market in 2009 with the Sugo SG05, SilverStone is looking to define the category again with SG13, a newly evolved design that aims to satisfy every type of computer users. At only 11.5 liters in size, it has suitably small statue for easily integrating into numerous computing environments and will comfortably fit many standard components for general purpose or office builds.

For enthusiasts and in keeping with Sugo series’ famed tradition, the SG13’s ability to fit 10.5” long expansion card, standard ATX power supply, and all-in-one liquid cooler in 120mm or 140mm size will help produce amazingly small and powerful systems. Features • Support standard-length expansion cards (10.5 inches)
• Mini-DTX / Mini-ITX motherboard & ATX PSU compatible
• Support 120mm or 140mm single fan All-in-One Liquid Cooler
• Support 2.5” and 3.5” hard drives
• Elevated standoff for motherboard back side components
Case Edition SG13
Case Form Factor Mini-ITX
Motherboard Form Factor
  • Mini-DTX
  • Mini-ITX
Material Steel
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 1 x 2.5"/ 3.5" Internal
Expansion Slots 2
Fan Bays 1 x 120/140mm
Fans Included None
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window No
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 61 mm
Max VGA Card Length 267 mm
Colour Black
Dimensions 222 x 181 x 285 (WxHxD mm)
Weight 2.5 kg (Approx)

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Customers also bought
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Silverstone Sugo SG13B-Q Black mini-ITX Case (Std ATX PSU) is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Good product but be aware of limitations The product is good by design, if you are planning to put hot hardware inside get the mesh front version and an all in one cpu cooler. I tried with a 980ti evga sc+, i7 4790k, 16gb ram and my gpu temps were fine in range of 70 degrees under load, however with a solid front the all in one cooler [kracker x31] struggled to keep the cpu cool even with no overclock, the two small side vents arent enough air flow. make sure you have a small psu [i used a 600w sfx from corsair] and small wires otherwise cable management is a nightmare. the ssd slot on the floor of the case is a pain to attach regular sata cable. **pros** cheap takes 10.5inch graphics cards small size **cons** metal is a bit flimsy, airflow with solid front is slightly poor maybe a way of tunnelling fresh air in would be better?. would be good if sfx bracket was included. a good case overall and cheap however some draw backs.
Date published: 2016-05-20
