Scan code: LN47455 Manufacturer code: SST-SG09B USB 3.0

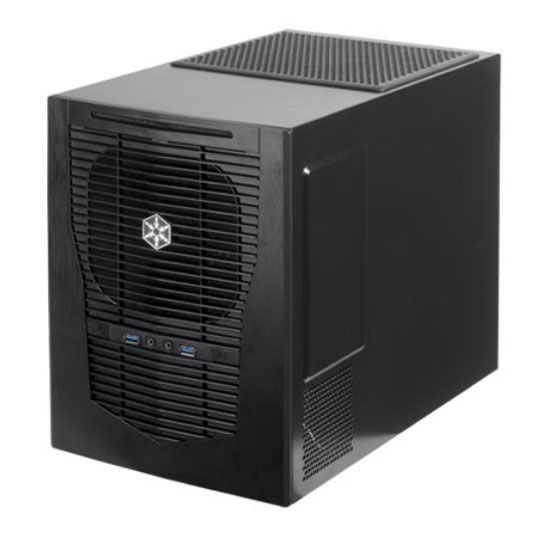

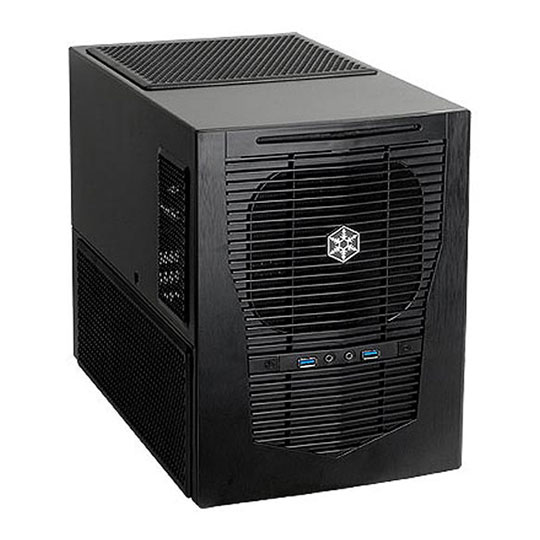

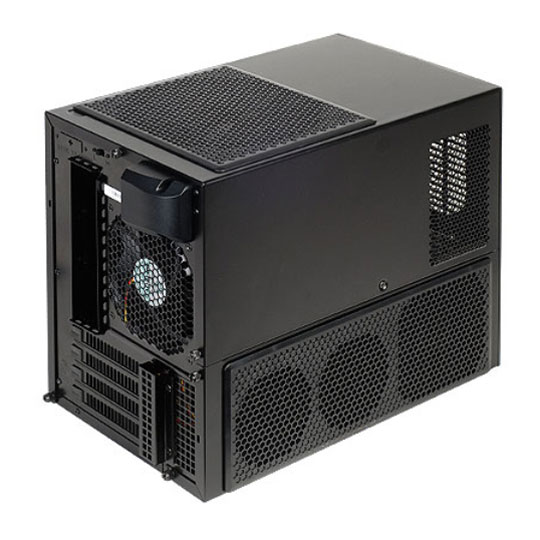

Silverstone SG09B Sugo Cube micro-ATX/ITX PC Case

Silverstone Sugo SG09B SFF micro-ATX/ITX Black Performance Case with 2xFans USB 3.0 w/o PSU (ATX)

Thumbnail 1 : Silverstone SG09B Sugo Cube micro-ATX/ITX PC Case Thumbnail 2 : Silverstone SG09B Sugo Cube micro-ATX/ITX PC Case Thumbnail 3 : Silverstone SG09B Sugo Cube micro-ATX/ITX PC Case Thumbnail 4 : Silverstone SG09B Sugo Cube micro-ATX/ITX PC Case
Scan code: LN47455 Manufacturer code: SST-SG09B USB 3.0
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Jun 2019 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview How much performance and components can you reasonably fit in a 23 liter enclosure? That was the question SilverStone engineers asked themselves when designing the ninth edition of SilverStone’s Sugo series chassis. In a very limited space of 23 liters, which SilverStone defined as the limit for classifying a chassis as small form factor or SFF, the Sugo SG09 achieved performance never before seen for a computer chassis of this size.

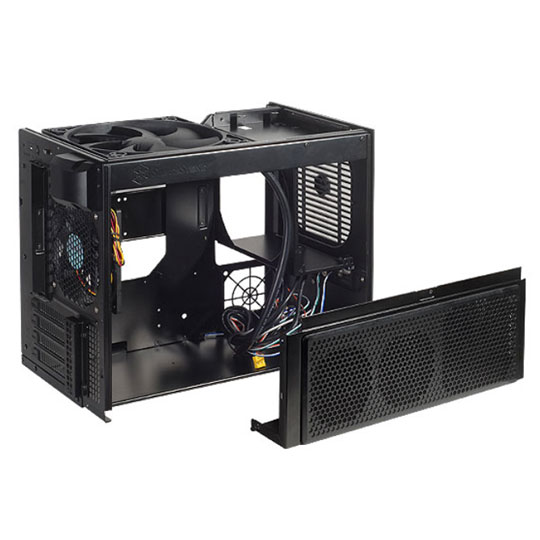

By slightly reducing storage capacity via relocation to motherboard backside mounting, the SG09 can accommodate two 13.3 inches long graphic cards with handles (longest under PCI-Express specification) with cooling provided by four fan slots. Having the power supply location moved away from above the CPU area has also increased CPU cooler’s height limit to 165mm, which is sufficient for nearly all tower CPU coolers on the market.

Designing a 23 liter chassis that can fit high-end components and cool well requires rethinking of layout that is substantially different from traditional chassis.

Even experienced computer builders are recommended to take a closer look at the included instruction manual as it contains valuable information on how to build with the SG09. Although limited in space, good cable routing is still possible by using SilverStone’s PP05 short cable kit in conjunction with the mandatory cable routing design. For those looking to challenge their own PC building skills in return for a superbly packaged machine that has uncompromised performance and is portable, the Sugo SG09 is the one to get. Features • Support graphics cards of any length.
• Support full tower CPU coolers.
• Support Strider Plus PSUs up to 1000W.
• Mandatory cable routing design.
• Ample fan slots for maximum airflow.
• Motherboard back plate opening behind CPU area for quick cooler assembly.
Core Chassis Specifications
Case Edition
Case Form Factor Mini-ITX
Motherboard Form Factor
  • DTX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 4 x 2.5" External
  • 2 x 3.5"
  • 1 x Slim Optical
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120mm
  • 1 x 180mm
  • 2 x 80/92mm
  • 1 x 80mm
Fans Included
  • 2 x 120mm
  • 1 x 180mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Max CPU Cooler Height
Max GPU Card Length
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Plastic / Steel
Dimensions 220 x 295 x 354 (WxHxD mm)
Please Note
Additional Information
Scan Code LN47455
Model Number SST-SG09B USB 3.0
GTIN 4710713969520

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

Silverstone Sugo SG09B SFF micro-ATX/ITX Black Performance Case with 2xFans USB 3.0 w/o PSU (ATX) is rated 3.0 out of 5 by 1.
Rated 3 out of 5 by from Small and beastly In terms of pure size (or lack of) this is a 5 star product. I don't know how a uATX chassis could possibly be any smaller. I found assembly pretty straight forward. I followed the guide but could have got by without it. One step suggests planning the route for the cabling. There are suggestions further back so maybe read through the guide completely before starting assembly if you are at all unsure. Unless you are trying to install two full size graphics cards (where air flow is more critical# it's not a big deal though. The PSU is mounted towards the front and the bracket allows it to be mounted such that the PSU fan can either blow into the case, for more air to the components, or out the front to get rid of that warm air pronto. I chose the latter. A connector on the back routes power to the full encased PSU. The lead is quite chunky, doesn't flex readily and exposed the coloured wires inside the chord #but not the conductors# as I was bending the cable to get the plug in. I've dropped stars for two things. 1. Weight. I'm used to nice light aluminium cases and this is considerably heavier than my midi-towers, mostly due to the wrap-around cover which needs to be steel for durability. I would have preferred separate aluminium panels. 2. Noise. Generally the first customisation I make to a case is to replace the cheap noisy fans. My main gripe here is the 180 mm top fan which looks, feels and sounds exceptionally cheap. The fins sometimes catch as it's turning making an awful racket. The only #180 mm# replacement I have found is an identical unit from Silverstone. There is an adaptor bracket supplied to allow use of a 140 mm top fan but I like forced air flow to the hard drives. Also, FWIW, there is a switch on the back of the case to reduce the top fan speed. The hard drives #and SSD's) are mounted on the opposite site of the panel that the motherboard is bolted to and airflow there doesn't look great. The manual recommends using SSD's. Once I have replaced my hard drives with SSD's, that fan is coming straight out. I'm sad I can't give this case the full five stars, it has a lot going for it. Silverstone have done a great job shrinking a PC case this much, it just needs more refinement.
Date published: 2014-12-23
