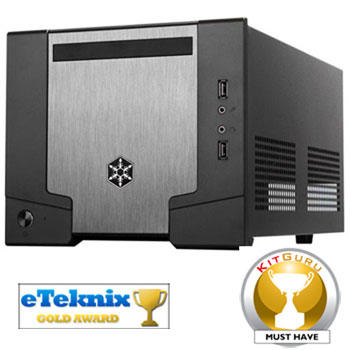

Silverstone SG07B, Sugo SFF mini-ITX, Black, with 600W PSU, 80 Plus Bronze, 2 Full Slots

Silverstone SG07B Sugo SFF mini-ITX, Black, 2 Full Slots with 600W 80 Plus Bronze PSU

Thumbnail 1 : Silverstone SG07B, Sugo SFF mini-ITX, Black, with 600W PSU, 80 Plus Bronze, 2 Full Slots Thumbnail 2 : Silverstone SG07B, Sugo SFF mini-ITX, Black, with 600W PSU, 80 Plus Bronze, 2 Full Slots Thumbnail 3 : Silverstone SG07B, Sugo SFF mini-ITX, Black, with 600W PSU, 80 Plus Bronze, 2 Full Slots Thumbnail 4 : Silverstone SG07B, Sugo SFF mini-ITX, Black, with 600W PSU, 80 Plus Bronze, 2 Full Slots

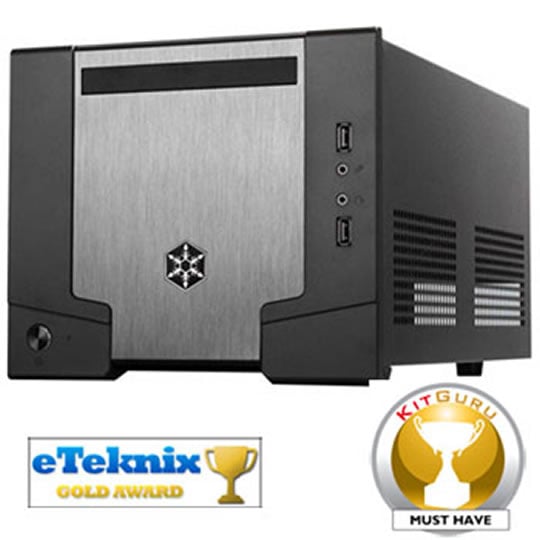

Silverstone SG07B, Sugo SFF mini-ITX, Black, with 600W PSU, 80 Plus Bronze, 2 Full Slots : image 1

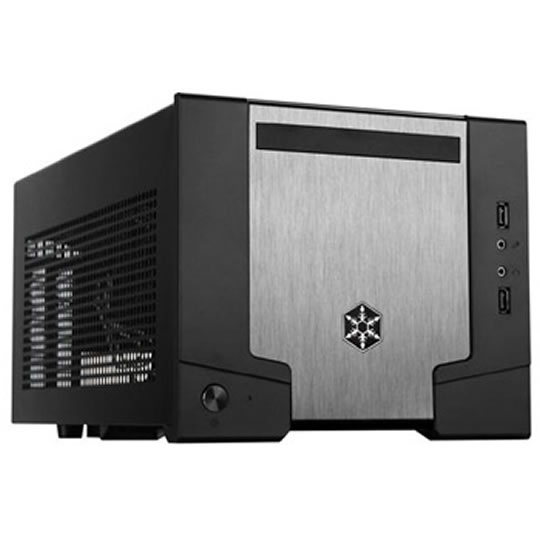

Silverstone SG07B, Sugo SFF mini-ITX, Black, with 600W PSU, 80 Plus Bronze, 2 Full Slots : image 2

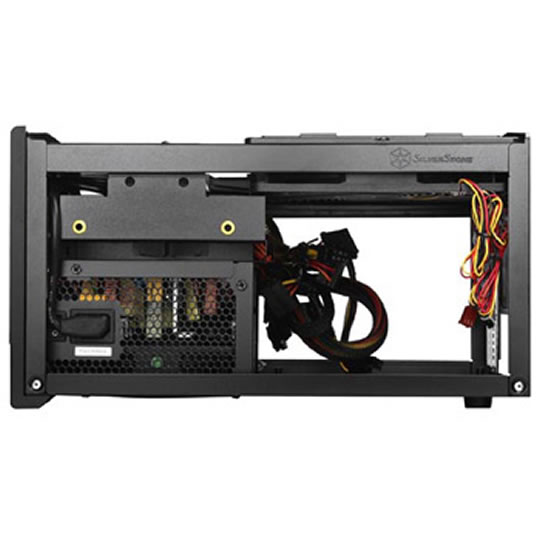

Silverstone SG07B, Sugo SFF mini-ITX, Black, with 600W PSU, 80 Plus Bronze, 2 Full Slots : image 3

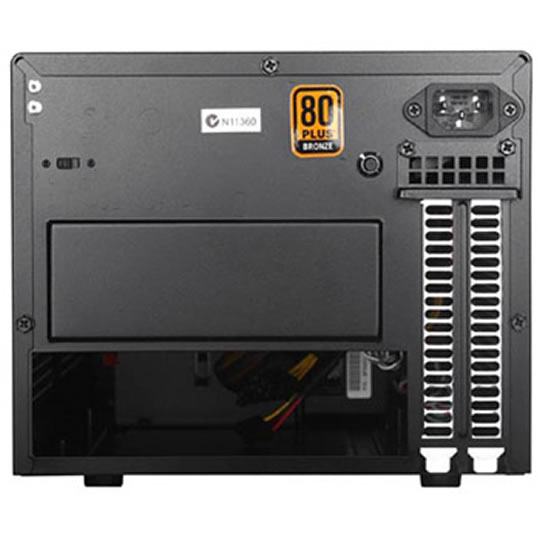

Silverstone SG07B, Sugo SFF mini-ITX, Black, with 600W PSU, 80 Plus Bronze, 2 Full Slots : image 4
Scan code: LN33218 Manufacturer code: SST-SG07B
3xs Approved
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview Finally In Stock. http://www.silverstonetek.com/products/p_photo.php?pno=SG07&area=usa

The Sugo SG07, with a size that slots in between the venerable SG01 Micro-ATX SFF case from 2005 and the SG05, a powerful Mini-ITX case released in 2009, was designed to take the Mini-ITX platform to a whole new level.

It is twice as powerful as the SG05 but only 37% bigger. Its custom 600W power supply, which is rated up to 50?with 80 PLUS Bronze level efficiency and single +12V rail, was carefully chosen and optimized for SG07.

Exhaustive testing was conducted to create unique VGA fan duct and exhaust vents that enable SG07 to not only accommodate the longest consumer graphics cards physically (up to 12.2 inches/310mm) but also capable of supporting graphics thermal profile of up to 400W through overclocking. For the CPU and motherboard area, a record-breaking use of 180mm fan (bigger than the Mini-ITX motherboard!) with vortex generating design was utilized to provide possibility of fanless CPU cooling of up to 95W (via CPU cooler such as SilverStone’s NT06-E). But despite having tremendous amount of cooling performance, the SG07 is easy to maintain as well. It employs positive pressure layout with all intake areas fitted with removable filters so dust will not accumulate inside. If the goal is to make the ultimate Mini-ITX system, the SG07 is hard to beat.

Support graphics cards up to 12.2 inches and 400W
AMD Radeon HD 5970 – 12.2"
AMD Radeon HD 5870 – 11"
NVIDIA GeForce GTX480 – 10.5"
AMD Radeon HD 5850 – 9.5"
NVIDIA GeForce GTX470 – 9.5" Features • Class leading SFF chassis with 180mm fan and positive pressure cooling
• Ample space for CPU cooling (117mm in height)
• Elevated standoff for motherboard back side components
• Support for two 2.5” SSD/hard drives and one 3.5” hard drive
• Includes 80 PLUS Bronze certified [email protected]? PSU with single +12V rail
• Adjustable VGA fan duct for improved cooling efficiency
• Removable fan filters included for case fan, PSU, and VGA duct
• Support graphics cards up to 12.2 inches and 400W

Model No.
SST-SG07B(black)
Material
Plastic front panel with aluminum plate, SECC body
Motherboard
Mini-DTX, Mini-ITX Multimedia

Drive Bay
External Slim optical x 1

Internal 3.5” x 1 , 2.5”x 2
Cooling System
Front --
Rear --
Side VGA fan duct with oversized vents
Top 180mm Air Penetrator 700/1200rpm, 18/34dBA
Bottom PSU intake vents and VGA exhaust divider
Internal --
Expansion Slot 2

Front I/O Port
USB2.0 x 2
Audio x 1
MIC x 1
Power Supply
Custom 600W with 80 PLUS Bronze certification and single +12V rail
Operating system support
--
Expansion Card
Support expansion cards up to 12.2 inches
Limitation of CPU cooler
117mm
Limitation of PSU
140mm (remove VGA Card if you want install up to 170mm)
Net Weight
4.90 kg
Dimension
222 mm (w) x 190 mm (h) x 350 mm (d)
Extra

Power supply type SST-ST60F-SG
Max. DC Output 600W
Load Range
+3.3V +5V +12V1 +12V2 +12V3 +12V4 +5VSB -12V -5V
Max.(Amps) 25A 25A 46A / / / 3.0A 0.8A /
Min.(Amps) 0.8A 0.5A 4A / / / 0.1A 0A /
Range (%) +/-5% +/-5% +/-5% / / / +/-5% +/-10% /
Ripple(mVp-p) 50mV 50mV 120mV / / / 50mV 120mV /

combined +3.3, +5V 140W
combined +12V 46A / 552W
Input Voltage 90V ~ 265V(Auto Range)
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF>0.95 at full load)
Efficiency 82%~85% at 20%~100% loading
MTBF 100,000 hours at 25°C, full load
Operating temperature 0 ~ 50°C
Protection Over Current Protection
Over power Protection
Over Voltage Protection
Under Voltage Protection
Short Circuit Protection
Connectors 1 x 24 / 20-Pin Motherboard connector (670mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (670mm)
1 x 8/6-Pin PCIE connector (360mm)
1 x 8/6-Pin PCIE connector (380mm)
3 x SATA connector (350mm + 130mm + 150mm)
2 x 4-Pin Peripheral connector (350mm + 100mm)
Color Black (Lead-Free Paint)
Cooling System Single 120mm fan
Noise Level 19 dBA - 30dBA
Dimension 150 mm (W) x 86 mm (H) x 140 mm (D)
Weight 940g
Form factor ATX PS/2
Certification 80 PLUS Bronze
