Scan code: LN51487 Manufacturer code: SST-ML05B USB 3.0

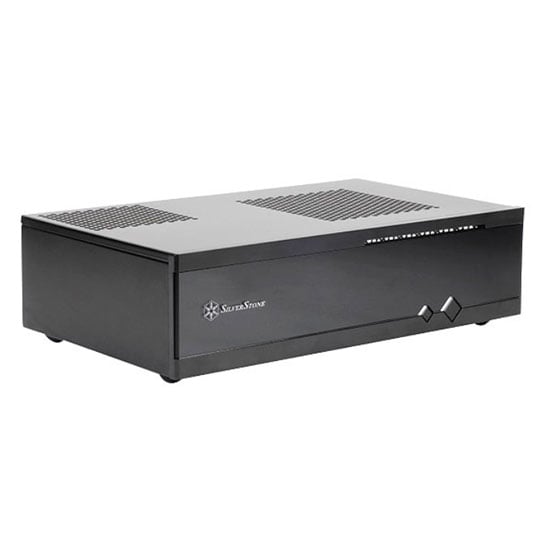

Silverstone Milo Slim Mini ITX HTPC Desktop Case

Silverstone ML05B USB 3.0, Milo Slim HTPC, mini-ITX, Black, w/o PSU

Thumbnail 1 : Silverstone Milo Slim Mini ITX HTPC Desktop Case Thumbnail 2 : Silverstone Milo Slim Mini ITX HTPC Desktop Case Thumbnail 3 : Silverstone Milo Slim Mini ITX HTPC Desktop Case Thumbnail 4 : Silverstone Milo Slim Mini ITX HTPC Desktop Case
Scan code: LN51487 Manufacturer code: SST-ML05B USB 3.0
£41.48
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 12th Dec 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview Continuing with the popular slim form factor HTPC, the Milo ML05 HTPC case is the smallest in the Milo series to-date and yet still able to fit modern day components. Although measuring only 7 litters in size, it can accommodate Mini-ITX motherboard, SFX power supply and install up to four 2.5” hard drives. An innovative multipurpose 4-in-1 bracket also allows installation of a slim optical drive, a 3.5” hard drive, two 2.5” drives, or a 120mm fan depending on user’s requirement. Complementing a superbly compact design is a beautiful acrylic front panel that seamlessly integrates into home theatre environments, making ML05 the best petite HTPC case on the market.

• Super small at only 7 litters.
• Support up to two 80mm fans.
• Multipurpose 4-in-1 bracket.
• Support Mini-ITX motherboard and SFX power supply.
• Support four 2.5” HDD/SSD. Features Model No. SST-ML05B (black)
--
--
--
Material Acrylic and plastic front panel, 0.8mm steel body
Motherboard Mini-ITX
Drive bay External 9.5mm/12.7mm slim slot-loading optical drive x 1 (replaceable with 3.5” HDD x 1 or 2.5" HDD x 2 or 120mm fan x 1)
None
Internal 2.5" x 4
Cooling system Front --
Rear --
Side Right: 2 x 80mm fan slot
Top 120mm fan slot / oversized PSU vents
Bottom --
Internal --
Expansion slot 1
Front I/O port USB 3.0 x 2
audio x 1
MIC x 1
Power supply 1 x Optional standard SFX
Expansion card 1x low profile width restriction-2.95" (74mm)
Limitation of CPU cooler 37~70mm
Limitation of PSU SFX
Net weight 2.1kg
Dimension 350mm (W) x 99 mm (H) x 204 mm (D), 7 liters
13.78" (W) x 3.9" (H) x 8.03" (D), 7 liters
Extra Support Kensington locks
Specifications
Core Chassis Specifications
Case Edition Milo
Case Form Factor HTPC
Motherboard Form Factor Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 4 x 2.5" Internal
  • 1 x Slim Optical
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 120mm
  • 2 x 80mm
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel
Dimensions 350 x 99 x 204 (WxHxD mm)
Weight 2.1 kg (Approx)
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan Computers International Limited
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Reviews
Silverstone ML05B USB 3.0, Milo Slim HTPC, mini-ITX, Black, w/o PSU is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Good HTPC case - cable management is tricky This is my first HTPC build, this time for a Hackintosh, and overall I am happy with the ML05. There are plenty of reviews out there for you to google, I suggest you do before you buy this case - most of them are accurate. Cable management is tricky, especially the USB3 cable for the front USB3 socket panel - the cable is a bit too long and VERY stiff, and a bit tricky to manage... especially with fans on the side and using the multi-function bracket. I am using a Gigabyte GA-Z87N-WIFI board, with an i5 with this case, and the airflow is a bit tricky especially with a DVD drive attached underneath the multi-function bracket. The stock intel cooler simply won't cool the CPU in this case (and sounds like an airplane), so I went for a Noctua NH-L9i (also from Scan) which does the job very well and is very quiet. For extra system cooling, I also installed 2 Be Quiet 80mm PVM fans, which significantly help (and are inaudible), and are easy to install on the right side of the ML05. I combined the case with a 300W Silverstone ST30SF Strider SFX power supply, also from Scan. It fits perfectly in this case. I am very happy with this case, but did struggle a bit with cables - but I suspect most HTPC cases would also cause me to utter a few choice words while putting a system together!
Date published: 2014-09-02
  • y_2018, m_12, d_9, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_51487, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

how strong is this case?

I'm wondering if I would be able to site a monitor on top of it?
Asked by: wizzer59
Monitors don't really weigh a great deal, so in theory yes. However I'd highly advise you not to, as your PSU intake AND CPU cooler intake vents are on the top. I found blocking the main top vent by installing a slim-slot-load dvd drive to the bracket really restricted cool air being drawn by my cpu cooler as it is.
Answered by: DBofficial
Date published: 2016-01-03

Is this compatible with VESA mounts?

Asked by: Challener
Hello, There is no VESA mount on this unit. Regards,
Answered by: JackB
Date published: 2018-01-31

Motherboard types

Can I fit a micro atx motherboard in this case?
Asked by: Aza466
Hello, This case is only designed to hold a mini-ITX sized motherboard. Regards,
Answered by: JackB
Date published: 2017-06-13

Concerning the Slots for the 80mm fans.

Would these fans need to bring air inwards or push it outwards? I would assume inward given that the CPU fan will be pushing air out through the upper grid, but I just wanted to double check this.
Asked by: Dannekoon
Hello, The air configuration can be configured to your personal choice. Regards,
Answered by: LizN
Date published: 2016-07-02
  • y_2018, m_12, d_9, h_14CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_4
  • loc_en_GB, sid_51487, prod, sort_[SortEntry(order=LOCALE, direction=DESCENDING), SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_scan
