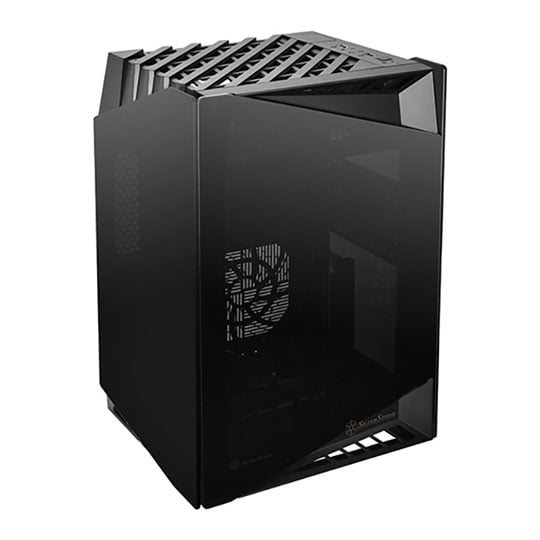

SilverStone Lucid Tempered Glass Mini-ITX PC Gaming Case
SilverStone Lucid LD03B Mini Gaming Chassis, Tempered Glass, 2x 120mm Fans, USB 3.0, Mini-ITX/Mini-DTX
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Provide low-key overall look but with enough transparency to show off your unique system build.
Stack Effect Design
With motherboard rotated 90 degrees, cool air can flow smoothly from the bottom up for the most efficient heat dissipation to all important heat-generating components.
Combining Advanced Engineering with Precision Manufacturing
Exclusive tool-less buckle design makes front panel and side panels removal easier than ever. Exterior also looks sharper and cleaner as a result of no exposed screws.
Modest Size, Extraordinary Accommodation
LD03’s generous interior space means there is nearly no limit in what you can build into it.
Modest Size, Extraordinary Accommodation II
Supports various high-end graphics cards
Quick Access to all Removable Filters
Filters are made of fine nylon mesh to catch dust effectively without airflow performance penalty. They are easy to remove to help you better maintain your system. Features • Tinted tempered glass panels for reserved or expressive styling.
• Super mini footprint design with no cables and vents on four sides for excellent integration into any computing environment.
• Includes two 120mm fans for excellent airflow and supports up to two 120mm radiators.
• Supports 2.5” and 3.5” drives.
• Mini-DTX / Mini-ITX motherboard & SFX / SFX-L PSU compatible.
• Supports full size CPU cooler and graphics cards.
|Core Chassis Specifications|
|Case Edition||Lucid LD03B|
|Case Form Factor||Mini-ITX|
|Motherboard Form Factor||
|I/O, Bays & Expansion|
|Front/Side/Top Panel I/O||
|Standard Expansion Slots||2|
|Vertical Expansion Slots|
|Fans & Filters|
|Fan Bays||2 x 120mm|
|Fans Included||2 x 120mm|
|Liquid Cooling Support|
|Front Radiator Compatibility|
|Top Radiator Compatibility||1 x 120mm|
|Bottom Radiator Compatibility||1 x 120mm|
|Rear Radiator Compatibility|
|Side Radiator Compatibility|
|Max CPU Cooler Height||190 mm|
|Max GPU Card Length||309 mm|
|Max GPU Card Width||167 mm|
|Cable Routing Space|
|Window Construction||Tempered Glass|
|LED Lighting Functionality|
|LED Lighting Emitters|
|LED Lighting Colour|
|LED Lighting Support & Control|
|Power Supply Compatibility|
|PSU Wattage (If Included)|
|PSU 80+ Rating (If Included)|
|PSU Mounting Location||Bottom Mount, Rear|
|Max PSU Length|
|Chassis Physical Specifications|
|Chassis Contruction Materials||Steel|
|Dimensions||265 x 414 x 230 (WxHxD mm)|
|Weight||5.34 kg (Approx)|
