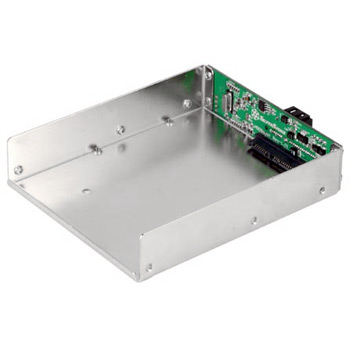

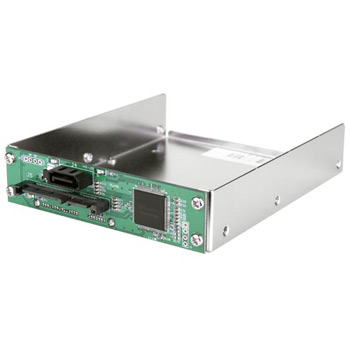

Silverstone HDDBOOST for 2.5" SATA SSD - Increase Performance by 70% on your Normal HDD
HDDBOOST is a unique product that combines the best qualities of traditional hard drive and solid state disk (SSD) into one virtual super storage solution.
Depending on the speed of the SSD added, the HDDBOOST can increase the performance of an existing host hard drive up to 70%(*)! This speed increase is very noticeable and significant for any PC users that have not experienced using SSD drives before.
For those who are not ready to compromise on storage capacity and reliability for speed, HDDBOOST will enable SSD speed on its host hard drive and reduce the write times to SSD’s more fragile flash-based storage system, thus extending its effective lifetime.
*base on SSD performance
Boost your original system HDD read speed without reinstalling OS
Minimum SSD data write times help extend SSD life-cycle
Easy to install
Compatible with most of 2.5” SATA SSD
http://www.silverstonetek.com/products/p_spec.php?pno=HDDBOOST&area=usa Features Model No. SST-HDDBOOST
Enclosure material 1.0 mm SPCC with Nickel Plating
Power requirement +5V in from PC power supply
Interface SATA 3Gbps
Application 3.5” Internal hard drive bay
SDD Support 2.5" SATA interface
Operating system support Any OS with SATA interface support
HDD interface support 3.5” Internal hard drive bay
Controller Board Dimension 98.6x24.5x1.6mm
Enclosure interface 1 x 7 pin SATA connector to motherboard.
1 x 7 +15 pin SATA + Power connector to system hard drive and power.
1 x USB connector (For firmware upgrade only)
Net Weight 160g±10g
Dimension 130.5mm(W) x 101.6mm(D) x 25.4mm(H)
