Scan code: LN83128 Manufacturer code: SST-ECP01

SilverStone Dual Output Power Adapter Card

SilverStone ECP01 Dual Output Power Adapter Card with 12V DC jack and 5V USB Type A port, OCP, support

MORE INFO

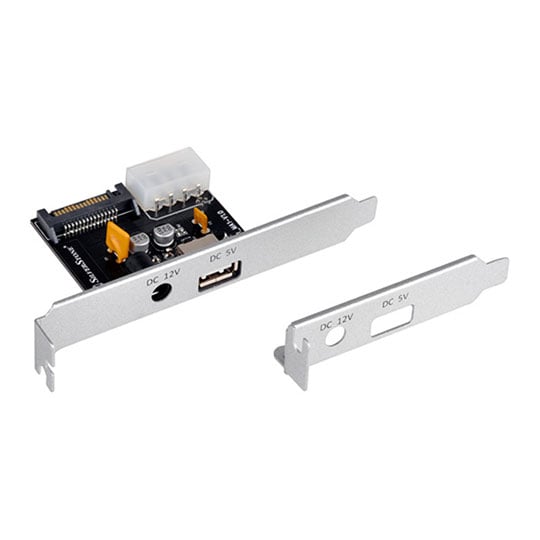

Thumbnail 1 : SilverStone Dual Output Power Adapter Card

SilverStone Dual Output Power Adapter Card : image 1

zoom

Scan code: LN83128 Manufacturer code: SST-ECP01

Share Facebook Twitter Google Reddit Pinterest LinkedIn

£7.99

Add To Basket

In stock

spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

Delivery Options

By DPD On 17th Dec To 19th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

Services

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

Product Overview SilverStone’s ECP01 is a dual output power adapter card that can transfer a computer’s internal power to external 12V DC jack and 5V USB Type-A port via peripheral 4-Pin or SATA 15-Pin connectors. This adds flexibility to your PC in being able to support additional power to devices such as external drives or USB chargers.

ECP01’s DC jack connector can provide 12V up to 5A and its USB Type-A port can support 5V up to 3A.

It is also complaint with USB battery charging specification 1.2 so it can charge mobile devices quickly while the built-in over current protection mechanism helps to ensure connected devices are well protected when charging.

Features • Dual output 12V DC jack up to 5A and 5V USB Type-A port up to 3A.
• USB port compliant with USB battery charging specification 1.2.
• Intelligent over current protect system.
• Includes DC to DC cable with 1.2m length, DC dim 2.5mm to DC dim 2.1mm Power Plug Adapter.
• Includes optional low profile bracket for supporting low profile cases .

Specifications
• Model No.: SST-ECP01
• Input connector and current: Peripheral 4-Pin female connector x 1 (12V/5A) or SATA 15-Pin female connector x 1 (12V/5A)
• Output connector and current: DC jack connector x 1 (12V/5A), USB Type-A female connector x 1 (5V/3A)
• Intelligent Security Protection: Over current protection
• Cable length and specifications: DC plug 1.2m cable with 18 AWG x 1 and OD 3.5mm DC dim 2.5mm to DC dim 2.1mm adapter
• Net weight: 35g
• Dimension: 120mm (W) x 21mm (H) x 53mm (D), 4.72" (W) x 0.83" (H) x 2.09" (D)
• Remark: Prior to installing ECP01, please calculate your computer’s total power consumption to determine if you have enough power to support this card. You should set aside 75W and a dedicated cable to connect directly from the power supply to ECP01. The cable used on the ECP01 should not be shared with any other components in the PC.

Specifications
Interface
Connectivity	1 x SATA 1 x USB Type-A (Female)

Additional Information
Scan Code	LN83128
Model Number	SST-ECP01
GTIN	4710007223734
