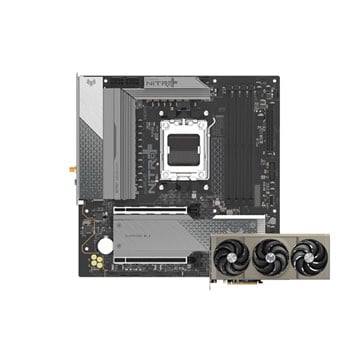

Sapphire AMD Radeon RX 9070 XT NITRO Sapphire NITRO+ B850M WIFI Motherboard Bundle

Sapphire NITRO+ B850M WIFI Motherboard with Sapphire AMD Radeon RX 9070 XT NITRO+ GPU Bundle

NITRO+ Charged for Gamers

The NITRO+ B850M WIFI is a micro-ATX motherboard built on the AMD B850 chipset, delivering AM5 performance in a more compact footprint. With support for Ryzen 7000, 8000, and 9000 Series desktop processors, it provides a focused platform for high-performance gaming systems where space efficiency matters.

Power for Performance

A 12+2+1 phase power design with durable NITRO+ capacitors and high-strength PSU connectors delivers clean, reliable power to the CPU and supporting components, ensuring stability during intensive workloads and high-frequency operation.

Memory Performance Boost

Four DDR5 DIMM slots support dual-channel DDR5 memory with speeds up to 8000 MT/s (OC), a maximum capacity of 192GB (4×48GB), and EXPO and XMP profile support, enabling high-frequency memory configurations on the AM5 platform.

Versatile Expansion

Expansion includes one PCIe 5.0 x16 slot for graphics cards and one PCIe 4.0 x4 slot for add-in cards, delivering flexibility within the constraints of a micro-ATX layout.

Signature NITRO+ Design

The NITRO+ features a bold black PCB with grey geometric heatsinks, combining aggressive aesthetics with structured thermal coverage for visually striking, thermally efficient builds.

Future-Oriented Storage

Storage options include one PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot, both supporting 2280 and 2242 form factors, alongside four SATA 3.0 ports rated at 6 Gb/s for additional drives.

Realtek Audio & Networking

The board features Realtek ALC897 audio supporting up to 7.1-channel HD output, and Realtek RTL8125BG network connectivity delivering 2.5Gb wired Ethernet for high-throughput, low-latency networking.

ARGB and Cooling

Cooling and lighting connectivity includes one CPU fan header, one AIO pump header, three system fan headers, three 5V ARGB headers, and one 12V RGB header, enabling coordinated airflow and lighting control across compatible components.

Wireless Connectivity

The onboard Wi-Fi 6 module supports 802.11 a/b/g/n/ac/ax standards across 2.4GHz and 5GHz bands, with Bluetooth 5 support and dual antenna connectors for stable wireless performance.

Durable Ports

Rear I/O includes DisplayPort and HDMI outputs, three USB 3.2 Gen2 Type-A ports, one USB 3.2 Gen2 Type-C port, four USB 2.0 ports, RJ45 LAN, three audio jacks, and Wi-Fi antenna connectors. Internal headers expand USB and front-panel connectivity.

Troubleshoot Easily

Onboard diagnostic LEDs provide clear startup feedback, with dedicated indicators for CPU (red), DIMM (yellow), GPU (white), and BOOT (green). Additional headers support BIOS flashing, CMOS clearing, diagnostic cards, and system servicing.

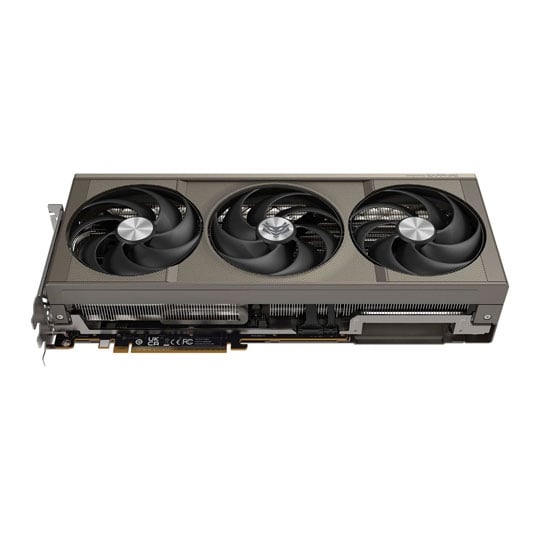

SAPPHIRE NITRO+ AMD Radeon™ RX 9070 XT

The Sapphire Nitro+ AMD Radeon RX 9070 XT is a premium graphics card designed for enthusiast gamers, offering exceptional performance, it's powered by AMD's latest RDNA 4 architecture. Featuring 16GB of GDDR6 memory, a boost clock of up to 3060 MHz, and 64MB of AMD Infinity Cache, capable of delivering smooth gameplay at 4K and 1440p resolutions. This card incorporates Sapphire's advanced Tri-X Cooling Technology with AeroCurve Fan Blade design and a dual-layer metal backplate for efficient cooling, durability and improved cable management. With PCIe 5.0 support, AMD FidelityFX Super Resolution 4 compatibility, and versatile connectivity options (2x HDMI 2.1, 2x DisplayPort 2.1a), the Nitro+ RX 9070 XT is the perfect choice for gamers seeking cutting-edge performance and reliability in their gaming rigs.

Honeywell PTM7950 TIM

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium cooling solution for high-performance electronics, particularly in demanding applications like graphics processing units (GPUs). With exceptional thermal conductivity, it enhances heat dissipation, ensuring improved reliability and longevity of graphics cards by maintaining optimal thermal performance under rigorous conditions.

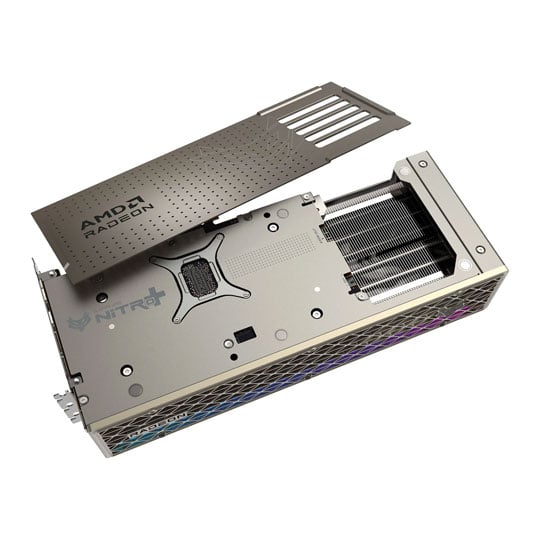

Quick Connect MagniPlate

The magnetic backplate on the graphics card combines efficient design with practical functionality. Engineered for effortless installation, its magnetic attachment ensures a secure fit while enhancing heat dissipation and overall durability. This feature not only protects your graphics card but also elevates your build with a clean, modern aesthetic-perfect for gamers and creators who demand performance and style.

AeroCurve Fan Blade

Sapphire's latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range whilst working to maintain low noise levels. This refined design ensures improved airflow, optimised static pressure, and enhanced cooling efficiency for demanding applications.

Effective Cable Management

An intuitive hidden power connection feature seamlessly conceals external power cables, delivering a clean and clutter-free look for your build. Designed for maximum aesthetics and organization, it ensures your graphics card stands out without any visible distractions-perfect for showcasing a sleek, professional setup.

FrameDefense

The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure.

Cold-Rolled Steel Frame
The NITRO+ AMD Radeon™ RX 9070 XT also boasts a Cold Rolled Steel Frame that fortifies the shroud structure and durability.

Integrated Cooling Module

Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability.

Free Flow

The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimises airflow paths. By reducing turbulence and channelling air efficiently, it maximises heat dissipation, ensuring consistent performance even under heavy thermal loads.

Impressive Thermal Management

Quick-Conntect Fans
If there's a fan problem, you don't have to return the entire card. SAPPHIRE or their channel partners will send out a replacement fan directly to you! That means they're easy to remove, clean and replace, with just one screw holding them securely in place.

Optimised Composite Heatpipe
The composite heatpipes are fine-tuned for maximum thermal efficiency and optimal heatflow.

Tri-X Cooling Tech
An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections

Tunnelled fins increase convection airflow and ensure wind continuously flows through the cooling and fan system

Heat is dissipated by a trio of large, efficient fans running anticlockwise to maximise airflow.

L-Shape Graphics Card Supporter

The L-Shaped Graphics Card Holder is a versatile solution designed to secure heavy GPUs, prevent sagging, and simplify removal of the graphics card from the PCIe slot during upgrades or maintenance. Crafted from durable materials with a sleek design, it ensures stability, longevity, and seamless integration into any modern PC build.

A Touch of Personality

With a tasteful shroud design augmented by ARGB LEDs, you can change the colours of the LED to suit your needs.

This can be controlled via The Sapphire TriXX software. Choose from different modes including the colourful rainbow mode or turn off the LEDs.

Sapphire NITRO+ B850M WIFI MicroATX Motherboard

• mATX board supporting AMD Socket AM5 processors including Ryzen 7000, 8000, and 9000 Series desktop CPUs.
• Built on the AMD B850 chipset with a 12+2+1 phase power delivery design featuring durable NITRO+ capacitors and high-strength PSU connectors.
• Four DDR5 DIMM slots support dual-channel memory with speeds up to 8000 MT/s (OC), EXPO and XMP profiles, and a maximum capacity of 192GB (4×48GB).
• Expansion includes one PCIe 5.0 x16 slot and one PCIe 4.0 x4 slot for graphics cards and add-in devices.
• Storage support includes one PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot, both supporting 2280 and 2242 form factors, plus four SATA 3.0 ports at 6 Gb/s.
• Display outputs include one DisplayPort interface and one HDMI interface.
• Rear I/O includes three USB 3.2 Gen2 Type-A ports, one USB 3.2 Gen2 Type-C port, four USB 2.0 ports, one RJ45 LAN port, three audio jacks, and dual Wi-Fi 6 antenna connectors.
• Internal headers provide additional USB 2.0 expansion, USB 3.2 Gen1 Type-A ports, and a USB 3.2 Gen1 Type-C port.
• Realtek ALC897 audio supports up to 5.1-channel HD sound output.
• Realtek RTL8125BG network controller delivers wired Ethernet connectivity up to 2.5Gb.
• Integrated Wi-Fi 6 module supports 802.11 a/b/g/n/ac/ax standards across 2.4GHz and 5GHz bands with Bluetooth 5 support.
• Fan and lighting support includes one CPU fan header, one AIO pump header, three system fan headers, three 5V ARGB headers, and one 12V RGB header.
• Onboard diagnostic LEDs provide status indicators for CPU, DIMM, GPU, and BOOT stages.

Sapphire AMD Radeon RX 9070 XT NITRO+ 16GB Graphics Card

• GPU: Boost Clock: Up to 3060 MHz
• GPU: Game Clock: Up to 2520 MHz
• Memory: 16GB/256 bit DDR6
• PCIe 5.0 x16
• Stream Processors: 4096
• AMD RDNA™ 4 Architecture
• Ray Accelerator: 64
