Sapphire PULSE A620AM AM5 DDR5 PCIe 4.0 MicroATX Motherboard

Sapphire PULSE A620AM, AMD A620A, AM5, DDR5, PCIe 4.0, 2x M.2, GbE, USB 3.2 Gen1, PS/2, mATX
MORE INFO
MORE INFO

Scan code: LN167679 Manufacturer code: 52118-03-40G
£69.98
£5.48 Next day delivery
Order in the next 1 hr 56 mins and get it tomorrow
Add To Basket
Get it Tomorrow, 24 JunIn stock
Pay in 3 interest-free payments of £23.33

Email me when the availability or price changes

  • By DPD On 24th Jun Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Frequently Bought Together

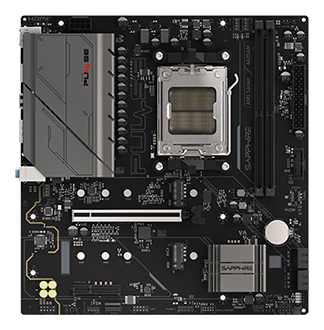

PULSE A620AM AMD AM5 Micro-ATX Motherboard from Sapphire

PULSE A620AM AMD AM5 Micro-ATX Motherboard from Sapphire

Reliable Power, Ready to Play. SAPPHIRE PULSE A620AM is a compact micro-ATX AM5 motherboard designed for modern Ryzen 9000, 8000 and 7000 Series desktop processors, delivering stable performance for gaming and everyday PCs. It offers a robust 6+2+1 phase VRM with dedicated cooling, dual-channel DDR5 support up to 64 GB and 7600 MHz (OC), plus PCIe 4.0 x16 and PCIe 4.0 M.2 for fast graphics and storage. With HDMI and DisplayPort outputs, Realtek ALC897 5.1 audio and ample USB connectivity, it balances reliability, efficiency and essential features in a streamlined design.

AMD® A620AChipset

AM5CPU Socket

Ryzen™ 9000/8000/7000 SeriesProcessors

mATXForm Factor

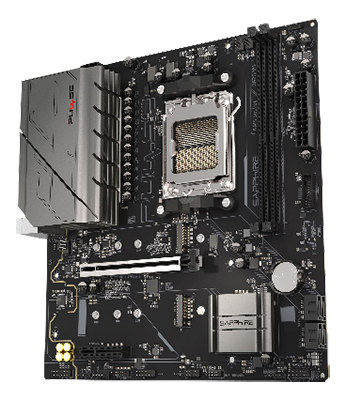

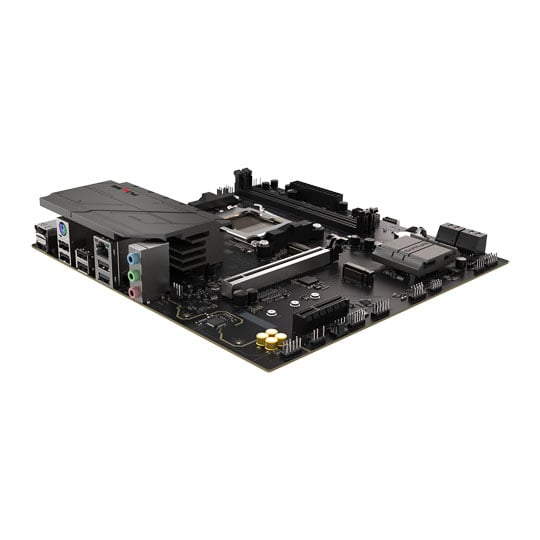

Hero angle of the PULSE A620AM motherboard.

Essential Performance, Exceptional Value Sapphire Pulse A620M THE HEART - THE BEAT - THE GAME

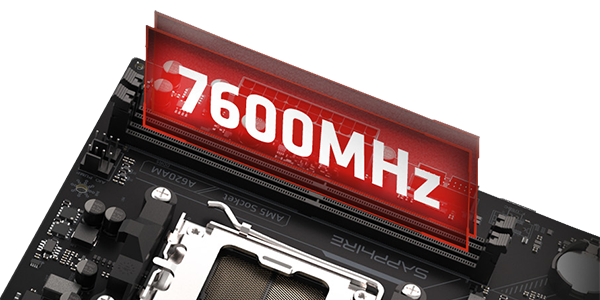

PULSE A620AM motherboard with 7600 Mhz overlaying the memory slot.

Dual Memory Slot Design Optimised for overclocking, delivering higher frequencies with greater stability — performance at your command.

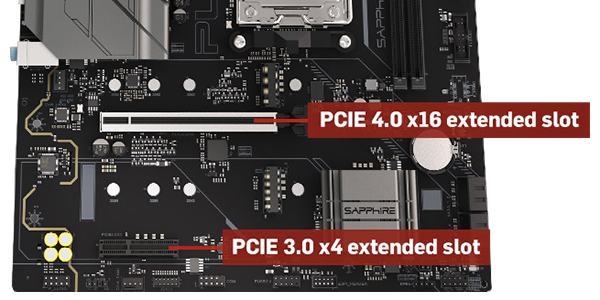

PULSE A620AM motherboard, highlighting PCIe 4.0/3.0 slots.

High-Speed Expansion Features dual PCIe slots, with the primary slot supporting PCIe 4.0 x16 — ready for the latest high-performance graphics cards.

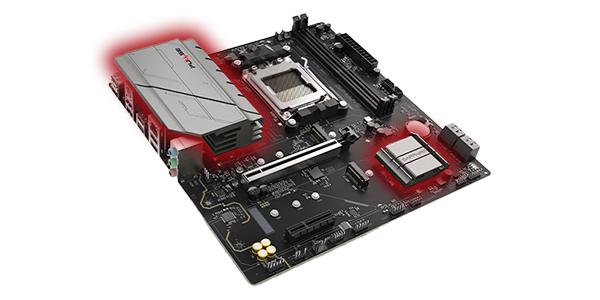

PULSE A620AM motherboard with red highlights around its heatsink and VRM cooling armour.

Built for Stability Optimised for Ryzen™ 9700X/9800X3D, ensuring stable performance without thermal throttling. The PULSE heatsink armour delivers precise, high-efficiency cooling for both VRM and chipset. It also features four dedicated fan headers, allowing users to fine-tune and expand their cooling configuration.

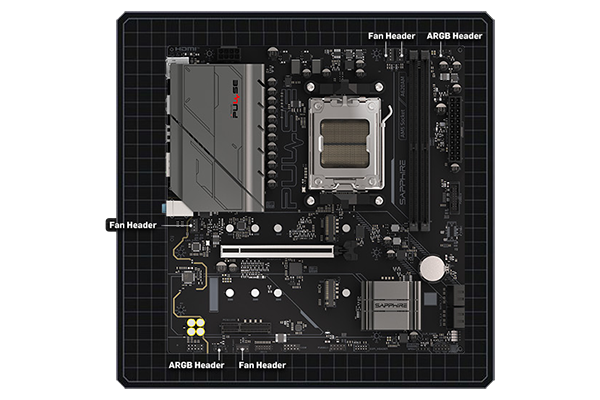

PULSE A620AM motherboard, highlighting dynamic lighting effects.

Dynamic Lighting Effects Features four fan headers and a 5V ARGB connector, with support for TriXX-M software and Windows 11 Dynamic Lighting for flexible, customisable case illumination.

Durable Design & Versatile Connectivity

Outputs ESD protection and moisture-resistant stainless steel ensure long-lasting reliability, while rich I/O ports give you the flexibility to build your ultimate gaming setup.

Rear IO of PULSE A620AM motherboard.
DP Interface
PS/2 Interface
Network Interface
HDMI Interface
USB 2.0 x2
USB 2.0 x2
USB 3.2 x2
Audio Interface
DP Interface
PS/2 Interface
Network Interface
HDMI Interface
USB 2.0 x2
USB 2.0 x2
USB 3.2 x2
Audio Interface
Specifications
Core Specifications
Edition PULSE A620AM
Form Factor MicroATX
CPU Socket AM5
Chipset AMD A620A
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) RDIMM (Registered)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio Realtek ALC897 5.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x4
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable RGB LED 5V Connector
  • 1 x BIOS Flashback connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 235 mm
Note
Additional Information
Scan Code LN167679
Model Number 52118-03-40G
GTIN 4895106296879
